Wireless Thermocouple/RTD Monitoring and Logging System |
| UWTC&RTD Series |
|
 |
|
|
|
|
|
¥
2,890.00

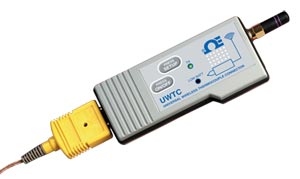

UWTC-2
|
| • |
Wireless thermocouple sensor and RTD FCC Compliant (all versions)
|
| • |
User Configurable For Type J, K, T, E, R, S, B, N, C Thermocouple Input and RTD Input
|
| • |
Ease of Use and Plug and Play
|
| • |
Free TC Central Software Converts Your PC Into a Multi- Channel Real Time Monitor, Chart Recorder or Data Logger
|
| • |
One Receiver Works Up to 48 Wireless Remote Transmitter /Connectors
|
| • |
Low Power Operation and Sleep Mode For Long Battery Life
|
| • |
Built-In Cold Junction Compensation and Linearization
|
| • |
Unique Design Accepts Both Miniature and Standard Size Probes and Connectors
|
| • |
Each Wireless Connector Transmits Thermocouple Temperature, Ambient Temperature, Signal Strength and Battery Status in Real Time
|
View related products - Wireless Sensors, Transmitters, Receivers, Meters & Controllers
|
| |
|
|
|
 |
 Omega's Wireless
RTD & Thermocouple Transmitter/Connector Series
features stand-alone, compact,
battery powered thermocouple & RTD
connectors that transmit their
readings back to a host receiver up
to 120 m (400') away.
Each unit can be programmed in the
field to work as a type J, K, T, E, R,
S, B, N or C calibration connector or RTD inputs.
When activated the transmitter/connector will
transmit readings continuously at
pre set time interval that was
programmed by the user during the
initial setup.
Each transmitter measures
and transmits: Thermocouple/RTD Input
Reading, Connector Ambient
Temperature, RF Signal Strength
and Battery Condition to the host
and is displayed on the PC screen
in real time using the provided
software. When used with host
receiver UWTC-REC1 data
from up to 48 wireless thermocouple
connectors can be received and
displayed.
The UWTC RTD and thermocouple transmitter includes free
software that converts your PC into
a strip chart recorder or data logger
so readings can be saved and later
printed or exported to a spread
sheet file. When used with host
Transceiver UWTC-REC2
wireless data from one connector
can be re-transmitted out of the
receiver by a wired connection as an
analog voltage or current to interface
with a controller, PLC or data
acquisition board.
More receivers information is available as the following:
ZW-REC: 127-channel wireless receiver with Ethernet for web-based monitoring
UWTC-REC1: 48-channel wireless receiver with USB
UWTC-REC2: 48-channel wireless receiver with USB and single analog output
UWTC-REC4: 48-channel DIN rail mount wireless receiver with USB and four analog output signals
Specifications Thermocouple (TC) Input
Software Selectable: J, K, T, E, R, S, B, C or N Thermocouple Measurement Range:
J: -100 to 760°C (-148 to 1400°F)
K: -100 to 1260°C (-148 to 2300°F)
T: -200 to 400°C (-328 to 752°F)
E: -200 to 1000°C (-328 to 1832°F)
R: 260 to 1760°C (500 to 3200°F)
S: 260 to 1760°C (500 to 3200°F)
B: 870 to 1820°C (1598 to 3308°F)
C: 0 to 2315°C (32 to 4200°F)
N: -100 to 1260°C (-148 to 2300°F)
TC Measurement Accuracy:
Type J, K: ±0.5% of reading or ±1.0°C(1.8°F), whichever is greater
Type T, E, N: ±0.5% of reading or ±2.0°C(3.6°F), whichever is greater
Type R, S, B, C: ±0.5% of full scale
TC Measurement Resolution:
Type J, K, T, E, N: 1°C
Type R, S, B, C: 1°C
Cold Junction Compensation
(Automatic): -10 to 70°C (14 to 158°F)
Thermocouple Connection: Universal female accepts both standard male (OSTW Series) or miniature male (SMPW Series) mating connector
Operating Environment: -10 to 70°C (14 to 158°F)
Computer Interface: USB (one interface cable included with receiver)
Transmit Sample Rate: Programmable from 1 sample/minute to 1 sample/every 5 seconds Radio Frequency (RF) Transceiver
Carrier: ISM 2.4 GHz, direct sequence spread spectrum, license free worldwide (2.450 to 2.490 GHz -12 channels)
CE Compliance: All versions compliant
|
|
RF Output Power:
UWTC-2, UWRTD-2: 10dBm (10 mW)
Range of RF Link:
UWTC-2, UWRTD-2: Up to 120 m (400') outdoor line of sight. Up to 45 m (130') indoor/urban.
RF Data Packet Standard: IEEE 802.15.4, open communication architecture
Software (Included Free): Compatible with Windows (2000, XP, Vista or 7) operating system
Connector Internal Battery: One 3.6 V lithium, 2.4 Ah capacity (AA) (included)
Battery Life (Typical 1 sample/minute reading rate @ 25°C (77°F)):
UWTC-2: 1.5 years
Data Transmitted to Host: Thermocouple Reading, Connector Ambient Reading, RF Transmit Strength and Battery Condition
Dimensions: 100 L x 50 W x 25 mm H (without antenna) (4 x 2 x 1")
Weight: UWTC-2: 70 grams
Case: UWTC-2: ABS plastic
|
Note: Because of transmission frequency regulations, the UWTC-2 and UWRTD-2 products are approved for use in the United States, Canada, Europe, Mexico, Brazil, China, Korea, and Singapore.
|
|
|
|
|
|
† Price are shown in RMB.
Note:
Comes with one 3.6 V Lithium battery, mounting bracket, Type K beaded wire thermocouple (for UWTC), and user manual.
Free TC Central software is available online.
"-2J" Model for Japan Market has been discontinued.
Ordering Example: (1) UWTC-2 Wireless thermocouple connector/transmitter, ¥2,890.00, plus (1) UWTC-BATT Spare battery, ¥252.00, plus (1) UWTC-REC1 48-channel receiver host, ¥4,110.00, ¥2,890.00 + 252.00 + 4,110.00 = $7,252.00
|
|
|
|
|
| |
|
