Valve Type: 3-Port/2-Position, 5-Port/2-Position, and Modular Fixed Length Manifold 2 x 3/2
•
Low Power Consumption with 24 Vdc Operation
•
Individual or Manifold System with Easy Assembly
•
High Flow Rate
•
Manual Overrides
•
Operates Under Pressure of up to 8 Bar (116 psi)
•
Requires Air Filtration of 50 Microns or Better
•
Din Connector Type C Cable grip with Indicator Light
•
Through Hole Wall Mounting Manifold
•
Temperature Range of -10 to 50°C (14 to 122°F)
The V60 series has been discontinued. Please contact our Flow Engineering department for a viable replacement.

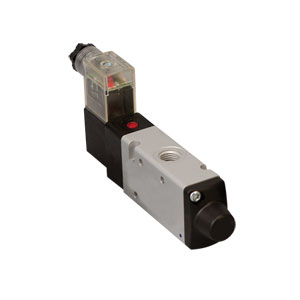

V60 Series pneumatic in-line directional control valves
are available for 2-way, 3-way or 4-way operation. These pneumatic
valves can be operated by air pilot or solenoid pilot with low power
consumption 24VDC solenoids. These direction control valves can be
surface mounted or din rail mounted with the optional din rail mounting kit. The V60 Series
directional control valves have high flow rates and are available in multiple port sizes. These
valves can be used as individual pneumatic valves or can easily be
assembled in a 3 valve manifold with one or multiple manifold bases to create a
stacking valve bank. All directional control valves in stock
have manual overrides, 24VDC solenoids and cable grip connectors
with indicator lights, other options can be requested.
The V60 Series directional control valves are spooled valves
designed to operate linear motion control components and require air filtration of
50 microns or better. 4-way, 2-position directional control valves are the most
common valve used to operate a pneumatic double acting cilinder. For best control of pneumatic components, flow
control valves (regulating out) should be installed to regulate the speed
of the device.
SPECIFICATIONS Medium: Compressed Air, filtered to 50µm, lubricated or non-lubricated
Manual Override: Push type
Voltage: 24 Vdc, power inrush/hold 2W
Operating Pressure:10 bar (145 psi)
Flow Rate:
3/2 and 5/2 - 1/8" port Cv 0.75 ( 750 l/min), 1/4" port Cv 1.3 ( 1300 l/min) and 3/8" port Cv 2.6 ( 2600l/min) 2x3/2 and 5/3 - 1/8" port Cv 0.50 ( 500 l/min), 1/4" port Cv 0.95 ( 950 l/min) and 3/8" port Cv 1.9 ( 1900l/min)
Response Time Range: Solenoid 23-56 ms, spring return 26-56 ms.
Temperature Rating: -10°C to +50°C (14°F to 122°F)
3/2 valve is also known as a 2-Way valve (drawing 1), with 3 air ports and on-off output air. Port #1 is the supply air, port #2 is the control output air and port #3 is the exhaust air.
2 x 3/2 valve (drawing 2) is two independent 2-Way valves that share the same valve body. These valves can be manifold mounted with 2 or 3 valves per manifold. Port #1 is a shared supply air, port #2 & 4 are for the control output air and port #3 & 5 are for the exhaust air.
5/2 valve (drawing 3) is also known as a 4-Way valve with 5 air ports and 2 output air ports. This valve is typically used to extend and retract a cylinder. These valves can be manifold mounted with 2 or 3 valves per manifold. Port #1 is the supply air, port #2 & 4 are for the control output air and port #3 & 5 are for the exhaust air.
DIMENSIONS (INCHES)
DRAWING NO.
TYPE
A
B
C
D
E
F
G
H
J
K
L
M
N
O
P
Q
R
S
T
U
1
V60
1.38
0.67
–
0.13
0.26
0.67
1/8
0.87
0.64
1.10
–
4.49
0.98
0.98
0.18
0.71
1.02
1.38
–
–
1
V61
1.81
0.79
–
0.13
0.26
0.79
1/4
0.98
0.83
1.10
–
5.22
1.26
1.22
0.18
0.94
1.02
1.57
–
–
1
V62
2.13
0.83
–
0.18
0.31
1.10
3/8
1.34
0.96
1.73
–
5.71
0.47
1.42
0.18
1.02
1.42
2.17
–
–
2
V60
1.97
–
0.64
0.13
0.26
0.67
1/8
0.87
1.28
1.10
6.89
–
0.98
–
0.18
1.32
1.02
1.38
–
–
2
V61
2.60
–
0.83
0.13
0.26
0.79
1/4
0.98
1.65
1.10
7.83
–
1.26
–
0.18
1.73
1.02
1.57
–
–
2
V62
3.07
–
0.96
0.18
0.31
1.10
3/8
1.34
1.92
1.73
8.58
–
0.47
–
0.18
1.02
1.42
2.17
–
–
3
V60
1.97
0.67
0.64
0.13
0.26
0.67
1/8
0.87
1.28
1.10
–
5.08
0.98
0.98
0.18
1.32
1.02
1.38
–
–
3
V61
2.60
0.79
0.83
0.13
0.26
0.79
1/4
0.98
1.65
1.10
–
6.00
1.26
1.22
0.18
1.73
1.02
1.57
–
–
3
V62
3.07
0.83
0.96
0.18
0.31
1.10
3/8
1.34
1.92
1.73
–
6.69
0.47
2.36
0.18
1.02
1.42
2.17
–
–
4
V60
1.97
–
0.64
0.13
0.26
0.67
1/8
0.87
1.28
1.10
7.44
–
0.98
3.33
0.18
1.32
1.02
1.38
–
–
4
V61
2.60
–
0.83
0.13
0.26
0.79
1/4
0.98
1.65
1.10
8.54
–
1.26
–
0.18
1.73
1.02
1.57
–
–
4
V62
3.07
–
0.96
0.18
0.31
1.10
3/8
1.34
1.92
1.73
9.49
–
0.47
5.20
0.18
1.02
1.42
2.17
–
–
† Price are shown in RMB.
Note: * Valves require a regulated and filtered air supply to operate properly. Valve manifolds can be stacked to create larger valve banks.
