Self-Regulating Immersion Heaters |
| VP and VPT Series |
|
 |
|
|
|
|
|
|
|
| • |
Self-Regulating, Fully Grounded
|
| • |
Stainless Steel or PFA Covered Stainless Steel Sheaths
|
| • |
Solid State Heating Element, Temperature up to 212°F (100°C)
|
| • |
Auto-Stabilized Temperature Ensures Uniform Heating
|
| • |
Lightweight, Easy to Handle
|
| • |
Rapid Heating
|
View related products - Immersion Heaters
|
| |
|
|
|
 |

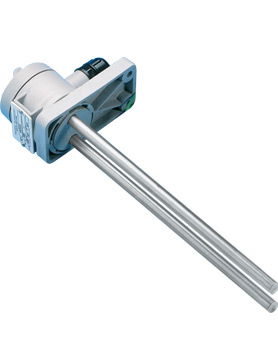

The new OMEGA™ VP and VPT Series self-regulating,
fully grounded immersion heaters are ideal for insertion
into small tanks, vessels and appliance as well as
compressors, oils, fluids and plating cells. Available in
stainless steel of PFA sheath for corrosive
environments, both models are shatterproof, grounded
with a three-wire, 5' (1.5 m) long power cord and have a
solid state heating element. Best suited for use in
applications where heating, excess temperature
protection controls and regulating components must be
fitted into a small space, these heaters are lightweight,
easy-to-handle, rapid heating (maximum temperature is
212°F (100°C), units that eliminate any danger of
overheating. Auto-stabilized temperature prevents hot
spots, thereby ensuring uniform heating. Accessories
include a ½" NPT Kynar screw plug adaptor which holds
the heater securely in place, and a polypropylene
mounting flange so the heater can be suspended
vertically into small vessels.
SPECIFICATIONS
Wattage:
VP-107, VPT-107: 100
VP-311, VPT-311: 300
Voltage: 120 or 240 Vac
Power Leads:
VP-107, VPT-107: 1.2 m (4') power cord with 3-prong plug (no plug on 240V models);
VP-311, VPT-311: 0.9 m (3') flexible conduit and fitting with 3-conductor leads
Sheath Length:
VP-107, VPT-107: 179 mm (7")
VP-311, VPT-311: 279 mm (11")
Heated Length:
VP-107, VPT-107: last 76 mm (3")
VP-311, VPT-311: last 152 mm (6")
Diameter:
VP Series: 11 mm (7⁄16")
VPT Series: 13 mm (½")
Shipping Weight: Approx. 453 g (1 lb)
|
|
|
|
|
|
† Price are shown in RMB.
Ordering Example: (1) VPT-107/120V 120 Vac, 100 W, PFA covered immersion heater, ¥10,140.00
|
|
|
|
|
| |
|
