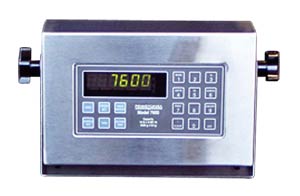

The WM7400/WM7600 Series weighmeters provide fast, easy counting
and weighing. Their 304 SS enclosure is designed for washdown
applications and has an adjustable U-bracket for bench or wall
mounting. On the sealed keypad, the user can perform complex
functions with the push of a button. The WM7600 has time/date battery
backup and audit trail accountability. Both models feature bidirectional
RS232, RS485, RS422, and current loop communications.
SPECIFICATIONS Input: 1, 2 or 3 mV/V
Excitation: 5 Vdc @ 120 mA
A/D Converter: 24 bits @ 60 updates per second
Power: 120 Vac, 50/60 Hz ±15% (EMI/RFI and transient protection standard)
Communications: 2 asynchronous serial data interfaces—RS232, RS485, RS422 and current loop fully addressable; time and date with battery backup (WM7600 Series); network addressable
Dimensions: Without U-Bracket: 254 W x 165 H x 102 mm D (10 x 6.5 x 4")
With U-Bracket: 305 W x 178 H x 102 mm D (12 x 7 x 4")
Weighing: Maximum display of 99,999; stable to 1/20,000; 1/5000 for commercial installations
Counting: 1 part in 1 million
Display: 6-digit, 14.2 mm (0.56") green LED
† Price are shown in RMB.
Note: Comes with complete operators manual. Ordering Example: (1) WM7600-AO Expanded-feature weigh/counting meter with 16-bit 0 to 10 Vdc analog output, ¥9,710.00
Part Number Builder
Option Descriptions
(1)
Model
Select 400 for Weigh/counting meter 600 for Weigh/counting meter with expanded features
(2)
Options and Accessories
Select -220VAC for 220 Vac power -AO for 0 to 10 Vdc 16-bit analog output -SSR for Solid state relay option board
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
