Universal Wireless RS232 to USB Transceiver |
| WRS232-USB |
|
 |
|
|
Universal Wireless RS232 to USB Transceiver
 |

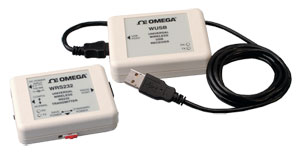

| Click for larger image. |
|
|
|
|
|
|
 |
Omega's universal wireless
RS232 to USB transceiver
interfaces to any RS232 device, and
makes it wireless. The wireless
transmitter module connects to an
RS232 device. The wireless
receiver module connects to a PC
via USB interface. The PC can
communicate with the RS232
device as if it is directly connected.
SPECIFICATIONS
Wireless Transmitter
Device Interface: RS232, RJ12 to DB9 connector included
RS232 Communication: 9600 BPS, 8 Bits of Data, 1 Stop Bit, No Parity
RF Transmitter Carrier: ISM 2.4 GHz, Direct sequence spread spectrum, License free world wide
RF Data Packet Standard: IEEE 802.15.4 open communication architecture
RF Power Output: 10 dBm (10 mW)
Supply Voltage: External 9 Vdc, or Powered thru RJ12 connection
Supply Current: 60 mA
AC Adapter: 100 to 240 Vac, 50 to 60 Hz, UL, FCC marked
Output Voltage: 9 Vdc @ 1.7 A
Output Plug (Female): Center positive, coax 2.0/5.5/10 mm
Operating Ambient Conditions: 0 to 50ºC, 0 to 90% RH (non-condensing)
Dimensions: 70 x 51 x 20 mm (2.75 x 2 x 0.80")
Wireless Receiver
PC Interface: USB 1.1, USB 2.0 compatible
Cable Type: USB 4P(A) male to mini 5P(B) male 1.8 m (6') long included
RF Range: Up to 40 m (130') indoor/urban, Up to 120 m (400') outdoor/line of sight
Operating Ambient Conditions: 0 to 50ºC, 0 to 90% RH (non-condensing)
Dimensions: 70 x 51 x 20 mm(2.75 x 2 x 0.80")
|
|
|
|
|
|
† Price are shown in RMB.
Note: Because of transmission frequency regulations, this product may only be used in the United States, Canada and Europe.
Ordering Example: (1) WRS232-USB wireless transmitter and receiver modules, RS232 cable with RJ12 to DB9 connector, DB9 male/male connector, and USB cable, ¥3,275.00
|
|
|
|
|
| |
|
