WS Series Strip Heaters
WS Series
CE

Strip Heaters

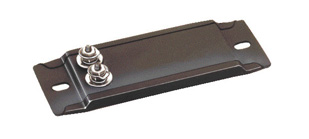

WS Series:WS Series Strip Heaters
Click for larger image.

¥ 1,975.00  WS-640/120V
• 2½ " (6 cm) Wide
• Rugged, Reliable, Premium Quality
• 400 to 1500 Watt
• 2 Terminals at Right Angle At One End
• CSA Certified

View related products - Strip Heaters

Click to scroll below to order See Specs PDF View a printer friendly page

The OMEGALUX™ WS series strip heater features 2 terminals placed at a right angle on one end. A standard width of 2½ inches makes them ideal for most strip heater applications.

CAUTION AND WARNING
Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel. See inside back cover for additional warnings.

dimensions

Dimensions—Inches (cm) Rust-Resisting Sheath Chrome Steel Sheath
A B D E No of
Mtg**
Hole		 Watts W/In2† Model No. Watts W/In2 † Model No. Weight
Ib (kg)
6 1/2 (17)5 1/2 (14)5 (13)1 7/8 (5)240014WS-640/*50025WS-605/*.75 (0.3)
8 1/2 (22)7 1/2 (19)7 (18)1 7/8 (5)350016WS-850/*60019WS-806/*1.0 (0.4)
12 (30)11 (28)10 1/2 (27)3 3/8 (9)460012WS-1260/*80016WS-1208/*1.40 (0.6)
15 1/4 (39)14 1/4 (36)13 3/4 (35)2 5/8 (7)675011WS-1575/*100014WS-1501/*1.88 (0.9)
21 (53)20 (51)19 1/2 (50)2 3/8 (6)98508WS-2185/*125012WS-2101/*2.28 (1)
25 1/2 (65)24 1/2 (62)24 (61)2 7/8 (7)1110008WS-2510/*150012WS-2515/*2.63 (1.2)
If terminal housing is required with a WS strip heater, use a type SE-AC-1 mounted sideways. (See page C-23).
Ceramic post terminal insulators can also be used. (See page C-23).
* Designate voltage , i.e., insert 120 for 120 Vac or 240 for 240 Vac.
** 21/64 " diameter holes optional. Standard heaters have two mounting holes.
† To determine maximum allowable watt density, see Figures C-8 or C-9.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 WS-640/120V 6 Weeks   ¥1,975.00    400 W, 120 V, Rust Resisting Iron Sheath Strip Heater
 WS-640/240V 6 Weeks   ¥1,830.00    400 W, 240 V, Rust Resisting Iron Sheath Strip Heater
 WS-850/120V 2 Weeks   ¥1,680.00    500 W, 120 V, Rust Resisting Iron Sheath Strip Heater
 WS-850/240V 6 Weeks   ¥1,810.00    500 W, 240 V, Rust Resisting Iron Sheath Strip Heater
 WS-1260/120V 8 Weeks   ¥1,600.00    600 W, 120 V, Rust Resisting Iron Sheath Strip Heater
 WS-1575/120V 8 Weeks   ¥2,380.00    750 W, 120 V, Rust Resisting Iron Sheath Strip Heater
 WS-1575/240V 6 Weeks   ¥1,715.00    750 W, 240 V, Rust Resisting Iron Sheath Strip Heater
 WS-2510/120V 8 Weeks   ¥2,075.00    1000 W, 120 V, Rust Resisting Iron Sheath Strip Heater
 WS-2510/240V 6 Weeks   ¥2,075.00    1000 W, 240 V, Rust Resisting Iron Sheath Strip Heater
 WS-605/120V 6 Weeks   ¥3,985.00    500 Watt, 120 Volt, Chrome Steel Sheath Strip Heater
 WS-605/240V 2 Weeks   ¥3,535.00    500 Watt, 240 Volt, Chrome Steel Sheath Strip Heater
 WS-806/120V 6 Weeks   ¥2,140.00    600 Watt, 120 Volt, Chrome Steel Sheath Strip Heater
 WS-806/240V 6 Weeks   ¥2,140.00    600 Watt, 240 Volt, Chrome Steel Sheath Strip Heater
 WS-1501/120V 2 Weeks   ¥2,835.00    1000 Watt, 120 Volt, Chrome Steel Sheath Strip Heater
 WS-1501/240V 6 Weeks   ¥3,375.00    1000 Watt, 240 Volt, Chrome Steel Sheath Strip Heater
 WS-2101/240V 6 Weeks   ¥3,515.00    1250 Watt, 240 Volt, Chrome Steel Sheath Strip Heater
 WS-2515/240V 6 Weeks   ¥3,745.00    1500 Watt, 240 Volt, Chrome Steel Sheath Strip Heater
† Price are shown in RMB.

 Ordering Example: (1) WS-1575/240V 21/ 2 inch wide, 240 Vac strip heater, ¥1,715.00
