Wind Tunnel For Thermal Evaluation of Circuit Boards, Heat Sinks, Components and Air Velocity Sensor Calibrations |
| WT-2000 |
|
 |
|
|
|
|
|
¥
60,685.00
WT-2000
|
| • |
Portable Bench-Top Design
|
| • |
Provides Highly Accurate, Uniform and Repeatable Air Flow up to 1000 fpm*
|
| • |
Included Control Box Allows for Open Loop Full Scale Operation of Individual Fans, Groups of 2 Fans, or All 4 Fans at a Time
|
| • |
Free PC Based Open Loop Software Allows User to Precisely Control Air Flow Rate Using the Included USB Cable to Connect to the Control Box
|
| • |
Large Test Chamber with a Hinged Access Door and Small Access Panel Allows for Fast Comparison Testing on Many Different Size Heat Sinks and Circuit Boards
|
| • |
Operates from 90 to 264 Vac Line Power
|
View related products - Anemometers & Wind Tunnels
|
| |
|
|
|
 |

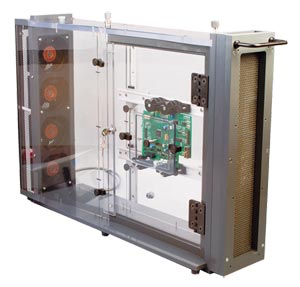

The new thermal wind tunnel from OMEGA is
designed to give a highly accurate and uniform flow
rate. Four powerful DC fans are precisely controlled to
provide variable air speeds from 0 to 1000 ft/min. The
WT-2000 wind tunnel was designed to provide
thermal characterization of circuit boards, heat sinks
and components. The unit is made of clear
polycarbonate and PVC for a durable and transparent
assembly. The large test section is accessed by the
large hinged door and accommodates a removable
test plate, as well as a rail system that allows for a
wide range of mounting options. In addition, there
is a small access door that accommodates the quick
changing of smaller components and the placement
of sensors. Multiple access ports with 1/4 and 1/2 "
compression fittings are provided on the top and rear
panel of the wind tunnel for the routing of wires and
insertion of sensors.
SPECIFICATIONS
WIND TUNNEL
Flow Rate: 5 m/s (0 to 1000 ft/min)
Size: 80.5 L x 18.4 W x 48.4 cm H (31.7 x 7.3 x 19.1")
Weight: 12.48 kg (27.5 lb)
Test Chamber: 43 x 8.25 cm cross section (17 x 3.25")
Fan Speed: 3800 RPM
DC Fan Motor: 12 Vdc @ 0.47A ea (5.6W ea) x 4
Noise: 61 dBA max, 1 meter away
ELECTRICAL CONTROL BOX
Power: 90 to 264 Vac @ 47 to 63 Hz
Fuse: 2A fast acting 5 x 20 mm cartridge type
Size: 16 L x 13.8 W x 6.7 cm H (6 1/4 x 4 7/16 x 2 11/16")
Weight: 0.9 kg (2 lb)
PC Interface: USB
Operating Temperature: 5 to 45°C (41 to 113°F)
Operating Relative Humidity: Less than 80% without condensation
*All specifications measurements at ambient room temperature
of 22.2°C (70°F) with less than 80% relative humidity and
760 mm (29.92") of Hg barometric pressure.
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes with fully assembled wind tunnel test chamber, electronic control box controller fan control cable, PC interface cable, molded power cord (for US, Canada, and Mexico), complete operator'’s manual, and PC interface software CD.
Ordering Example: (1) SA1-K Type K self adhesive thermocouples with stripped ends (5-pack), ¥970.00, plus (1) WT-2000 Wind tunnel package, ¥60,685.00, ¥970.00 + 60,685.00 = $61,655.00
|
|
|
|
|
| |
|
