1/16 DIN Temperature Controllers
CN740 Series
1 year warranty CE

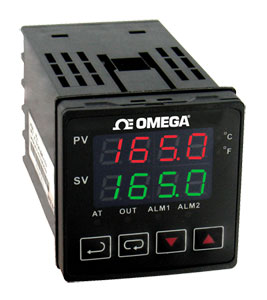

CN740 Series:1/16 DIN Temperature Controllers
Click for larger image.

• 1/16 DIN temperature controller with Dual Display
• Autotune
• RS-485 Communications
• Free Software
• Alarm Functions
• Thermocouple/ RTD Inputs
• Output Status

View related products - Controllers, Meters and Switching Devices

Click to scroll below to order See Specs PDF Manuals Software Related Items View a printer friendly page

Input Types Range
Pt100Ω RTD 0 to 100°C (32 to 212°F)
-20 to 500°C (-4 to 932°F)
-200 to 600°C (-328 to 1112°F)
B Thermocouple100 to 1800°C (212 to 3272°F)
S Thermocouple 0 to 1700°C (32 to 3092°F)
R Thermocouple 0 to 1700°C (32 to 3092°F)
N Thermocouple -200 to 1300°C (-328 to 2372°F)
E Thermocouple 0 to 600°C (32 to 1112°F)
T Thermocouple -20 to 400°C (-4 to 752°F)
-200 to 400°C (-328 to 752°F)
J Thermocouple -20 to 400°C (-4 to 752°F)
-100 to 850°C (-148 to 1562°F)
K Thermocouple -200 to 1300°C (-328 to 2372°F)
-200 to 500°C (-328 to 932°F)
L Thermocouple -200 to 500°C (-328 to 932°F)
U Thermocouple -200 to 800°C (-328 to 1472°F)
The CN740 Series temperature controllers offer accurate temperature measurement and control in a 1/16 DIN package. Designed for direct or reverse acting (cooling or heating) control, the CN740 Series can be programmed for simple ON/OFF or more complex PID control functions. PID control is supported with manual or autotuning. Select relay, DC pulse or current output for control methods. The CN740 Series accepts a variety of thermocouple and RTD inputs. Process value and set-point value are displayed simultaneously on the large dual LED. Auto-tuning, engineering units (°F or °C), and alarm status is also indicated on the faceplate. Two alarm outputs are included on the unit with 12 preprogrammed alarm functions.

SPECIFICATIONS
Inputs: Thermocouple, RTD, see chart
Display: Two 4-digit, 7 segment 6.35 mm (0.25") H LEDs
    PV: Red
    SV: Green
Resolution: 1 degree
Accuracy: ±0.25% span, ±1 least significant digit
Supply Voltage: 100 to 240 Vac, 50/60 Hz
Power Consumption: 5 VA max
Operating Temperature: 0 to 50°C (32 to 122°F)
Memory Backup: Nonvolatile memory
Control Output Ratings:
Relay: SPST, 5A @ 250 Vac resistive
Voltage Pulse: 14 Vdc, 10 to -20% (max 40 mA)
Current: 4 to 20 mA
Communication: RS-485 MODBUS® communication protocol
Panel Cut-Out: 48 mm square (1.89" square) Maximum Panel
Thickness: 9.50 mm (0.375")
Weight: 114 g (4 oz)
Front Panel Rating: IP66
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 CN742 2 Weeks   ¥1,165.00    DC pulse output, with RS-485 communications*
 CN743 In Stock   ¥1,165.00    Relay output with RS-485 communications.
 CN745 2 Weeks   ¥1,165.00    4 to 20 mA output, with RS-485 communications*
 Accessories
 CN7-485-USB-1    Consult sales   RS-485 to USB Mini-Node Converter
 CNQUENCHARC 2 Weeks   ¥394.00    Noise Suppression RC snubber (2 leads), 110 to 230 Vac
† Price are shown in RMB.

 Note: Comes with operator's manual.
  Ordering Example: (1) CN743 Single output controller, mechanical relay, RS-485 communications, ¥1,165.00
