PRE-WIRED STRAIN GAGES, Linear Gages, X-Y Planar Rosettes (Tee Rosette), 0°/45°/90° Planar Rosettes
KFH Series

KFH Series:PRE-WIRED STRAIN GAGES, Linear Gages, X-Y Planar Rosettes (Tee Rosette), 0°/45°/90° Planar Rosettes
Click for larger image.

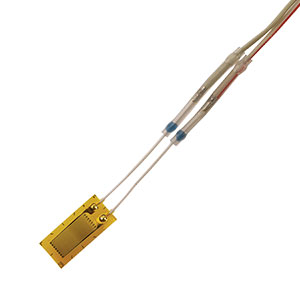

¥ 1,850.00  KFH-3-350-C1-11L3M3R
• Pre-Wired Strain Gages Make Installations Easy!
• No Soldering at the Measuring Point
• Linear Gages, 0.3 mm to 20 mm Grids
• XY Gages (Tee Rosettes) 0.6 to 6 mm Grids
• 0°/45°/90° Planar Rosettes 0.6 to 6 mm Grids
• Each Gage has 50 mm of PTFE Cable before Transitioning to AWG 28 Leads to Prevent Leads from Adhering During Installation
• Rugged Polyimide Carrier
• Fully Encapsulated Gages for Protection from the Environment

View related products - Strain Gages, Accessories and Instrumentation

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

Linear pattern precision pre wired gages with minature and medium length grids are for general purpose and stress analysis applications. Available with either two 1-meter leads or three 3-meter leads and 120 Ω or 350 Ω resistance. All models are compensated for steel.

The planar XY pattern (0 / 90°) allows precision strain measurement by eliminating the errors often associated with a stacked XY pattern. These gages are available with either two 1-meter leads or three 3-meter leads per grid and are compensated for steel.

The planar rosette pattern (0 / 45°/ 90°) allows precision strain measurement by eliminating the errors often associated with a stacked pattern. These gages are available with either two 1-meter leads or three 3-meter leads per grid and are compensated for steel.

Specifications See Spec Sheet for full specifications
Strain Gage Construction Foil strain gage with embedded measuring grid
Measuring Grid
    Material Constantan
    Thickness µm (microinch) 3.8 or 5 (150 or 197), depending upon strain gage type
    Carrier Material Polyimide
    Thickness µm (microinch) 45 ± 10 (1.772 ± 394)
Connections PTFE wire, Ø - 0.051 mm², approximately 50 mm long, connected to AWG 28 ribbon cables (PVC insulated) through solder sleeves in 2- or 3-wire configurations
Nominal Resistance Ω 120 or 350 depending upon gage
Resistance Tolerance % ±0.35, with 0.6 mm and 1.5 mm grid length % ±1
Gage Factor approximately 2 (stated on package)
Gage Factor Tolerance % ±1, with 0.6 mm and 1.5 mm grid length % ±1.5, temperature coefficient of gage factor 1/K [1/°F] (115 ± 10) x 10-6 [(64 ± 5.5) x 10-6, nominal value of gage factor temperature coefficient Specified on each package
Applicable Bonding Materials
    Cold Cure Adhesives SG496, SG401
Heat Cure Adhesives TT300
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 GAGES SOLD IN PACKAGES OF 10
(Price shown is for package of 10)
 Linear Gages - 0.3 mm Grid
 KFH-03-120-C1-11L1M2R 2 Weeks   ¥1,675.00    0.3 mm grid, 120 Ω, 2-leads, 1 m long
 KFH-03-120-C1-11L3M3R 24 Weeks   ¥2,220.00    0.3 mm grid, 120 Ω, 3-leads, 3 m long
 Linear Gages - 0.6 mm Grid
 KFH-06-120-C1-11L1M2R 2 Weeks   ¥1,285.00    0.6 mm grid, 120 Ω, 2-leads, 1 m long
 KFH-06-120-C1-11L3M3R 2 Weeks   ¥1,845.00    0.6 mm grid, 120 Ω, 3-leads, 3 m long
 Linear Gages - 1.5 mm Grid
 KFH-1.5-120-C1-11L1M2R In Stock   ¥1,050.00    1.5 mm grid, 120 Ω 2-leads, 1 m long
 KFH-1.5-120-C1-11L3M3R 14 Weeks   ¥1,580.00    1.5 mm grid, 120 Ω, 3-leads, 3 m long
 Linear Gages - 3 mm Grid
 KFH-3-120-C1-11L1M2R 2 Weeks   ¥1,015.00    3 mm grid, 120 Ω 2-leads, 1 m long
 KFH-3-350-C1-11L1M2R 16 Weeks   ¥1,425.00    3 mm grid, 350 Ω 2-leads, 1 m long
 KFH-3-120-C1-11L3M3R 24 Weeks   ¥1,535.00    3 mm grid, 120 Ω, 3-leads, 3 m long
 KFH-3-350-C1-11L3M3R 2 Weeks   ¥1,850.00    3 mm grid, 350 Ω, 3-leads, 3 m long
 Linear Gages - 6 mm Grid
 KFH-6-120-C1-11L1M2R 2 Weeks   ¥895.00    6 mm grid, 120 Ω 2-leads, 1 m long
 KFH-6-350-C1-11L1M2R 2 Weeks   ¥1,425.00    6 mm grid, 350 Ω 2-leads, 1 m long
 KFH-6-120-C1-11L3M3R 2 Weeks   ¥1,425.00    6 mm grid, 120 Ω, 3-leads, 3 m long
 KFH-6-350-C1-11L3M3R 14 Weeks   ¥1,850.00    6 mm grid, 350 Ω, 3-leads, 3 m long
 Linear Gages - 10 mm Grid
 KFH-10-120-C1-11L1M2R In Stock   ¥1,110.00    10 mm grid, 120 Ω 2-leads, 1 m long
 KFH-10-120-C1-11L3M3R 2 Weeks   ¥1,730.00    10 mm grid, 120 Ω, 3-leads, 3 m long
 Linear Gages - 20 mm Grid
 KFH-20-120-C1-11L1M2R 2 Weeks   ¥1,450.00    20 mm grid, 120 Ω 2-leads, 1 m long
 KFH-20-120-C1-11L3M3R 2 Weeks   ¥1,850.00    20 mm grid, 120 Ω, 3-leads, 3 m long
 X-Y Planar Rosettes (Tee Rosette) - 0.6 mm Grid
 KFH-06-120-D16-11L1M2S 2 Weeks   ¥3,340.00    0.6 mm X-Y grid, 120 Ω, 2-leads, 1 m long
 KFH-06-120-D16-11L3M3S 2 Weeks   ¥4,400.00    0.6 mm X-Y grid, 120 Ω, 3-leads, 3 m long
 X-Y Planar Rosettes (Tee Rosette) - 1.5 mm Grid
 KFH-1.5-120-D16-11L1M2S 2 Weeks   ¥2,335.00    1.5 mm X-Y grid, 120 Ω, 2-leads, 1 m long
 KFH-1.5-120-D16-11L3M3S 16 Weeks   ¥3,485.00    1.5 mm X-Y grid, 120 Ω, 3-leads, 3 m long
 X-Y Planar Rosettes (Tee Rosette) - 3 mm Grid
 KFH-3-120-D16-11L1M2S 24 Weeks   ¥2,210.00    3 mm X-Y grid, 120 Ω, 2-leads, 1 m long
 KFH-3-350-D16-11L1M2S 14 Weeks   ¥3,265.00    3 mm X-Y grid, 350 Ω, 2-leads, 1 m long
 KFH-3-120-D16-11L3M3S 16 Weeks   ¥3,485.00    3 mm X-Y grid, 120 Ω, 3-leads, 3 m long
 KFH-3-350-D16-11L3M3S 16 Weeks   ¥4,165.00    3 mm X-Y grid, 350 Ω, 3-leads, 3 m long
 X-Y Planar Rosettes (Tee Rosette) - 6 mm Grid
 KFH-6-120-D16-11L1M2S 16 Weeks   ¥2,335.00    6 mm X-Y grid, 120 Ω, 2-leads, 1 m long
 KFH-6-350-D16-11L3M3S 2 Weeks   ¥4,215.00    6 mm X-Y grid, 350 Ω, 2-leads, 1 m long
 KFH-6-120-D16-11L3M3S 16 Weeks   ¥3,485.00    6 mm X-Y grid, 120 Ω, 3-leads, 3 m long
 KFH-6-350-D16-11L3M3S 2 Weeks   ¥4,215.00    6 mm X-Y grid, 350 Ω, 3-leads, 3 m long
 0°/45°/90° Planar Rosettes, 0.6 mm Grid
 KFH-06-120-D17-11L1M2S 16 Weeks   ¥4,675.00    0.6 mm 0°/45°/90° grid, 120 Ω, 2-leads, 1 m long
 KFH-06-120-D17-11L3M3S 16 Weeks   ¥6,235.00    0.6 mm 0°/45°/90° grid, 120 Ω, 3-leads, 3 m long
 0°/45°/90° Planar Rosettes, 1.5 mm Grid
 KFH-1.5-120-D17-11L1M2S 16 Weeks   ¥3,560.00    1.5 mm 0°/45°/90° grid, 120 Ω, 2-leads, 1 m long
 KFH-1.5-120-D17-11L3M3S 2 Weeks   ¥5,040.00    1.5 mm 0°/45°/90° grid, 120 Ω, 3-leads, 3 m long
 0°/45°/90° Planar Rosettes, 3 mm Grid
 KFH-3-120-D17-11L1M2S 14 Weeks   ¥3,560.00    3 mm 0°/45°/90° grid, 120 Ω, 2-leads, 1 m long
 KFH-3-350-D17-11L1M2S 14 Weeks   ¥5,065.00    3 mm 0°/45°/90° grid, 350 Ω, 2-leads, 1 m long
 KFH-3-120-D17-11L3M3S 16 Weeks   ¥5,040.00    3 mm 0°/45°/90° grid, 120 Ω, 3-leads, 3 m long
 KFH-3-350-D17-11L3M3S 14 Weeks   ¥6,165.00    3 mm 0°/45°/90° grid, 350 Ω, 3-leads, 3 m long
 0°/45°/90° Planar Rosettes, 6 mm Grid
 KFH-6-120-D17-11L1M2S 2 Weeks   ¥3,545.00    6 mm 0°/45°/90° grid, 120 Ω, 2-leads, 1 m long
 KFH-6-350-D17-11L1M2S 16 Weeks   ¥5,040.00    6 mm 0°/45°/90° grid, 350 Ω, 2-leads, 1 m long
 KFH-6-120-D17-11L3M3S 2 Weeks   ¥5,040.00    6 mm 0°/45°/90° grid, 120 Ω, 3-leads, 3 m long
 KFH-6-350-D17-11L3M3S 14 Weeks   ¥6,515.00    6 mm 0°/45°/90° grid, 350 Ω, 3-leads, 3 m long
† Price are shown in RMB.

 Note: * See Specifitions for Maximum permitted bridge energizing voltage (Vrms)
  Ordering Example: (1) KFH-3-350-D16-11L1M2S Package of 10 gages with 3 mm X-Y grid, 350 O, 2-leads, 1 m long, ¥3,265.00
