Precision Strain Gages - 1-Axis General Purpose
SGD-1.5/120-LY11

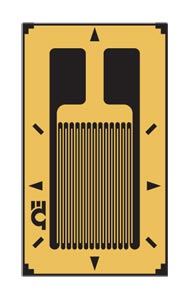

SGD-1.5/120-LY11:Precision Strain Gages - 1-Axis General Purpose
Click for larger image.

¥ 1,045.00  SGD-1.5/120-LY11
• Coveniently Priced per Pack of 10
• 1-Axis Linear Strain Gauges for Static and Dynamic Applications
• Small Bending Radius
• Broad Temperature Range
• Ribbon Leads, Solder Pads, or Wire Lead Connections
• Clear Alignment Marks
• Affix with Cold or Hot Curing Adhesives

View related products - Strain Gages, Accessories and Instrumentation

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

OMEGA™ uni-axial linear strain gauges are available in a variety of models to cover most strain measurement applications. Their rugged construction and flexibility make them suitable for highly accurate static and dynamic measurement. The measuring grid is formed by etching constantan foil, which is then completely sealed in a carrier medium composed of polyimide film.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Encapsulated with Ribbon Leads Matched to Steel (PRICE PER PKG OF 10)
 SGD-1.5/120-LY11 2 Weeks   ¥1,045.00    1.5 mm grid, 120 ohms
 SGD-2/350-LY11 2 Weeks   ¥1,100.00    2 mm grid, 350 ohms
 SGD-2D/350-LY11 6 Weeks   ¥1,100.00    2 mm grid, 350 ohms, wide pattern
 SGD-3/120-LY11 2 Weeks   ¥1,100.00    3 mm grid, 120 ohms
 SGD-3S/120-LY11 2 Weeks   ¥885.00    3 mm grid, 120 ohms, S Pattern
 SGD-3/350-LY11 2 Weeks   ¥1,100.00    3 mm grid, 350 ohms
 SGD-4/120-LY11 6 Weeks   ¥905.00    4 mm grid, 120 ohms
 SGD-5/350-LY11 2 Weeks   ¥1,215.00    5 mm grid, 350 ohms
 SGD-6/120-LY11 2 Weeks   ¥1,220.00    6 mm grid, 120 ohms
 SGD-7/350-LY11 6 Weeks   ¥1,155.00    7 mm grid, 350 ohms
 SGD-7/1000-LY11 2 Weeks   ¥1,930.00    7 mm grid, 1000 ohms
 SGD-10/120-LY11 2 Weeks   ¥1,300.00    10 mm grid, 120 ohms
 SGD-10/350-LY11 2 Weeks   ¥1,170.00    10 mm grid, 350 ohms
 SGD-10/1000-LY11 6 Weeks   ¥1,565.00    10 mm grid, 1000 ohms
 SGD-13/350-LY11 6 Weeks   ¥1,625.00    13 mm grid, 350 ohms
 SGD-13/1000-LY11 2 Weeks   ¥1,660.00    13 mm grid, 1000 ohms
 Encapsulated with Ribbon Leads Matched to Aluminum (PRICE PER PKG OF 10)
 SGD-1.5/120-LY13 6 Weeks   ¥1,045.00    1.5 mm grid, 120 ohms
 SGD-2/350-LY13 6 Weeks   ¥1,100.00    2 mm grid, 350 ohms
 SGD-2D/350-LY13 6 Weeks   ¥885.00    2 mm grid, 350 ohms, wide pattern
 SGD-3/120-LY13 6 Weeks   ¥1,095.00    3 mm grid, 120 ohms
 SGD-3S/120-LY13 2 Weeks   ¥885.00    3 mm grid, 120 ohms, S Pattern
 SGD-3/350-LY13 2 Weeks   ¥1,045.00    3 mm grid, 350 ohms
 SGD-4/120-LY13 6 Weeks   ¥905.00    4 mm grid, 120 ohms
 SGD-5/350-LY13 2 Weeks   ¥1,285.00    5 mm grid, 350 ohms
 SGD-6/120-LY13 2 Weeks   ¥1,220.00    6 mm grid, 120 ohms
 SGD-7/350-LY13 6 Weeks   ¥1,220.00    7 mm grid, 350 ohms
 SGD-7/1000-LY13 2 Weeks   ¥1,835.00    7 mm grid, 1000 ohms
 SGD-10/120-LY13 6 Weeks   ¥1,240.00    10 mm grid, 120 ohms
 SGD-10/350-LY13 6 Weeks   ¥1,370.00    10 mm grid, 350 ohms
 SGD-10/1000-LY13 6 Weeks   ¥1,565.00    10 mm grid, 1000 ohms
 SGD-13/350-LY13 6 Weeks   ¥1,620.00    13 mm grid, 350 ohms
 SGD-13/1000-LY13 6 Weeks   ¥1,740.00    13 mm grid, 1000 ohms
 Encapsulated with Solder Pads Matched to Steel (PRICE PER PKG OF 10)
 SGD-1.5/120-LY41 2 Weeks   ¥840.00    1.5 mm grid, 120 ohms
 SGD-2/350-LY41 6 Weeks   ¥835.00    2 mm grid, 350 ohms
 SGD-2D/350-LY41 6 Weeks   ¥785.00    2 mm grid, 350 ohms, wide pattern
 SGD-3/120-LY41 6 Weeks   ¥830.00    3 mm grid, 120 ohms
 SGD-3S/120-LY41 6 Weeks   ¥830.00    3 mm grid, 120 ohms, S Pattern
 SGD-3/350-LY41 2 Weeks   ¥790.00    3 mm grid, 350 ohms
 SGD-4/120-LY41 6 Weeks   ¥785.00    4 mm grid, 120 ohms
 SGD-5/350-LY41 2 Weeks   ¥1,025.00    5 mm grid, 350 ohms
 SGD-6/120-LY41 2 Weeks   ¥1,110.00    6 mm grid, 120 ohms
 SGD-7/350-LY41 2 Weeks   ¥1,120.00    7 mm grid, 350 ohms
 SGD-7/1000-LY41 6 Weeks   ¥1,865.00    7 mm grid, 1000 ohms
 SGD-10/120-LY41 6 Weeks   ¥1,295.00    10 mm grid, 120 ohms
 SGD-10/350-LY41 2 Weeks   ¥1,295.00    10 mm grid, 350 ohms
 SGD-10/1000-LY41 6 Weeks   ¥1,625.00    10 mm grid, 1000 ohms
 SGD-13/350-LY41 2 Weeks   ¥1,670.00    13 mm grid, 350 ohms
 SGD-13/1000-LY41 2 Weeks   ¥1,620.00    13 mm grid, 1000 ohms
 Encapsulated with Solder Pads Matched to Aluminum (PRICE PER PKG OF 10)
 SGD-1.5/120-LY43 2 Weeks   ¥795.00    1.5 mm grid, 120 ohms
 SGD-2/350-LY43 6 Weeks   ¥835.00    2 mm grid, 350 ohms
 SGD-2D/350-LY43 6 Weeks   ¥785.00    2 mm grid, 350 ohms, wide pattern
 SGD-3/120-LY43 6 Weeks   ¥830.00    3 mm grid, 120 ohms
 SGD-3S/120-LY43 6 Weeks   ¥830.00    3 mm grid, 120 ohms, S Pattern
 SGD-3/350-LY43 2 Weeks   ¥835.00    3 mm grid, 350 ohms
 SGD-4/120-LY43 6 Weeks   ¥785.00    4 mm grid, 120 ohms
 SGD-5/350-LY43 6 Weeks   ¥1,025.00    5 mm grid, 350 ohms
 SGD-6/120-LY43 6 Weeks   ¥1,105.00    6 mm grid, 120 ohms
 SGD-7/350-LY43 6 Weeks   ¥1,115.00    7 mm grid, 350 ohms
 SGD-7/1000-LY43 6 Weeks   ¥1,875.00    7 mm grid, 1000 ohms
 SGD-10/120-LY43 6 Weeks   ¥1,295.00    10 mm grid, 120 ohms
 SGD-10/350-LY43 2 Weeks   ¥1,295.00    10 mm grid, 350 ohms
 SGD-10/1000-LY43 6 Weeks   ¥1,430.00    10 mm grid, 1000 ohms
 SGD-13/350-LY43 6 Weeks   ¥1,555.00    13 mm grid, 350 ohms
 SGD-13/1000-LY43 6 Weeks   ¥1,620.00    13 mm grid, 1000 ohms
† Price are shown in RMB.

 Note: Package of 10
  Ordering Example: (1) SGD-3/350-LY11 10-pack of 3 mm grid, 350 ohms resistance, matched to steel linear strain gages, ¥1,100.00
