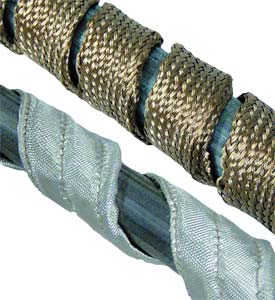

Ultra-High Temperature Heating Tapes

SST, STH SWH Series

Click for larger image.

^¥ 425.00 SST051-040

•	Premium Quality High Temperature Heating Tapes
•	Rated to 1400°F Continuous
•	Short-Term Exposure Temperature De-Energized up to 1450°F
•	Samox Insulated
•	Integrally Molded Separate Plug
View related products - Flexible Heaters

Standard tapes are made from fine gage stranded resistance wires that are double insulated with braided Samox and knitted into flat tapes for maximum flexibility. A heavy insulated tape is made by taking a standard tape and braiding it between layers of Samox yarn. Wide tapes are made from two or more standard tapes that are sewn between two layers of Samox cloth.

CAUTION AND WARNING!
Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel.

Watt	W/in2	Volts	Size	Heavy Insulated Tapes Model Number	Standard Insulated Tapes Model Number
156	13	120	1/2" x 2'	STH051-020	SST051-020
313	13	120	1/2" x 4'	STH051-040	SST051-040
470	13	120	1/2" x 6'	STH051-060	SST051-060
627	13	120	1/2" x 8'	STH051-080	SST051-080
783	13	240	1/2" x 10'	STH052-100*	SST052-100*
940	13	240	1/2 x 12'	STH052-120*	SST052-120*
313	13	120	1" x 2'	STH101-020	SST101-020
627	13	120	1" x 4'	STH101-040	SST101-040
940	13	240	1" x 6'	STH102-060*	SST102-060*
1245	13	240	1" x 8'	STH102-080*	SST102-080*

Watt	W/in2	Volts	Size	Wide Heavy Insulated Tapes Model Number
313	7.5	120	1 3/4" x 2'	SWH171-020
627	7.5	120	1 3/4" x 4'	SWH171-040
940	7.5	120	1 3/4" x 6'	SWH171-060
1254	7.5	120	1 3/4" x 8'	SWH171-080*
1570	7.5	240	1 3/4" x 10'	SWH172-100*
470	7.8	120	2 1/2" x 2'	SWH251-020
940	7.8	120	2 1/2" x 4'	SWH251-040
1411	7.8	120	2 1/2" x 6'	SWH251-060
1881	7.8	120	2 1/2" x 8'	SWH251-080*
2351	7.8	240	2 1/2"X 10'	SWH252-100*
627	8	120	3 1/4" x 2'	SWH351-20*
1254	8	120	3 1/4" x 4'	SWH351-040*
1881	8	120	3 1/4" x 6'	SWH351-060*
2508	8	120	3 1/4" x 8'	SWH351-080*
3135	8	240	3 1/4" X 10'	SWH352-100*

*Not supplied with plugs.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
STH051-020		¥460.00	heavy insulated tapes, 156 W, 120 V	qty.

STH051-040		¥525.00	heavy insulated tapes, 313 W, 120 V	qty.

STH051-060		¥720.00	heavy insulated tapes, 470 W, 120 V	qty.

STH051-080		¥915.00	heavy insulated tapes, 627 W, 120 V	qty.

STH052-100	8 Weeks	¥1,055.00	heavy insulated heating tapes, 783 W, 240 V	qty.

STH052-120	2 Weeks	¥1,245.00	heavy insulated heating tapes, 940 W, 240 V	qty.

STH101-020	2 Weeks	¥555.00	heavy insulated heating tapes, 313 W, 120 V	qty.

STH101-040	2 Weeks	¥830.00	heavy insulated heating tapes, 627 W, 120 V	qty.

STH102-060	2 Weeks	¥990.00	heavy insulated heating tapes, 940 W, 240 V	qty.

STH102-080		¥1,055.00	heavy insulated heating tapes, 1245 W, 240 V	qty.

SST051-020LSE	11 Weeks	¥420.00	standard insulated heating tapes, 156 W, 120V	qty.

SST101-040	11 Weeks	¥565.00	standard insulated heating tapes, 627 W,120V	qty.

SST051-040	2 Weeks	¥425.00	standard insulated heating tapes, 313 W, 120 V	qty.

SWH171-020	8 Weeks	¥1,245.00	wide Heavy insulated heating tapes, 313 W. 120V	qty.

SWH251-100LSE	11 Weeks	¥5,220.00	wide Heavy insulated heating tapes, 2351 W, 120V	qty.

SWH171-080	11 Weeks	¥3,145.00	wide Heavy insulated heating tapes, 1254 W, 120 V	qty.

SWH251-060	2 Weeks	¥3,260.00	wide Heavy insulated heating tapes, 1411 W, 120 V	qty.

SWH351-060	11 Weeks	¥3,480.00	wide Heavy insulated heating tapes, 1881 W, 120V	qty.

SWH351-080	11 Weeks	¥4,770.00	wide Heavy insulated heating tapes, 2508 W, 120V	qty.

† Price are shown in RMB.

Note: All tapes 1/2" or wider are available in 240V without plug.
