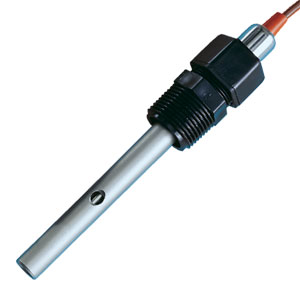

Conductivity Cells |
CDCE-90 Series |
|
 |
|
|
 |
SPECIFICATIONS CDCE-90-001, CDCE-90-01, CDCE-90-1
Cell:
CDCE-90-001: 0.01
CDCE-90-01: 0.1
CDCE-90-1: 1.0
Conductivity Range:
CDCE-90-001: 0.010 to 100 µS (10 KΩ to 100 MΩ)
CDCE-90-01: 1 to 1000 µS
CDCE-90-1: 10 to 10,000 µS
Temperature Compensation: Pt1000
Wetted Materials:
O-Rings: EPR
Insulator Material: PTFE
Electrodes: 316 SS
Standard Fitting: Polypropylene
Max. Pressure: 6.9 bar (100 psi)
Max. Temperature: 100°C (212°F)
Optional Fitting: 316 SS ½ NPT
Max Pressure: 13.8 bar (200 psi)
Max Temperature: 120°C (248°F)
CDCE-90-10
Cell Constant: 10.0
Conductivity Range: 100 to 200,000 µS
Temperature Compensation: Pt1000
O-Ring: EPR
Insulator Material: CPVC
Electrodes: 316 SS
Fitting Material: 316 SS
Maximum Pressure/Temperature: 100 psig @ 95°C (203°F)
CDCE-90-20B
Cell Constant: 20.0
Conductivity Range: 200 to 400,000 µS
Temperature Compensation: Pt1000
O-Ring: EPR
Insulator Material: PEEK
Electrodes: 316 SS
Fitting Material: 316 SS
Maximum Pressure/ Temperature: 100 psig @ 150°C (302°F)
CDCE-90S-001, CDCE-90S-01, CDCE-90S-1
Cell:
CDCE-90S-001: 0.01
CDCE-90S-01: 0.1
CDCE-90S-1: 1.0
Conductivity Range:
CDCE-90S-001: 0.010 to 100 µS (10 KΩ to 100 MΩ)
CDCE-90S-01: 1 to 1000 µS
CDCE-90S-1: 10 to 10,000 µS
Sanitary Fitting Size: 1, 11/2, 2"
Temperature Compensation: Pt1000
Wetted Materials:
O-Ring: EPR
Insulator Material: PTFE
Electrodes: 316 SS or titanium
Sanitary Fitting: 316 SS or titanium
Maximum Pressure: 6.9 bar (100 psi)
Maximum Temperature: 120°C (248°F)
|
|
|
 |
|
 |
† Price are shown in RMB.
Note: Comes complete with operator's manual.
For extended cable add "-100" to model number and consult Sales for price (not available on the CDCE-90-20)
Ordering Example: (1) CDCE-90-001 Cell Constant: 10, Conductivity Range: 100 to 200,000 µS, ¥3,770.00,
|
|
 |
|
 |
|  |
