Discontinued - Pressure Calibration Kit |
| DPG4000-KIT |
|
 |
|
|

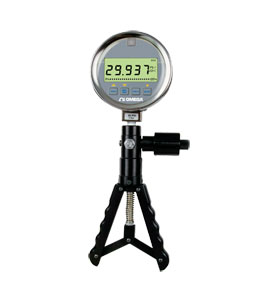

Pressure Calibration Kit for Pressure Gauge Calibration
 |
| Click for larger image. |
|
|
|
|
| • |
Very High Accuracy: ±0.05% FS
|
| • |
Temperature Compensated: 0 to 50ºC
|
| • |
Displays in 18 Standard or Custom Engineering Units
|
| • |
Displays Ambient Temperature in ºC or ºF
|
| • |
Large, Backlit, 5-Digit Display with 16.5 mm (0.65") High Digits and 20-Segment Bar Graph
|
| • |
Rugged Stainless Steel Case Meets NEMA 4 (IP65) Rating
|
| • |
Min/Max Recall
|
| • |
Adjustable Tare Zeros Large System Offsets
|
View related products - Instrumentation for Pressure and Strain Measurements
|
| |
|
|
|
 |
Replaced by DPG210-KIT.
OMEGA’s new pressure calibration
kits create a digital test gauge by combine the high accuracy of
DPG4000 Series digital pressure
gauges with a pneumatic or
hydraulic hand pump, providing
an excellent solution for field
calibration needs.
Kits include the DPG4000 digital
gauge, hand pump, rugged carrying
case, and a selection of fittings and
hose. Kits with ranges of 500 psi or
below include a pneumatic hand
pump capable of generating 0 to
500 psi pressure or 0 to 28 inches
of mercury vacuum. For ranges of
1000 psi or higher, a 0 to 10,000 psi
hydraulic pump is included.
The DPG4000 takes the concept of
a test gauge to a new level. It
combines the accuracy of digital
technology with the simplicity of
an analog gauge, delivering
performance, ease of use, and a
feature set unmatched in the
pressure measurement world.
Setup of the DPG4000 is fast and straightforward, involving a menudriven
display with minimal text and
intuitive functions. The gauge is
simple enough to be used anywhere
in the world, without the need for
multilingual displays.
SPECIFICATIONS
(0 to 50ºC Unless Otherwise Noted)
Accuracy: ±0.05% FS positive pressure, ±0.25% FS vacuum/500 psi and below
Temperature Compensation: 0 to 50ºC (32 to 122ºF) to rated accuracy
Standard Engineering Units: psi, bar, kg/cm2, inH2O (4ºC, 20ºC or 60ºF), ftH2O (4ºC, 20ºC or 60ºF), cmH2O (4ºC and 20ºC), mH2O (4ºC and 20ºC), kPa, mbar, inHg, mmHg, torr
Media Compatibility: see specifications of pump
Operating Temperature: -10 to 55ºC (14 to 131ºF)
Storage Temperature: -20 to 70ºC (-4 to 158ºF)
Dimensions: 111.1 H x 127 W x 38.1 mm D (4.375 x 5 x 1.50")
Hose Input Port: ≤500 psi: 1/8 MNPT
>500 psi:1/4 MNPT lower mount
Display: 5 digits, 16.5 mm (0.65") high
Bar Graph: 0 to 100% in 20 segments
Power: 3 "AA" alkaline batteries (included); 24 Vdc power optional
Battery Life: 1500 hr without backlight (2000 hr at slow sample rate)
Low-Battery Indicator: Icon displayed near the end of battery life. Remaining battery life can also be displayed on bar graph.
|
|
|
|
|
|
† Price are shown in RMB.
Note: DPG4000 calibration kits include DPG4000 pressure gauge, batteries, protective rubber boot, operator's manual, rugged carrying case, hand pump, fittings and tubing and a calibration certificate.
|
|
|
|
|
| |
|
