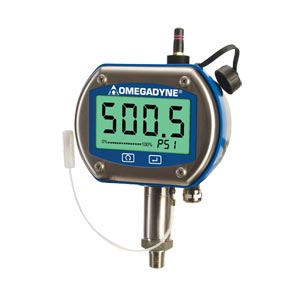

Digital Pressure Gauge (DPG) with Analog Output and Optional Wireless Transmitter |
| DPG409 Series |
|
 |
|
|
|
|
|
¥
11,395.00
DPG409-500G
|
| • |
NEW RANGES! Sealed Gage, Compound Gage, Vacuum and, Barometric Ranges
|
| • |
5-Point NIST Traceable Calibration Included
|
| • |
High 0.08% Accuracy on most Ranges
|
| • |
Analog Output: User selectable 0 to 5 Vdc, 0 to 10 Vdc or 4 to 20 mA (external 24 Vdc power supply required for all analog output types)
|
| • |
Large Backlit Display with 25 mm (1") Digits
|
| • |
6 Selectable Pressure Units
|
| • |
High and Low Open Collector Alarms
|
| • |
Min/Max/Avg Reading Selectable
|
| • |
Free Downloadable Software with USB Connection Included
|
| • |
All Stainless Steel Wetted Parts
|
| • |
Optional Wireless Transmitter Available
|
| • |
Tested to Industrial CE Specifications
|
| • |
Long Battery Life
|
| • |
NEMA 4X / IP65 Enclosure
|
View related products - Pressure Gauges
|
| |
|
|
|
 |
Omega’s DPG409 Series incorporates a rugged 316
Stainless Steel enclosure that is designed specifically for
wash-down, sanitary, and marine applications. The large backlit
LCD display features 1" high digits that make reading
at distances up to 10.7 m (35') easy. DPG models are available with
integral standard or sanitary pressure sensors that incorporate
highly-stable silicon wafer technology which is micro-machined
to precision tolerances and then has strain gages molecularly
embedded. Standard features include: internal battery or external
DC power supply operation, analog output, and user
programmable alarms. The wireless transmitter option allows
for remote monitoring, chart recording and data logging. A variety
of user-configurable options and settings include: update rate,
dampening, units, backlight, and auto-off.
Free Software for Set-up and Configuration via USB connection as well as Charting/Logging Software and drivers for wireless data.
To Order the optional Wireless Transmitter add suffix "-W", add $100 to price.
NOTE: Models with wireless option are approved for use in the U.S., Canada and Europe only
SPECIFICATIONS
CE Compliant: Meets EN61326-1: 2006
for industrial locations with analog
output cables less than 30 m (98')
Accuracy (Combined Linearity,
Hysteresis and Repeatability):
±0.08% BSL (compound gauge
calibrated in positive direction only)
Temperature:
Storage: -40 to 82°C (-40 to 180°F)
Operating: -18 to 66°C (0 to 150°F)
Thermal Effects (Over Operating Range):
Zero Balance:
Ranges >5 psi: ±0.3% span
Ranges =5 psi: ±0.5% span
Span Setting:
Ranges >5 psi: ±0.3% span
Ranges =5 psi: ±0.5% span
Minimum Resistance Between Transducer Body and Any Wire:
100MO @ 50 Vdc
Pressure Cycles: 1 million minimum
Long Term Stability (1-yr): ±0.1% FS typical
Analog Output: User selectable
0 to 5 Vdc, 0 to 10 Vdc or 4 to 20 mA
(external 24 Vdc power supply required
for all analog output types)
Note: Compound gauge ranges have a
unidirectional analog output equal to their full
span; i.e. -15 to +15 psi = 0 to 10 Vdc.
Set jumper to select current or voltage
Software selection of 0 to 5 Vdc,
0 to 10 Vdc, or 4 to 20 mA
Analog Output
Cable: 2.7 m (8.9')
Accuracy: 0.08% typical
Overpressure: Gauge and sealed gauge
10 inH2O: 10 times span
1 psi: 6 times span
2.5 to 1000 psi: 4 times span
1500 to 5000 psi: 7250 psi max
Absolute/Barometric Ranges
5 psia: 6 times span
15 to 1000 psia: 4 times span
1500 to 5000 psi range: to 7250 psia
Containment Pressure: Gauge pressure
10 inH2O to 5 psi: To 1000 psi
15 to 1000 psi: To 3000 psi
1500 to 5000 psi: To 10,000 psi
Absolute/Barometric Pressure: 5 to 1000 psi: to 6000 psia
Display: 4-digit LCD with user
selectable backlighting, (9999 count)
25 mm (1") character height
Computer Interface: USB connection
for set-up, cable included
Sample/Display Range: User
selectable from 0.38 to 30 sec. (preset
to 1/sec)
Power: One 3.6V lithium 8.4 Ah
capacity (C cell) Included (two with
wireless option), (replacement battery
part no. BATT-C-3.6V)
Battery Life (Typical): Up to 9 months
Enclosure:
Material: 316 stainless steel and
ABS center gasket
Finish: Brushed 316 stainless steel
Environmental Rating: Weatherproof, NEMA 4X (IP65)
Sensor Wetted Parts: 316L stainless steel
Pressure Connection: ¼ -18 NPT male
Connection Location: Lower
Dimensions:
Display: 115 H x 89 W x 74 mm D (4.5 x 3.5 x 2.9")
Sensor: 72 to 89 mm L (2.8 x 3.5") below display
Weight: 900 g (2 lb) Typical depending
upon configuration
Front Panel Functions
Backlight: Manually turns backlight
on/off
Min/Max: Recalls min/max values
Zero/Clear: Zeros display or clears
min/max
Software Settings (via USB)
Update Rate: 4 options, 10, 5, 2, 1
times per second
Units: psi, inHg, inH2O, bar, mbar, hPa
units; must be specified at time of order
Lock: Allows the lock-out of front panel
functions
Alarms: User selectable “High” and
“Low” alarm limits (open collector)
Backlight: On/off, 10 sec, 30 sec,
1 min, 5 min
Wireless Transmitter (Optional):
Channel number, transmission rate,
alarms, sensor offset, chart recording,
data logging
Calibrate: Zero and Span
Overrange Indication: “_ _ _ _”
Wireless Option Specifications
Transmit Sample Rate: User
programmable from 1 sample/2 min to
1 sample/2 sec
Radio Frequency (RF) Transceiver
Carrier: ISM 2.4 GHz
RF Output: 10 dBm (10 mW)
Range of RF Link:
Outdoors (Line of Sight): Up to 120 m (400')
Indoors/Urban: Up to 40 m (130')
Included Software: Requires Windows®
7 (32 bit); XP or Vista
Data Transmission to Host: Pressure
reading, ambient temperature reading,
RF transmit strength and battery level
|
|
|
|
|
|
† Price are shown in RMB.
Note: Each unit comes complete with setup and configuration software, USB cable, 5-point NIST traceable Calibration Certificate, 2.7 m (9ft) analog output cable with ferrite, and operator's manual.
Ordering Example: (1) DPG409-100G high accuracy digital pressure gauge with analog output, 0 to 100 psig range, ¥10,740.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Range
|
| |
Select
10W for 10 inH2O
001 for 1 psi
2.5 for 2.5 psi
005 for 5 psi
015 for 15 psi
030 for
050 for
100 for 100 psi
150 for 150 psi
250 for 250 psi
500 for 500 psi
750 for 750 psi
1K for 1000 psi
1.5K for 1500 psi
2.5K for 2500 psi
3.5K for 3500 psi
5.0K for 5000 psi
16 for 16 to 32 inHg
26 for 26 to 32 inHg
32 for 0 to 32 inHg
16H for 550 to 1100 hPa
26H for 880 to 1100 hPa
32H for 0 to 1100 hPa
|
(2)
|
Pressure Type
|
| |
Select
G for Gage Pressure
SG for Sealed Gage (Ranges >=100 psi)
A for Absolute Pressure
CG for Compound Gage (Ranges 10W to 015)
V for Vacuum (Ranges 10W to 015)
B for Barometric Ranges (16 26 and 32 only)
|
(3)
|
Options
|
| |
Select
for No Option
-W for Wireless Transmitter
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
