Starting from Apr 1st 2018, UWTC-REC6 receiver has been discontinued. As a possible upgrade, please check UWTC-REC2 and WRS232 or contact our customer engineering for details.

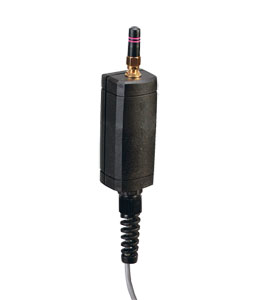

Interfaces Directly with PLCs and Multi-Channel Data Loggers to Form a Complete Wireless Measurement and Control System!With OMEGA’s new universal wireless transceiver modules you
can eliminate the wire connection between your sensor and
instrument. Simply connect this transceiver to the analog input on
your instrument and you’ll be able to receive wireless
measurements from many different wireless sensors including
OMEGA’s patented wireless thermocouple and RTD connectors,
pH, infrared temperature, relative humidity, process input
transmitters and our NB9 Series of industrial wireless probe/transmitter assemblies. Both models are packaged into a
miniature housing for easy mounting and connection. This receiver
provides stable, reliable wireless reception from your sensor.
Compatible Wireless Transmitters
• UWTC and UWTC-2-NEMAthermocouple connectors/transmitters
• UWRTD and UWRTD-2-NEMA Pt100 RTD connectors/transmitters
• UWRH-2 and UWRH-2-NEMA relative humidity transmitters
• UWPH-2-NEMA pH transmitter
• UWIR-2-NEMA Infrared (non-contact) Temperature transmitter
• UWPC-2-NEMA UWPC process transmitters
SPECIFICATIONS Power: 12 to 24 Vdc @ 50 mA Analog Output: 1, non-isolated, retransmission 0 to 5 Vdc, 0 to 10 Vdc Connection: 1.8 m (6') integral cable (included) with stripped wire termination, for both power and output Ambient Operating Range: -10 to 70°C (-14 to 158°F), 0 to 95% RH (non-condensing) Radio Receiver Frequency (RF): 2.4 GHz Enclosure: ABS (plastic) Dimensions: 76 L x 32 W x 26 mm H (3 x 1.25 x 1 in)
† Price are shown in RMB.
Note: Comes complete with 1.8 m (6') integral power/output cable, mounting bracket, and operator's manual. Requires one Model REC6-PC Setup/Programming Cable and Software.
