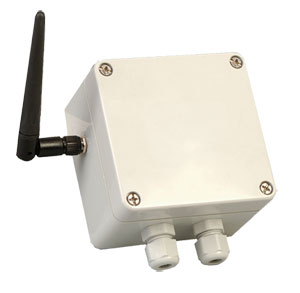

Weather Resistant Wireless Thermocouple Transmitters
 |
| Click for larger image. |
|
|
¥
3,600.00
UWTC-2-NEMA
|
| • |
Transmit Temperature Data Wirelessly to Your Computer or the Internet
|
| • |
Weather Resistant NEMA 4X (IP65) Enclosure
|
| • |
Thermocouple or Pt100 RTD Input Models
|
| • |
Transmit up to 120 m (400')
|
| • |
Each Wireless Connector Transmits Measured and Ambient Temperatures, Signal Strength and Battery Status in Real Time
|
| • |
Compatible with UWTC-REC Wireless Receivers-Create 32- or 48-Channel Wireless Systems
|
| • |
Included Software Converts a PC into a Multi-Channel Chart Recorder or Data Logger
|
View related products - Wireless Sensors, Transmitters, Receivers, Meters & Controllers
|
| |
|
|
|
 |
Each NEMA rated unit can be
programmed in the field to work as
a type J, K, T, E, R, S, B, C or N
wireless thermocouple transmitter or
a wireless RTD transmitter. When
connected to a sensor and activated
the unit will transmit readings
continuously at pre-set time interval
that was programmed by the user
during the initial setup. Each unit
measures and transmits: process
temperature, ambient temperature,
RF signal strength and battery
condition to the host and is
displayed on a PC screen in real
time using the provided software.
Both models will interface and
operate with any Omega UWTC
Series receiver.
Wireless Receivers
UWTC-REC1: 48-channel wireless receiver with USB
UWTC-REC2: 48-channel wireless receiver with USB and single analog output
UWTC-REC4: 48-channel DIN rail mount wireless receiver with USB and four analog output signals
ZW-REC: 128-channel wireless receiver
SPECIFICATIONS
THERMOCOUPLE (TC) INPUT
Available Types: J, K, T, E, R, S, B, C or N
Thermocouple Measurement Range:
J: -100 to 760°C (-148 to 1400°F)
K: -100 to 1260°C (-148 to 2300°F)
T: -200 to 400°C (-328 to 752°F)
E: -200 to 1000°C (-328 to 1832°F)
R: 260 to 1760°C (500 to 3200°F)
S: 260 to 1760°C (500 to 3200°F)
B: 870 to 1820°C (1598 to 3308°F)
C: 0 to 2315°C (32 to 4200°F)
N: -100 to 1260°C (-148 to 2300°F)
Accuracy:
J, K: ±0.5% of reading or ±1.0°C (1.8°F), whichever is greater
T, E, N: ±0.5% of reading or ±2.0°C (3.6°F), whichever is greater
R, S, B, C: ±0.5% of full scale
Resolution: 1°C/1°F
Cold Junction Compensation(Automatic): -10 to 70°C (14 to 158°F)
Sensor Connection: Internal connection block
RTD INPUT
Available Types: 100 Ω (standard) 500 Ω, 1000 Ω (special order); user selectable for 0.00385 or 0.00392 curve
Range:
0.00385: -200 to 850°C (-328 to 01562°F)
0.00392: -100 to 457°C (-148 to 854°F)
Accuracy: ±0.5°C of reading (33°F)
Resolution: 1°C/1°F
Sensor Connection: Internal terminal block
COMMON SPECIFICATIONS
Operating Environment: -10 to 70°C (14 to 158°F)
Computer Interface: USB
Transmit Sample Rate: Programmable from 2 sec to 2 min
Radio Frequency (RF) transceiver Carrier: ISM 2.4 GHz, direct sequence spread spectrum
RF Output Power: 10Bm (10 mW)
Range of RF Link: Up to 120 m (400') outdoor line of sight. Up to 40 m (130') indoor/urban.
RF Data Packet Standard: IEEE 802.15.4, open communication architecture
Software (Included Free): Requires Windows® operating system
Power: One 3.6 V, Lithium C Cell (included)
Battery Life (Typical): 3 years (at1 sample/minute reading rate @ 25°C)
Enclosure: NEMA-4X Polycarbonate
Dimensions: 80 L x 82 W x 50 mm H (3.15 x 3.22 x 1.97")
Weight: 272 g (9.6 oz)
|
|
|
|
|
|
† Price are shown in RMB.
Note: Because of transmission frequency regulations, these products may only be used in the United States, Canada, Europe, China, Brazil and Mexico (please note CE compliance of the specific model for use in Europe).
Ordering Example: (1) UWTC-2-NEMA Weather resistant thermocouple-to-wireless transmitter, ¥3,600.00, plus (1) UWTC-REC1 USB powered 48-channel transmitter USB powered 48-channel transmitter receiver, ¥4,110.00, ¥3,600.00 + 4,110.00 = $7,710.00
|
|
|
|
|
| |
|
