RTD Elements: OMEGAFILM™ Flat Profile Thin Film Platinum with Ceramic Base and Glass Coating |
| F2020 Series |
|
 |
|
|
|
|
|
|
|
| • |
Flat, Small Profile Thin Film RTD Element
|
| • |
Specification DIN EN 60751 (According to IEC 60751)
|
| • |
Temperature Range -50 to 500°C (-58 to 932°F) Depending on Accuracy Class (See Table Below)
|
| • |
Temperature Coefficient α = 0.00385Ω/Ω/°C Nominal
|
| • |
100, 500 and 1000 Ohm Configurations
|
| • |
Class A, B and 1/3 B (Also Known as Class AA) Tolerances
|
| • |
Long Term Stability: Max. Ro Drift Not Greater Than the Class Tolerance After 1000 Hours in Air at Maximum Temperature Specified for Class.
|
| • |
Vibration Resistance at Least 40 g Acceleration at 10 to 2000 Hz
|
| • |
Shock Resistance at 100 g Acceleration with 8ms Half Sine Wave
|
| • |
Insulation Resistance >10Mohms at 20°C: >1Mohms at 500°C
|
| • |
Self Heating Does Not Exceed 25% of the Tolerance Value When Powered at the Maximum Specified Operating Current (1 milliamp for 100Ω, 0.7milliamp for 500Ω and 0.3 milliamp for 1000Ω Elements)
|
| • |
Response Time Water Current (v=0.4 m/s)
t0.5 = 0.2 s; t0.9 = 0.4 s Air Stream
(v = 1 m/s) t0.5 = 3.0 s; t0.9 = 9.0 s
|
| • |
Platinum Clad Nickel Wire Leads 10 L x 0.2 mm D (0.39 x 0.008")
|
View related products - RTD (PT100) Probes, Elements and Assemblies
|
| |
|
|
|
 |

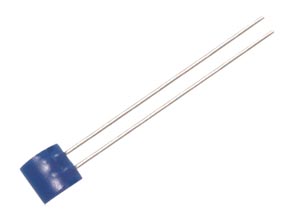

The F2020 thin film RTD element is a 2.0mm x 2.0mm size.
OMEGAFILM platinum thin film RTD
elements are manufactured using
materials and processes similar
to those employed in the
manufacture of integrated circuits.
This results in a rugged, reliable
sensing element that can be
produced in a wide range of sizes,
resistances, and accuracies to meet
even the most demanding of
applications.
OMEGAFILM RTDs conform to
the internationally accepted
requirements of IEC60751, which
defines the resistance vs.
temperature characteristics of the
sensors, their base resistance at
0°C (32°F), and their accuracy
(see below). RTDs conforming to
IEC751 have a temperature
coefficient of resistance (also
known as Alpha) of 0.00385Ohms/Ohms/°C
between 0 and 100°C.
As a result of conforming to an
internationally recognized standard
such as IEC751, OMEGAFILM
RTD elements can be used as-is
worldwide with a multitude of
controllers and instruments
designed to function within these
requirements. Elements are referred to as pt100, pt500 or pt1000 Ohm configurations
| Class | Tolerance (°C) | Tolerance of
resistance at 0°C (Ω) | Temperature
Range |
| 1/3B (AA) | ±(0.1 + 0.0017ItI) | ±0.04Ω | 0 to 150°C |
| A | ±(0.15 + 0.002ItI) | ±0.06Ω | -30 to 300°C |
| B | ±(0.3 + 0.005ItI) | ±0.12Ω | -50 to 500°C |
|
OMEGAFILM RTDs are available in
flat, round, and specialty shapes for
maximum flexibility. They are also
available in resistances at 0°C that
include 100, 200, 500, and 1000 ohms, depending on the element
style (the resistances available for
each style will be shown on their
individual pages).
Note on Assembling Omega "F" Series RTD Elements to Extension Wires:
These RTD elements are made with platinum coated nickel lead wires. Since platinum does not easily wet with most soft solders, we advise that they be spot welded or silver soldered to extension wires when required.
|
|
|
|
|
|
