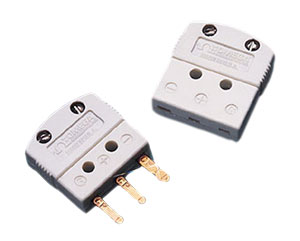

3-Prong Mini flat pin Connector for Thermocouple, RTD and 3-Wire Thermistor

MTP Series

Click for larger image.

^¥ 49.00 MTP-U-F

•	With Shield Wire Copper Connection Pin
•	Suitable for Continuing Ground Wire Through Panel Jack
•	Glass-Filled Nylon, Rated to 180°C (356°F)
•	Heavy Duty Construction
•	Color-Coded
•	Accepts Stranded or Solid Wire up to Size 20 AWG
View related products - Thermocouple Connectors and Panel Systems

Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.

Note: Minor discoloration of connector may occur between 150°C (302°F) and 180°C (356°F). Electrical properties are not affected.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
MTP-K-M		¥44.50	3-prong subminiture male connector with type K calibration	qty.

MTP-K-M-ROHS		Consult sales	This product has changed to a new number, and is identical in form, fit, function, and approvals. Please refer to: MTP-K-M 3-prong subminiture male connector with type K calibration	qty.

MTP-K-F		¥47.00	3-prong subminiture female connector with type K calibration	qty.

MTP-N-M	2 Weeks	¥45.00	3-prong subminiture male connector with type N calibration	qty.

MTP-N-F		¥50.00	3-prong subminiture female connector with type N calibration	qty.

MTP-T-M	2 Weeks	¥44.50	3-prong subminiture male connector with type T calibration	qty.

MTP-T-F	5 Weeks	¥50.00	3-prong subminiture female connector with type T calibration	qty.

MTP-J-M		¥44.50	3-prong subminiture male connector with type J calibration	qty.

MTP-J-F		¥50.00	3-prong subminiture female connector with type J calibration	qty.

MTP-E-M	2 Weeks	¥47.00	3-prong subminiture male connector with type E calibration	qty.

MTP-E-F	2 Weeks	¥53.00	3-prong subminiture female connector with type E calibration	qty.

MTP-U-M		¥43.50	3-prong subminiture male connector for uncompensated RTD, thermistors or type B thermocouples	qty.

MTP-U-F-ROHS		Consult sales	This product has changed to a new number, and is identical in form, fit, function, and approvals. Please refer to: MTP-U-F 3-prong subminiture female connector for uncompensated RTD, thermistors or type B thermocouples	qty.

MTP-U-F		¥49.00	3-prong subminiture female connector for uncompensated RTD, thermistors or type B thermocouples	qty.

† Price are shown in RMB.

Note: OMEGA’s subminiature connectors are molded of high performance glass-filled nylon. Connectors will accommodate protection tubes from 0.25 mm to 3.17 mm (0.010" to 1/8") O.D. Additional bushings can be purchased for $0.25 each; order BB-SMP-1.

Order male and female separately to create pairs.

Ordering Example: (1) MTP-K-M 3-prong subminiture male conneactor, type K calibration, ¥44.50

Part Number Builder

	(1)		(2)	(3)
M M T T P P - -		- -
Qty:

Option Descriptions

(1)

Thermocouple Calibrator

Select
K for Type K
T for Type T
J for Type J
E for Type E
U for Uncompensated or Type B
N for Type N

(2)

Connector Contacts

Select
M for Male
F for Female

(3)

ROHS

Select
Nothing(leave field blank) for Non-ROHS
-ROHS for ROHS

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
