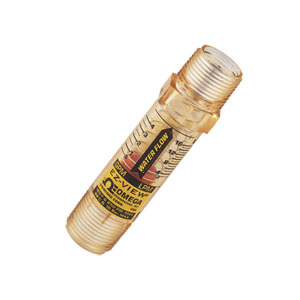

The OMEGA™ FL-9000 EZ-View flowmeters provide accurate, in-line indication of oil
or water flow rates at an economical cost. These meters utilize a spring and piston mechanism within a
polysulfone metering tube. The EZ-View meters are designed to mount in any position with no straight
pipe runs required.
SPECIFICATIONS Accuracy: ±5% FS Repeatability: ±1% full scale Material: Polysulfone, T300 series stainless steel spring, Buna flow indicator ring, Buna O-rings
(on units with brass end fittings) Dimensions: 38.1 mm (1½") across flats FL-9200: 196.8 mm (7¾") L FL-9000 and 9100: 133 mm (5¼") L Connection: FL-9200: Fits ¾" nominal (7/8" OD) or 1" nominal (1-1/8" OD)
Type M Copper Tubing; FL-9000- and FL-9100: 1 NPT, Male Max. Temperature: 121°C (250°F) Max. Pressure: 22.4 bar (325 psig)
Model No.–NPT Fitting
Ranges (GPM)
Model No.– Solder Fitting
Ranges-Water (GPM)
Water
Oil*
FL-9004
FL-9104
0.5-4
FL-9204
0.5-4
FL-9007
FL-9107
1.0-7
FL-9207
1.0-7
FL-9010
FL-9110
1.0-10
FL-9210
1.0-10
FL-9016
FL-9116
1.0-16
FL-9216
1.0-16
FL-9018
FL-9118
3.0-18
FL-9218
3.0-18
FL-9028
FL-9128
4.0-28
FL-9228
4.0-28
* Specific Gravity = 0.876
† Price are shown in RMB.
Note: Comes complete with operator's manual.
NIST traceable certificate is not available on units with direct read scale.
