Easy-View Flow meters with Adjustable Flow Alarm
FL9000-AC Series
1 year warranty

Easy-View Flow meters with Adjustable Flow Alarm

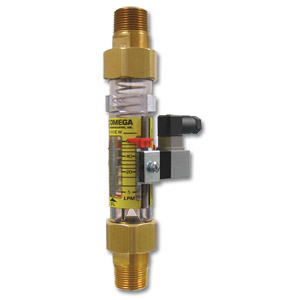

FL9000-AC Series:Easy-View Flow meters with Adjustable Flow Alarm
Click for larger image.

¥ 2,580.00  FL9104-AC
• Easy to Install, In Any Position
• No Special Piping or Flow Straighteners Required
• Automatically Signals Alarm
• ±5% FS Accuracy
• ±1% FS Repeatability
• Direct Reading Scale

View related products - Variable Area Flow Meters & Switches

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

The FL9000-AC Series flowmeters are ideal for a wide range of flow monitoring applications. These low cost flow meters will install in any position easily. Additional features include an adjustable flow alarm externally mounted on the flow meter. The flow alarm will automatically open or close AC electrical circuits, activating warning lights, bells, pumps or other process control equipment.

SPECIFICATIONS
Wetted Parts: T300 series stainless steel spring, strontium ferrite magnet, Buna O-rings (for units with brass end fittings)
Maximum Pressure: 22.4 bar (325 psig)
Maximum Temperature: 121°C (250°F); relay rated to 70°C (158°F)
Maximum Particle Size: 74 microns
Alarm Relay: Latching relay circuit housed in a sealed polypropylene enclosure. Relay pulls in over 25% of span and drops out above and below that. Includes mating connector. Relay is field replaceable; rated 1 A @ 30 Vdc (-DC models), 0.5 @ 125 Vac (-AC models), resistive load
Setpoint: Adjustable 0 to 100%FS
Hex Fittings: 38.1 mm (1.5") flats

Media
(Piston
Type)		Flow
Range
(GPM)		Model Number
3/4" and 1"
Nominal Brass
Sweat Fitting*		Length/
Weight		Model Number
1" Male
NPT
Polysulfone**		Length/
Weight		Model Number
3/4" Male
NPTF Brass		Length
Weight
Oil
(Std
Piston)		0.5 to 4
1.0 to 7
1.0 to 10
1.0 to 16
3.0 to 18
4.0 to 28		NOT AVAILABLE-FL9104-AC
FL9107-AC
FL9110-AC
FL9116-AC
FL9118-AC
FL9128-AC		133.3 mm
(5.25")
0.09 kg
(3.2 oz)		FL9504-AC
FL9507-AC
FL9510-AC
FL9516-AC
FL9518-AC
FL9528-AC		209.5 mm
(8.25")
0.41 kg
(14.4 oz)
Water
(Std
Piston)		0.5 to 4
1.0 to 7
1.0 to 10
1.0 to 16
3.0 to 18
4.0 to 28		FL9204-AC
FL9207-AC
FL9210-AC
FL9216-AC
FL9218-AC
FL9228-AC		196.8 mm
(7.75")
0.34 kg
(12 oz)		FL9004-AC
FL9007-AC
FL9010-AC
FL9016-AC
FL9018-AC
FL9028-AC		133.3 mm
(5.25")
0.09 kg
(3.2 oz)		FL9404-AC
FL9407-AC
FL9410-AC
FL9416-AC
FL9418-AC
FL9428-AC		209.5 mm
(8.25")
0.41 kg
(14.4 oz)
*Fits 3/4" Nominal (7/8" OD) and 1" Nominal (1-1/8" OD) type M copper tubing.
**Do not use pipe dope when mounting, use PTFE tape only.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 1 MNPT Polysulfone . Water (Std Piston) **Do Not Use Pipe Dope When Mounting; Use PTFE Tape Only.
 FL9004-AC 5 Weeks   ¥2,605.00    0.5 to 4 GPM Water Flowmeter 1 NPT Polysulfone
 FL9007-AC 5 Weeks   ¥2,605.00    1.0 to 7 GPM Water Flowmeter 1 NPT Polysulfone
 FL9010-AC 22 Weeks   ¥2,605.00    1.0 to 10 GPM Water Flowmeter 1 NPT Polysulfone
 FL9016-DC 5 Weeks   ¥2,605.00    1.0 to 16 GPM Water Flowmeter 1 NPT Polysulfone DC relay
 FL9016-AC 5 Weeks   ¥2,605.00    1.0 to 16 GPM Water Flowmeter 1 NPT Polysulfone
 FL9018-AC 5 Weeks   ¥2,605.00    4.0 to 18 GPM Water Flowmeter 1 NPT Polysulfone
 FL9028-AC 5 Weeks   ¥2,605.00    4.0 to 28 GPM Water Flowmeter 1 NPT Polysulfone
 1 MNPT Polysulfone. Oil (Std Piston) **Do Not Use Pipe Dope When Mounting; Use PTFE Tape Only.
 FL9104-AC 5 Weeks   ¥2,580.00    0.5 to 4 GPM Oil Flowmeter 1 NPT Polysulfone
 FL9107-AC 5 Weeks   ¥2,580.00    1.0 to 7 GPM Oil Flowmeter 1 NPT Polysulfone
 FL9110-AC 5 Weeks   ¥2,580.00    1.0 to 10 GPM Oil Flowmeter 1 NPT Polysulfone
 FL9116-AC 5 Weeks   ¥2,580.00    1.0 to 16 GPM Oil Flowmeter 1 NPT Polysulfone
 FL9118-AC 5 Weeks   ¥2,580.00    4.0 to 18 GPM Oil Flowmeter 1 NPT Polysulfone
 FL9128-AC 5 Weeks   ¥2,580.00    4.0 to 28 GPM Water Flowmeter 1 NPT Polysulfone
 3/4" and 1" Nominal Brass Sweat Fitting. Water (Std Piston) Fits 3/4" nominal (7/8" OD) and 1" nominal (1 1/8" OD) type M copper tubing
 FL9204-AC 5 Weeks   ¥3,005.00    0.5 to 4 GPM Water Flowmeter, 3/4" and 1" Nominal Brass Sweat Fittng
 FL9207-AC 5 Weeks   ¥3,005.00    1.0 to 7 GPM Water Flowmeter, 3/4" and 1" Nominal Brass Sweat Fittng
 FL9210-AC 22 Weeks   ¥3,005.00    1.0 to 10 GPM Water Flowmeter, 3/4" and 1" Nominal Brass Sweat Fittng
 FL9216-AC 5 Weeks   ¥3,005.00    1.0 to 16 GPM Water Flowmeter, 3/4" and 1" Nominal Brass Sweat Fittng
 FL9218-AC 5 Weeks   ¥3,005.00    4.0 to 18 GPM Water Flowmeter, 3/4" and 1" Nominal Brass Sweat Fittng
 FL9228-AC 5 Weeks   ¥3,005.00    4.0 to 28 GPM Water Flowmeter, 3/4" and 1" Nominal Brass Sweat Fittng
 3/4 MNPTF Brass. Water (Std Piston)
 FL9404-AC 5 Weeks   ¥3,215.00    0.5 to 4 GPM Water Flowmeter 3/4 NPT Brass
 FL9407-AC 5 Weeks   ¥3,215.00    1.0 to 7 GPM Water Flowmeter, 3/4 NPT Brass
 FL9410-AC 5 Weeks   ¥3,215.00    1.0 to 10 GPM Water Flowmeter, 3/4 NPT Brass
 FL9416-AC 5 Weeks   ¥3,215.00    1.0 to 16 GPM Water Flowmeter, 3/4 NPT Brass
 FL9418-AC 5 Weeks   ¥3,215.00    4.0 to 18 GPM Water Flowmeter, 3/4 NPT Brass
 FL9428-AC 5 Weeks   ¥3,215.00    4.0 to 28 GPM Water Flowmeter, 3/4 NPT Brass
 3/4 MNPTF Brass. Oil (Std Piston)
 FL9504-AC 5 Weeks   ¥3,215.00    0.5 to 4 GPM Oil Flowmeter 3/4 NPT Brass
 FL9507-AC 5 Weeks   ¥3,215.00    1.0 to 7 GPM Oil Flowmeter 3/4 NPT Brass
 FL9510-AC 5 Weeks   ¥3,215.00    1.0 to 10 GPM Oil Flowmeter 3/4 NPT Brass
 FL9516-AC 5 Weeks   ¥3,215.00    1.0 to 16 GPM Oil Flowmeter 3/4 NPT Brass
 FL9518-AC 5 Weeks   ¥3,215.00    4.0 to 18 GPM Oil Flowmeter 3/4 NPT Brass
 FL9528-AC 5 Weeks   ¥3,215.00    4.0 to 28 GPM Oil Flowmeter 3/4 NPT Brass
† Price are shown in RMB.

 Note: Comes complete with operator's manual.

For models with a DC rated relay, replace suffix "-AC" with suffix "-DC", no additional cost.

(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)


  Ordering Example: (1) FL9016-AC 1.0-16 GPM Water Flowmeter 1" NPT Polysulfone, ¥2,605.00
