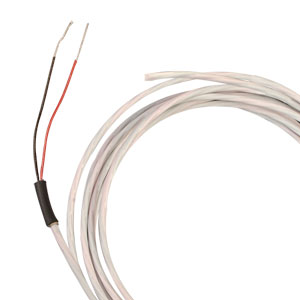

Hermetically Sealed Flexible Thermistor Sensors, PFA Jacketed |
| HSTH-44000 Series |
|
 |
|
|
|
|
|
¥
710.00
HSTH-44033-40
|
| • |
Available in 3 Standard Resistance Values: 2252 Ohms, 5000 Ohms or 10,000 Ohms at 25°C.
|
| • |
Interchangeability: ±0.1°C Between 0 and 70°C.
|
| • |
Temperature Range -80 to 150°C (-110 to 302°F)
|
| • |
Available in Standard Lengths of 40, 80 and 120 Inches (1, 2 and 3 Meters).
|
| • |
PFA Jacketed Design is Highly Resistant to Chemicals and Oils
|
| • |
Easily Sterilized for Food Applications
|
| • |
Response Time = 3.75 Seconds Max in Water Flowing at 3 Feet per Second (63%)
|
View related products - Thermistor Elements, Probes and Assemblies
|
| |
|
|
|
 |
The HSTH Series Flexible Thermistor Sensors are hermetically sealed
at the sensor tip to provide continuous protection from corrosive environments.
This unique Thermistor temperature probe design provides a small, flexible, and electrically
isolated Thermistor element, suited to a variety of applications. The
HSTH Series is available in three resistance values: 2252Ω, 5000Ω
and 10000Ω.
If you need higher operating temperatures, see our RTD Version or Thermocouple Version which may be a better fit for your application.
|
|
|
|
|
|
† Price are shown in RMB.
Note: For cables longer than 120 inches, change the last number in model number to the length needed in inches, and add $2.25/ft to the price. For a optional phone plug, add "-PP" to the end of the model number and add $7 to the price.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
Ordering Example: (1) HSTH-44031-80 80, ¥790.00, plus (1) HSTH-44033-40 40, ¥710.00, ¥790.00 + 710.00 = $1,500.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Resistance
|
| |
Select
44033 for 2252 OHM @ 25°C
44034 for 5000 OHM @ 25°C
44031 for 10000 OHM @ 25°C
|
(2)
|
Cable Length
|
| |
Select
40 for 1 m (40 in) stripped leads
80 for 2 m (80 in) stripped leads
120 for 3 m (120 in) stripped leads
|
(3)
|
Additional Option
|
| |
Select
Nothing(leave field blank) for None
-PP for Phone plug
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
