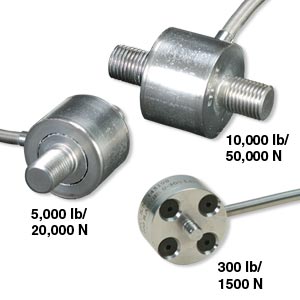

Miniature Universal Load Cell | 1" to 1.38" Diameter | 50 to 10,000 lb

LC202

Click for larger image.

^¥ 8,175.00 LC202-2K

•	Miniature Package for Test Stands and Difficult Locations
•	Rugged, Heavy Duty Construction
•	Dual Mounting Studs for Easy Installation
•	5-Point Calibration with 59 kOhm Shunt Cal Data
View related products - Load Cells, Force Sensors and Torque Transducers

OMEGA’s LC202 Series Load Cell offers the designer a compact series with ranges from 50 lb to 10,000 lb and accuracy of 0.25%. The all stainless steel construction and rugged design assure long life in industrial and commercial applications.

The LC202 is also available in metric configurations, with ranges from 0-100 to 0-50,000 N and metric threads. Please see the LCM202 for complete details, or contact our Pressure department for more information.

SPECIFICATIONS
Excitation: 10 Vdc, 15 Vdc max
Output: 2 mV/V nominal
Accuracy: ±0.25% FSO (linearity, hysteresis, repeatability combined)
5-Point Calibration: 0%, 50%, 100%, 50%, 0%
Zero Balance: ±2% FSO
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: 0.009% FSO/°C
Span: 0.009% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 360 Ω minimum
Output Resistance: 350 ±10 Ω
Construction: Stainless steel
Electrical: 1.5 m (5') 4-conductor cable
Protection Class: IP65

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
LC202-50	2 Weeks	¥8,070.00	0-50 lb miniature tension and compression load cell	qty.

LC202-100	8 Weeks	¥7,740.00	0- 100 lb miniature tension and compression load cell	qty.

LC202-300	8 Weeks	¥8,175.00	0- 300 lb miniature tension and compression load cell	qty.

LC202-500	8 Weeks	¥7,740.00	0- 500 lb miniature tension and compression load cell	qty.

LC202-1K	2 Weeks	¥8,175.00	0- 1,000 lb miniature tension and compression load cell	qty.

LC202-2K	2 Weeks	¥8,175.00	0- 2,000 lb miniature tension and compression load cell	qty.

LC202-3K	2 Weeks	¥8,175.00	0- 3,000 lb miniature tension and compression load cell	qty.

LC202-5K	2 Weeks	¥8,175.00	0- 5,000 lb miniature tension and compression load cell	qty.

LC202-7.5K	2 Weeks	¥8,130.00	0-7,500 lb miniature tension and compression load cell	qty.

LC202-10K	10 Weeks	¥8,175.00	0-10,000 lb miniature tension and compression load cell	qty.


Accessories

REC-010F	2 Weeks	¥234.00	Swivel Rod End for 50 to 500 lb ranges	qty.

REC-014F	2 Weeks	¥234.00	Swivel Rod End for 1000 lb range	qty.

REC-038F	2 Weeks	¥232.00	Swivel Rod End for 2000 to 3000 lb ranges	qty.

REC-012F	2 Weeks	¥460.00	Swivel Rod End for 4000 to 5000 lb ranges	qty.

REC-034F	6 Weeks	¥925.00	Swivel Rod End for 7500 to 10,000 lb ranges	qty.


Compatible Meters

DP25B-S	2 Weeks	¥3,675.00	4-Digit strain meter with excitation	qty.

DP41-S	2 Weeks	¥7,875.00	6-Digit strain meter with excitation	qty.

DMD-465		¥5,300.00	Bipolar Strain Amplifier	qty.

DMD4059		¥4,540.00	DIN Rail mount unipolar srrain signal conditioner	qty.

† Price are shown in RMB.

Note: All LC202 Series load cells include a 5 point NIST traceable calibration certificate.
Ordering Example: (1) LC202-1K is a 1,000 lb capacity miniature universal load cell, ¥8,175.00

Part Number Builder

	(1)
L L C C 2 2 0 0 2 2 - -

Qty:

Option Descriptions

(1)

Select
50 for 50 lb range
100 for 100 lb range
300 for 300 lb range
500 for 500 lb range
1K for 1000 lb range
2K for 2000 lb range
3K for 3000 lb range
4K for 4000 lb range
5K for 5000 lb range
7.5K for 7500 lb range
10K for 10000 lb range

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
