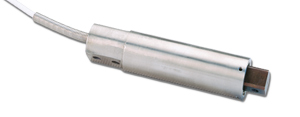

OMEGA’s Model LC601 is an extremely low capacity industrial load
cell with built-in overload stops in all four directions for added durability
. The LC601 offers high accuracy and a rugged design in a small
package. It is ideal for small scales and industrial weighing
applications.
The LC601 is also available in metric configurations, with 0-1 to 0-10 kgf ranges and metric threads.
Please see the LCM601 for complete details, or contact our Pressure department for more information.
SPECIFICATIONS Excitation: 10 Vdc, 15V max Output: 2 mV/V ±0.25% 5-Point Calibration (in Compression): 0%, 50%, 100%, 50%, 0% Linearity: ±0.03% FSO Hysteresis: ±0.03% FSO Repeatability: ±0.02% FSO Zero Balance: ±1% FSO Operating Temperature Range: -34 to 82°C (-30 to 180°F) Compensated Temperature Range: 16 to 71°C (60 to 160°F) Thermal Effects: Zero: ±0.0025% FSO/°F Span: ±0.0010% FSO/°F Safe Overload: 150% of rated capacity Ultimate Overload: 300% of capacity Input Resistance: 360 Ω minimum Output Resistance: 350 ±10 Ω Full Scale Deflection: 0.005 to 0.015" typ Construction: Stainless steel Electrical Connections: 1.5 m (5') 4-conductor shielded color-coded cable
† Price are shown in RMB.
Note: All LC601 Series load cells include a 5 point NIST traceable calibration certificate. Ordering Example: (1) LC601-25 is a +/-25 lb capacity load cell, ¥5,850.00
