Heavy Duty Constant Moment Beam Load Cells, Environmentally Sealed
LC602

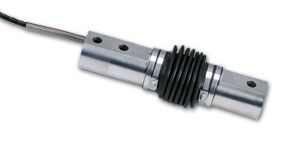

LC602:Heavy Duty Constant Moment Beam Load Cells, Environmentally Sealed
Click for larger image.

• 5 Point NIST Traceable Calibration with
59 kOhm Shunt Cal Data
• 0.25% Interchangeability for Scale Applications
• High Quality Stainless Steel Construction
• Rugged, Economical Design

View related products - Load Cells, Force Sensors and Torque Transducers

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

This item is being discontinued.


Model LC602 is a heavy duty industrial load cell designed for industrial weighing and scale applications. The LC602 offers a highly accurate, rugged design in a small, economical package.

The LC602 is also available in metric configurations, with ranges from 0-25 to 0-5000 kgf. Please see the LCM602 for complete details, or contact our Pressure department for more information.

SPECIFICATIONS
Excitation: 10 Vdc (15V max)
Output:
   ≤500 lb/250 kgf: 2 mV/V
   >500 lb/250 kgf: 3 mV/V ±0.25 % FSO
5-Point Calibration (in Compression): 0%, 50%, 100%, 50%, 0%
Linearity: ±0.03% FSO
Hysteresis:
   ≤500 lb/250 kgf: ±0.05% FSO
   >500 lb/250 kgf: ±0.03% FSO
Repeatability: ±0.02% FSO
Zero Balance: ±1.0% FSO
Operating Temp Range: -34 to 82°C (-30 to 180°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
   Zero: ±0.002% FSO/°F
   Span: ±0.001% FSO/°F
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 350 Ω minimum
Protection Class: IP65
Output Resistance: 350 ±10 Ω
Full Scale Deflection: 0.010 to 0.015" typical
Construction: Stainless steel
Agency Approval: FM Intrinsically Safe IS/I.II.III/1/CDEFG
Electrical: 4.6 m (15') PVC insulated, 4-conductor shielded color-coded cable
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 LC602-50    Consult sales   Heavy duty beam load cell, +/- 50 lb capacity
 LC602-100    Consult sales   Heavy duty beam load cell, +/- 100 lb capacity
 LC602-150    Consult sales   Heavy duty beam load cell, +/- 150 lb capacity
 LC602-250    Consult sales   Heavy duty beam load cell, +/- 250 lb capacity
 LC602-500    Consult sales   Heavy duty beam load cell, +/- 500 lb capacity
 LC602-1K    Consult sales   Heavy duty beam load cell, +/- 1,000 lb capacity
 LC602-1.5K    Consult sales   Heavy duty beam load cell, +/- 1,500 lb capacity
 LC602-2K    Consult sales   Heavy duty beam load cell, +/- 2,000 lb capacity
 LC602-2.5K    Consult sales   Heavy duty beam load cell, +/- 2,500 lb capacity
 LC602-5K    Consult sales   Heavy duty beam load cell, +/- 5,000 lb capacity
 LC602-7.5    Consult sales   Heavy duty beam load cell, +/- 7,500 lb capacity
 LC602-10K    Consult sales   Heavy duty beam load cell, +/- 10,000 lb capacity
† Price are shown in RMB.

 Note: All LC602 Series load cells include a NIST traceable calibration certificate.
