High Capacity Tension Link Load Cells

LC702 and LC712 Series

Click for larger image.

^¥ 11,430.00 LC702-5K

•	Male to Male Thread Connection
•	5 Point NIST Traceable Calibration with 59 kOhm Shunt Cal Data
•	All Stainless Steel Construction
•	Accuracy 0.15%
•	Heavy Duty Construction for High Capacity Loads
View related products - Load Cells, Force Sensors and Torque Transducers

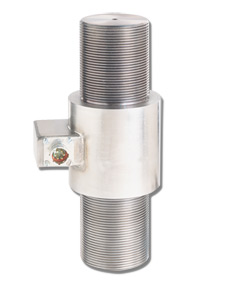

OMEGA’s LC702 Series Tension Links have a 6 ft (2 m) cable, and the LC712 Series have an integral connector. Both series are all stainless steel high capacity in-line tension load cells, for applications including cables on cranes, support rods in architectural designs, engine test beds, and industrial weighing applications.

SPECIFICATIONS
Output: 2 mV/V ±0.25 % FSO
Excitation: 10 Vdc (15V max)
Linearity: ±0.10% FSO
Hysteresis: ±0.10% FSO
Repeatability: ±0.05% FSO
Zero Balance: ±1.0% FSO
Operating Temp Range: -34 to 121°C (-30 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
   Zero: ±0.009% FSO/°C (±0.005% FSO/°F)
   Span: ±0.009% FSO/°C (±0.005% FSO/°F)
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Bridge Resistance: 350 Ω
Construction: Stainless steel
Electrical:
   LC702: 1.8 m (6') 4-conductor cable
   LC712: DT02H-10-6P (or equiv.)
Protection Class: IP67
LC712 Mating Connector: PT06F10-6S, sold separately

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

LC702 Cable Termination

LC702-5K	10 Weeks	¥11,430.00	Tension link load cell with 6 foot cable, 0-5,000 lb capacity	qty.

LC702-10K	10 Weeks	¥11,430.00	Tension link load cell with 6 foot cable, 0-10,000 lb capacity	qty.

LC702-20K	10 Weeks	¥11,430.00	Tension link load cell with 6 foot cable, 0-20,000 lb capacity	qty.

LC702-30K	10 Weeks	¥11,430.00	Tension link load cell with 6 foot cable, 0-30,000 lb capacity	qty.

LC702-50K	6 Weeks	¥11,430.00	Tension link load cell with 6 foot cable, 0-50,000 lb capacity	qty.

LC702-100K	16 Weeks	¥27,880.00	Tension link load cell with 6 foot cable, 0-100,000 lb capacity	qty.


LC712 Connector Termination (mating connector sold separately)

LC712-5K	10 Weeks	¥11,495.00	Tension link load cell with connector, 0-5,000 lb capacity	qty.

LC712-10K	6 Weeks	¥11,495.00	Tension link load cell with connector, 0-10,000 lb capacity	qty.

LC712-20K	6 Weeks	¥11,495.00	Tension link load cell with connector, 0-20,000 lb capacity	qty.

LC712-30K	12 Weeks	¥11,495.00	Tension link load cell with connector, 0-30,000 lb capacity	qty.

LC712-50K	6 Weeks	¥10,880.00	Tension link load cell with connector, 0-50,000 lb capacity	qty.

LC712-100K	16 Weeks	¥27,880.00	Tension link load cell with connector, 0-100,000 lb capacity	qty.


Accessories and Compatible Meters

PT06F10-6S		¥326.00	Mating electrical connector for LC712	qty.

CA-6PC24-3-015		¥1,315.00	15 foot connector/cable assembly for LC712 series	qty.

DP25B-S	2 Weeks	¥3,525.00	4-Digit strain meter with excitation	qty.

DP41-S	2 Weeks	¥7,555.00	6-Digit strain meter with excitation	qty.

† Price are shown in RMB.

Note: All LC702/LC712 series include a NIST traceable calibration certificate. Load cells over 300,000 lb calibrated at 300,000 lb. For a full scale calibration over 300,000 lb, specify option "-FS" after model number ($1,500 additional price)
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
Ordering Example: (1) LC712-100K Connector style tension link, 0-100,000 lb capacity, ¥27,880.00, plus (1) PT06F10-6S Mating electrical connector, ¥326.00, ¥27,880.00 + 326.00 = $28,206.00

Part Number Builder

	(1)		(2)
L L C C		- -
Qty:

Option Descriptions

(1)

Cable or Connector

Select
702 for Cable style
712 for Connector style

(2)

Load Range

Select
5K for 0-5000 lb range
10K for 0-10000 lb range
20K for 0-20000 lb range
30K for 0-30000 lb range
50K for 0-50000 lb range
100K for 0-100000 lb range
150K for 0-150000 lb range
200K for 0-200000 lb range
300K for 0-300000 lb range
500K for 0-500000 lb range
1M for 0-1000000 lb range

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.

Related Links - Related Products

Related Products

	DP25B Series:
	1/8 DIN Process Meter & Controller

	DP41-S:
	High Performance Strain Gage Meter, High Resolution 6-Digit Display

	DMD4059 Series:
	Bridge/Strain Gage Signal Conditioner

Keywords:male to male thread tension link, High Capacity Tension Link Load Cells
