Miniature Low Profile Tension Link Load Cells
0.75 to 1" Height
LC703

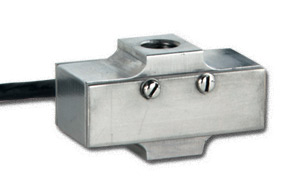

LC703:Miniature Low Profile Tension Link Load Cells 0.75 to 1
Click for larger image.

¥ 4,355.00  LC703-10
• Low Profile
• High Accuracy
• Rugged Industrial Design
• Tension or Compression Operation
• 5 Point Calibration with 59 kOhm Shunt Cal Data

View related products - Load Cells, Force Sensors and Torque Transducers

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

The LC703 Series is an economical universal (Tension/Compression) load cell with an extremely low profile. Ranges above 100 lb are Stainless Steel; 100 lb and below are Aluminum. The LC703’s low profile, economical price and rugged design make it suitable for many industrial applications including robotics, automated weighing systems or as part of a batch-process control system.

The LC703 is also available in metric configurations, with 0-5 to 0-500 kgf ranges and metric threads. Please see the LCM703 for complete details, or contact our Pressure department for more information.

SPECIFICATIONS
Excitation: 10 Vdc (15V max)
Output: 2 mV/V nominal
5-Point Calibration: 0%, 50%, 100%, 50%, 0%
Linearity:
   10 to 100 lb: ±0.15%
   >100 lb: ±0.10 FSO
   5 to 50 kgf: ±0.15%
   75 to 500 kgf: ±0.10%
Hysteresis:
   10 to 100 lb: ±0.15%
   >100 lb: ±0.10 FSO
   5 to 50 kgf: ±0.15%
   75 to 500 kgf: ±0.10%
Repeatability: ±0.05%
Zero Balance: ±1.0% FSO
Operating Temp Range: -40 to 82°C (-40 to 180°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
   Zero: ±0.005% FSO/°F
   Span: ±0.005%% FSO/°F
Protection Class: IP54
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Output Resistance: 350 ±10 Ω
Input Resistance: 360 Ω minimum
Full Scale Deflection: 0.08 mm (0.003") nominal
Construction:
   ≤100 lb: Aluminum
   >100 lb: 17-4 PH stainless steel
   ≤50 kg: Aluminum
   >50 kg: 17-4 PH stainless steel
Electrical: 3.6 m (12') shielded 4-conductor PVC cable
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 LC703-10 2 Weeks   ¥4,355.00    Low profile universal load cell, 0-10 lb capacity
 LC703-25 2 Weeks   ¥4,385.00    Low profile universal load cell, 0-25 lb capacity
 LC703-50 8 Weeks   ¥4,200.00    Low profile universal load cell, 0- 50 lb capacity
 LC703-75 14 Weeks   ¥4,985.00    Low profile universal load cell, 0-75 lb capacity
 LC703-100 8 Weeks   ¥4,200.00    Low profile universal load cell, 0-100 lb capacity
 LC703-150 6 Weeks   ¥4,595.00    Low profile universal load cell, 0-150 lb capacity
 LC703-200 2 Weeks   ¥4,125.00    Low profile universal load cell, 0-200 lb capacity
 LC703-300 20 Weeks   ¥4,355.00    Low profile universal load cell, 0-300 lb capacity
 LC703-500 20 Weeks   ¥5,795.00    Low profile universal load cell, 0-500 lb capacity
 LC703-750 10 Weeks   ¥5,765.00    Low profile universal load cell, 0-750 lb capacity
 LC703-1K 20 Weeks   ¥5,795.00    Low profile universal load cell, 0-1,000 lb capacity
 Swivel Rod Ends
 REC-010M 2 Weeks   ¥234.00    Swivel rod end for 10 lb range
 REC-014M 2 Weeks   ¥241.00    Swivel rod end for 25 to 100 lb ranges
 REC-038M 2 Weeks   ¥246.00    Swivel rod end for 150 to 1000 lb ranges
 Compatible Meters
 DP25B-S 2 Weeks   ¥3,675.00    4-Digit Strain meter with excitation
 DP41-S 2 Weeks   ¥7,875.00    6-Digit Strain meter with excitation
† Price are shown in RMB.

 Note: All LC703 Series load cells include a 5 point NIST traceable calibration certificate.
