Tall Through-Hole Bolt Load Cells, 1.50-3.00" Diameter
LC8151

Tall Through-Hole Load Cells, 1.50-3.00" Diameter

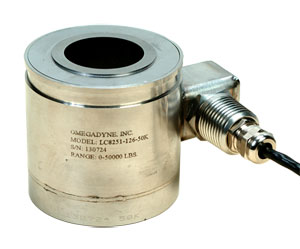

LC8151:Tall Through-Hole Bolt Load Cells, 1.50-3.00
Click for larger image.

• 5 Point NIST Traceable Calibration with
59 kOhm Shunt Cal Data
• All Stainless Steel Construction
• Rugged Industrial Design

View related products - Load Cells, Force Sensors and Torque Transducers

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

This item is discontinued.


SPECIFICATIONS
Output: 2 mV/V nominal
Input: 10 Vdc (15V max)
Linearity: ± 0.5% FSO
Repeatability: ± 0.1% FSO
Zero Balance: ±2.0% FSO
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
   Zero: ±0.009% FSO/°C
   Span: ±0.018% rdg/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Deflection: 0.076 mm (0.003") nominal
Input Resistance: 360 Ω minimum
Output Resistance: 350 ±5 Ω
Construction: 17-4 PH stainless steel
Electrical: 1.5 m (5') 4-conductor shielded cable
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 LC8151 SERIES, 1.5' OD, 1.5' HEIGHT
 LC8151-500-3K    Consult sales   Through hole load cell, 1.5' OD, 0.500' ID, and 0-3,000 lb capacity
 LC8151-500-5K    Consult sales   Through hole load cell, 1.5' OD, 0.500' ID, and 0-5,000 lb capacity
 LC8151-500-10K    Consult sales   Through hole load cell, 1.5' OD, 0.500' ID, and 0-10,000 lb capacity
 LC8151-500-20K    Consult sales   Through hole load cell, 1.5' OD, 0.500' ID, and 0-20,000 lb capacity
 LC8151-750-10K    Consult sales   Through hole load cell, 1.5' OD, 0.750' ID, and 0-10,000 lb capacity
 LC8151-750-25K    Consult sales   Through hole load cell, 1.5' OD, 0.750' ID, and 0-25,000 lb capacity
 LC8251 SERIES, 2.5' OD, 2.5' HEIGHT
 LC8251-126-50K    Consult sales   Through hole load cell, 2.5' OD, 1.26' ID, and 0-50,000 lb capacity
 LC8251-126-75K    Consult sales   Through hole load cell, 2.5' OD, 1.26' ID, and 0-75,000 lb capacity
 LC8251-126-100K    Consult sales   Through hole load cell, 2.5' OD, 1.26' ID, and 0-100,000 lb capacity
 LC8301 SERIES, 3' OD, 2' HEIGHT
 LC8301-126-75K    Consult sales   Through hole load cell, 3.0' OD, 1.26' ID, and 0-75,000 lb capacity
 LC8301-126-100K    Consult sales   Through hole load cell, 3.0' OD, 1.26' ID, and 0-100,000 lb capacity
 LC8302 SERIES, 3' OD, 3' HEIGHT
 LC8302-151-150K    Consult sales   Through hole load cell, 3.0' OD, 1.51' ID, and 0-150,000 lb capacity
† Price are shown in RMB.
