Through-Hole Bolt Load Cells, 2.00 Inch O.D.
LC8200

Compact Through-Hole Load Cells, 2.00 Inch O.D.

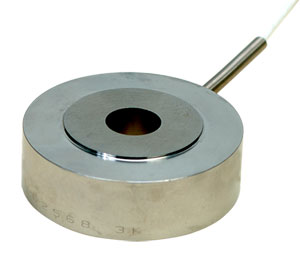

LC8200:Through-Hole Bolt Load Cells, 2.00 Inch O.D.
Click for larger image.

¥ 6,720.00  LC8200-500-250
• 5 Point NIST Traceable Calibration with
59 kOhm Shunt Cal Data
• Low Profile
• All Stainless Steel Construction
• Rugged Industrial Design

View related products - Load Cells, Force Sensors and Torque Transducers

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

SPECIFICATIONS
Output: 2 mV/V nominal
Input: 10 Vdc (15V max)
Linearity: ± 0.5% FSO
Repeatability: ± 0.1% FSO
Zero Balance: ±2.0% FSO
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
   Zero: ±0.009% FSO/°C
   Span: ±0.036% rdg/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Deflection: 0.076 mm (0.003") nominal
Input Resistance: 360 Ω minimum
Output Resistance: 350 ±5 Ω
Construction: 17-4 PH stainless steel
Electrical: 1.5 m (5') 4-conductor shielded cable
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 0.125 ID
 LC8200-125-5 10 Weeks   ¥6,720.00    Thru hole load cell, 2" Od, 0.125" ID, 0-5 lb capacity
 LC8200-125-10 10 Weeks   ¥6,720.00    Thru hole load cell, 2" Od, 0.125" ID, 0-10 lb capacity
 LC8200-125-25 10 Weeks   ¥6,720.00    Thru hole load cell, 2" Od, 0.125" ID, 0-25 lb capacity
 LC8200-125-50 10 Weeks   ¥6,720.00    Thru hole load cell, 2" Od, 0.125" ID, 0-50 lb capacity
 LC8200-125-100 10 Weeks   ¥6,720.00    Thru hole load cell, 2" Od, 0.125" ID, 0-100 lb capacity
 0.250 ID
 LC8200-250-3K 12 Weeks   ¥6,720.00    Thru hole load cell, 2" Od, 0.250" ID, 0-3,000 lb capacity
 LC8200-250-5K 12 Weeks   ¥6,720.00    Thru hole load cell, 2" Od, 0.250" ID, 0-5,000 lb capacity
 0.375 ID
 LC8200-375-25    Consult sales   Thru hole load cell, 2" Od, 0.375" ID, 0-25 lb capacity
 LC8200-375-7.5K 10 Weeks   ¥6,720.00    Thru hole load cell, 2" Od, 0.375" ID, 0-7,500 lb capacity
 LC8200-375-10K 10 Weeks   ¥6,720.00    Thru hole load cell, 2" Od, 0.375" ID, 0-10,000 lb capacity
 0.50 ID
 LC8200-500-3K 8 Weeks   ¥6,720.00    Thru hole load cell, 2" Od, 0.500" ID, 0-3,000 lb capacity
 LC8200-500-5K 12 Weeks   ¥7,130.00    Thru hole load cell, 2" Od, 0.500" ID, 0-5,000 lb capacity
 LC8200-500-10K 2 Weeks   ¥6,395.00    Thru hole load cell, 2" Od, 0.500" ID, 0-10,000 lb capacity
 0.625 ID
 LC8200-625-50 6 Weeks   ¥6,395.00    Thru hole load cell, 2" Od, 0.625" ID, 0-50 lb capacity
 LC8200-625-250 10 Weeks   ¥7,130.00    Thru hole load cell, 2" Od, 0.625" ID, 0-250 lb capacity
 LC8200-625-500 11 Weeks   ¥6,755.00    Thru hole load cell, 2" Od, 0.625" ID, 0-500 lb capacity
 LC8200-625-1K 6 Weeks   ¥6,515.00    Thru hole load cell, 2" Od, 0.625" ID, 0-1,000 lb capacity
 0.875 ID
 LC8200-875-3K 8 Weeks   ¥7,130.00    Thru hole load cell, 2" Od, 0.875" ID, 0-3,000 lb capacity
 1.00 ID
 LC8200-1.00-500 12 Weeks   ¥6,720.00    Thru hole load cell, 2" Od, 1.00" ID, 0-500 lb capacity
 LC8200-1.00-1K 10 Weeks   ¥6,395.00    Thru hole load cell, 2" Od, 1.00" ID, 0-1,000 lb capacity
 LC8200-1.00-2K 2 Weeks   ¥7,130.00    Thru hole load cell, 2" OD, 1.00" ID, 0-2,000 lb capacity
† Price are shown in RMB.

 Note: All LC8200 series load cells include a NIST traceable calibration certificate.
   Part Number Builder
(1) (2)
L
L
C
C
8
8
2
2
0
0
0
0
-
-
-
-
Qty:
Option Descriptions
(1) Inside Diameter
  Select
125 for 0.125 inch ID
188 for 0.188 inch ID
250 for 0.250 inch ID
375 for 0.375 inch ID
500 for 0.500 inch ID
625 for 0.625 inch ID
750 for 0.750 inch ID
875 for 0.875 inch ID
1.00 for 1.00 inch ID
(2) Load Range
  Select
5 for 0-5 lb range
10 for 0-10 lb range
25 for 0-25 lb range
50 for 0-50 lb range
100 for 0-100 lb range
250 for 0-250 lb range
500 for 0-500 lb range
1K for 0-1000 lb range
2K for 0-2000 lb range
3K for 0-3000 lb range
5K for 0-5000 lb range
7.5K for 0-7500 lb range
10K for 0-10000 lb range
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
