Bolt Load Cells
Large I.D. 2.00-3.13 Inch

LC8313, LC8400, LC8450

Large I.D. Through-Hole Load Cells, 2.00-3.13 Inch I.D.
LC8313, LC8400, LC8450:Bolt Load CellsLarge I.D. 2.00-3.13 Inch

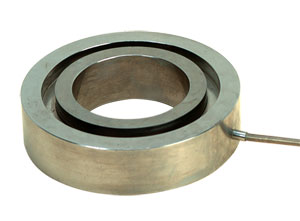

Click for larger image.

¥ 6,940.00  LC8400-213-10K
• 5 Point NIST Traceable Calibration with
59 kOhm Shunt Cal Data
• 3.13, 4.00 and 4.50" OD Sizes
• Large I.D. Application
• All Stainless Steel Construction
• Rugged Industrial Design

View related products - Load Cells, Force Sensors and Torque Transducers

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

The LC8313, LC8400 and LC8450 Series Donut Load Cells are a space saving solution to applications requiring a large through-hole with limited space. With their rugged construction and design, these load cells are ideal for applications such as loading forces on large bolts or other suspended load applications. This series, with its all stainless steel construction and environmental protection, has proven its reliability in tough industrial applications.

SPECIFICATIONS
Output: 2 mV/V nominal
Input: 10 Vdc (15V max)
Accuracy: ± 0.5%, linearity, hysteresis and repeatability combined
Zero Balance: ±2.0% FSO
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
   Zero: ±0.009% FSO/°C
   Span: ±0.018% rdg/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Deflection: 0.076 mm (0.003") nominal
Input Resistance: 360 Ω minimum
Output Resistance: 350 ±5 Ω
Construction: 17-4 PH stainless steel
Electrical: 1.5 m (5') 4-conductor shielded cable
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 LC8313 SERIES, 3.13" OD
 LC8313-200-500 12 Weeks   ¥6,660.00    Thru hole load cell, 3.13" OD, 2.00" ID, 0-500 lb capacity
 LC8313-200-5K 11 Weeks   ¥6,660.00    Thru hole load cell, 3.13" OD, 2.00" ID, 0-5,000 lb capacity
 LC8313-213-5K 6 Weeks   ¥6,460.00    Thru hole load cell, 3.13" OD, 2.13" ID, 0-5,000 lb capacity
 LC8400 SERIES, 4" OD
 LC8400-200-25K 6 Weeks   ¥9,295.00    Thru hole load cell, 4.00" OD, 2.00" ID, 0-25,000 lb capacity
 LC8400-200-50K 18 Weeks   ¥9,245.00    Thru hole load cell, 4.00" OD, 2.00" ID, 0-50,000 lb capacity
 LC8400-200-100K 6 Weeks   ¥10,620.00    Thru hole load cell, 4.00" OD, 2.00" ID, 0-100,000 lb capacity
 LC8400-213-10K 19 Weeks   ¥6,940.00    Thru hole load cell, 4.00" OD, 2.13" ID, 0-10,000 lb capacity
 LC8400-213-25K 11 Weeks   ¥9,245.00    Thru hole load cell, 4.00" OD, 2.13" ID, 0-25,000 lb capacity
 LC8400-213-200K 8 Weeks   ¥10,240.00    Thru hole load cell, 4.00" OD, 2.13" ID, 0-200,000 lb capacity
 LC8450 SERIES, 4.5" OD
 LC8450-313-5K 10 Weeks   ¥6,660.00    Thru hole load cell, 4.50" OD, 3.13" ID, 0-5,000 lb capacity
† Price are shown in RMB.

 Note: All LC8000 series load cells include a NIST traceable calibration certificate.
  Ordering Example: (1) LC8450-313-5K is a 5,000 lb capacity load cell with 4.50" O.D. and 3.13" I.D., ¥6,660.00
   Part Number Builder
(1) (2) (3)
L
L
C
C
-
-
-
-
Qty:
Option Descriptions
(1) Outside Diameter
  Select
8313 for 3.13 inch OD
8400 for 4.00 inch OD
8450 for 4.50 inch OD
(2) Inside Diameter
  Select
200 for 2.00 inch ID
213 for 2.13 inch ID
300 for 3.00 inch ID
313 for 3.13 inch ID
(3) Load Range
  Select
1K for 0-1000 lb range
3K for 0-3000 lb range
5K for 0-5000 lb range
10K for 0-10000 lb range
25K for 0-25000 lb range
50K for 0-50000 lb range
100K for 0-100000 lb range
200K for 0-200000 lb range
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
