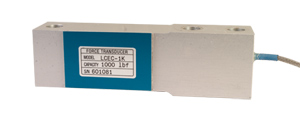

Model LCEC load cells are designed to operate in all weather or
wet industrial environments. Their low profile and high side load
capability simplify mechanical installation considerations.
Their weather sealing, high precision and repeatability make them
ideally suited for rugged industrial applications such as testing,
batching, weigh pits and other applications exposed to the elements.
Supplied with 10 ft (3m) Integral Cable.
SPECIFICATIONS Excitation: 10 Vdc (15V max) Output: 3 mV/V nominal Calibration: NIST-traceable Linearity: ±0.03% FS Hysteresis: ±0.02% FS Repeatability: ±0.01% FS Creep (after 20 min): ±0.03% Zero Balance: ±1% FS Operating Temp Range: -55 to 90°C (-65 to 200°F) Compensated Temp Range: -15 to 65°C (0 to 150°F) Thermal Effects: Zero: ±0.0015% rdg/°F max Span: ±0.0008% FS/°F max Safe Overload: ±150% of capacity Ultimate Overload: ±300% of capacity Input Resistance: 350 Ω +50/-3.5 Ω Allowable Side Load at Rated Load: 50% rated capacity Protection Class: IP67 Output Resistance: 350 ±3.5 Ω Construction: Aluminum Electrical: 3 m (10') insulated 4-conductor shielded color-coded cable
† Price are shown in RMB.
Note: NIST Traceable Calibration Included Ordering Example: (1) LCEC-250 is a 250 lb capacity load cell, ¥3,870.00
