Miniature Compression Load Cell | 25 to 50,000 lb
LCGD

LCGD:Miniature Compression Load Cell | 25 to 50,000 lb
Click for larger image.

• 5-Pt NIST Traceable Calibration Included
• High Accuracy
• 59 kOhm Shunt Cal Data Included
• Low Profile
• Miniature Size

View related products - Load Cells, Force Sensors and Torque Transducers

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

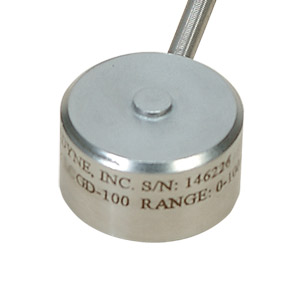

The LCGD Series miniature low profile load cells are compression load cells with excellent long term stability. An all stainless steel construction assures reliability in severe industrial environments and a 5-pt NIST traceable calibration is included with each load cell.
These units are designed to operate by mounting on a flat surface, and they have a load button machined as an integral part of the basic load cell.

The LCGD is also available in metric configurations, with ranges from 0-100 N to 0-200kN. Please see the LCMGD for complete details, or contact our Pressure department for more information..
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 LCGD-25 82 Weeks   ¥8,170.00    0 - 25 LB capacity Load Cell
 LCGD-50 2 Weeks   ¥8,170.00    0 - 50 LB capacity Load Cell
 LCGD-100 2 Weeks   ¥7,735.00    0 - 100 LB capacity Load Cell
 LCGD-250 In Stock   ¥6,895.00    0 - 250 LB capacity Load Cell
 LCGD-500 In Stock   ¥6,070.00    0 - 500 LB capacity Load Cell
 LCGD-1K In Stock   ¥6,070.00    0 - 1,000 LB capacity Load Cell
 LCGD-2K In Stock   ¥6,070.00    0 - 2,000 LB capacity Load Cell
 LCGD-5K 2 Weeks   ¥7,380.00    0 - 5,000 LB capacity Load Cell
 LCGD-10K In Stock   ¥6,990.00    0 - 10,000 LB capacity Load Cell
 LCGD-15K 10 Weeks   ¥8,715.00    0 - 15,000 LB capacity Load Cell
 LCGD-20K 12 Weeks   ¥8,250.00    0 - 20,000 LB capacity Load Cell
 LCGD-30K 2 Weeks   ¥8,250.00    0 - 30,000 LB capacity Load Cell
 LCGD-50K 2 Weeks   ¥9,160.00    0 - 50,000 LB capacity Load Cell
 Compatible Meters
 DP25B-S 2 Weeks   ¥3,525.00    4-Digit strain meter with excitation
 DP41-S 2 Weeks   ¥7,555.00    6-Digit strain meter with excitation
† Price are shown in RMB.

 Ordering Example: (1) LCGD-25 0 -25 lb capacity load cell, ¥8,170.00
