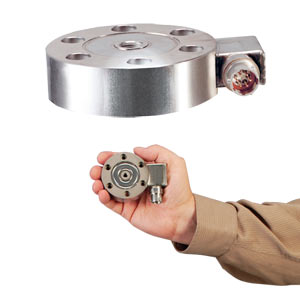

Low Profile "Pancake Style" Load Cell |
| LCHD |
|
 |
|
|
Low Profile Tension or Compression Load Cell
high accuracy
 |
| Click for larger image. |
|
|
¥
9,945.00
LCHD-25
|
| • |
5 Point NIST Traceable Calibration, Certificate Supplied
|
| • |
0.25% Interchangeability for Scale Applications
|
| • |
All Stainless Steel Construction
|
| • |
Rugged Heavy Duty Design
|
| • |
High Accuracy
|
| • |
Low Profile For Easy Installation
|
| • |
See Related Link Below for Ready Made Cable Assemblies
|
| • |
New! Waterproof Model - See Model LSHD on Related Links at bottom of page
|
View related products - Load Cells, Force Sensors and Torque Transducers
|
| |
|
|
|
 |
Low profile load cells are basically compression and tension/compression load cells. Mounting holes and female threads provide easy installation. Used frequently in weighing research and in-line force monitoring.
The LCHD is also available in metric configurations, with ranges from 0-2.5 to 0-10,000 kgf and metric threads.
Please see the LCMHD for complete details, or contact our Pressure department for more information.
SPECIFICATIONS
Excitation: 10 Vdc (15 V max)
Output (FSO):
≤25 lb/10 kgf: 2 mV/V ±0.25%
≥50 lb/20 kgf: 3 mV/V ±0.25%
5-Point Calibration (in Tension): 0%, 50%, 100%, 50%, 0%
Linearity:
≤25 lb/10 kgf: ±0.20% FSO
≥50 lb/20 kgf: ±0.10% FSO
Hysteresis:
≤25 lb/10 kgf: ±0.10% FSO
≥50 lb/20 kgf: ±0.08% FSO
Repeatability:
≤25 lb/10 kgf: ±0.1% FSO
≥50 lb/20 kgf: ±0.03% FSO
Zero Balance: ±1% of FSO
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: 0.0036% FSO/°C
Span: 0.0036% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 350 ±10 Ω
Output Resistance: 350 ±10 Ω
FS Deflection: 0.025 to 0.076 mm (0.001 to 0.003") typical
Construction: 17-4 PH stainless steel
Electrical:
≤5000 lb/2000 kgf: DT02H-10-6P
>5000 lb/2500 kgf: MS3102E-14S-6P (or equiv.)
Mating Connector (Included):
≤5000 lb/2000 kgf: PT06F10-6S
>5000 lb/2500 kgf: MS3102E-14S-6S (or equiv.)
Compatible Meters: DP41-S, DP25-S, LDP63000-S
POPULAR OPTIONS(add as suffix)
-5T ±5 Vdc Output (0 to 5 Vdc in either direction), add ranges ≥5000 lb
-DUAL Dual Bridge ranges ≤5000 lb; ranges >5000 lb
-TC1 Extended Temperature Range -50 to 200°F
-TC2 Extended Temperature Range -50 to 325°F
-OL Overload Stops - Consult factory
-TEDS Option are available.
|
|
|
|
|
|
† Price are shown in RMB.
Note: All LCHD Series load cells include a 5 point NIST traceable calibration certificate.
Ordering Example: (1) LCHD-500 is a 500 lb capacity tension/compression load cell, with mating connector,, ¥10,315.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Range
|
| |
Select
5 for 5 lb range
10 for 10 lb range
25 for 25 lb range
50 for 50 lb range
100 for 100 lb range
250 for 250 lb range
500 for 500 lb range
1K for 1000 lb range
2K for 2000 lb range
3K for 3000 lb range
4K for 4000 lb range
5K for 5000 lb range
7.5K for 7500 lb range
10K for 10000 lb range
15K for 15000 lb range
20K for 20000 lb range
30K for 30000 lb range
50K for 50000 lb range
|
(2)
|
Options
|
| |
Select
Nothing(leave field blank) for None
-5T for 5 Vdc Output
-DUAL for Dual Bridge
-TC1 for Extended Temperature Range -50 to 200F
-TC2 for Extended Temperature Range -50 to 350F
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
|
|
|
|
|
|
|
| |
|
