Full Bridge Thin Beam Load Cells for Loads 1/4 to 40 LB
LCL

Full Bridge Thin Beam Load Cells for Loads 1/4 to 40 LB
LCL:Full Bridge Thin Beam Load Cells for Loads 1/4 to 40 LB
Click for larger image.

¥ 1,330.00  LCL-040
• Measures Force, or Displacement
• Thermally Matched, Fully Active, Full Bridge Gage for Optimum Temperature Tracking

View related products - Load Cells, Force Sensors and Torque Transducers

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

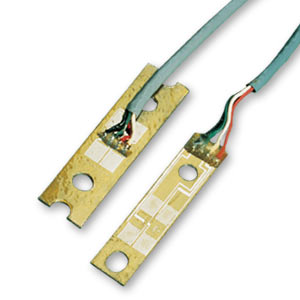

When small load measurements are required, the OMEGA ® LCL Series thin beam load cells are exceptionally well suited. The LCL Series is designed to measure many different parameters found in medical instrumentation, home appliances, process control, robotics, automotive and many other high volume applications. A specially developed integrated strain gage includes all balancing, compensating and conductive elements and is laminated to the beam to provide excellent stability and reliability.

SPECIFICATIONS
Excitation: 5 Vdc, 12V max
Rated Output: 2 mV/V ±20%
(to minimize ±20% tolerance, end user must calibrate with a known weight)
Zero Balance: ±0.75 mV/V
Combined Error: ±0.50% FS
Operating Temperature: -54 to 93°C (-65 to 200°F)
Compensated Temperature: -7 to 49°C (20 to 120°F)
Temperature Effects:
   Zero balance: 0.02% FS/°F
   Output: 0.02%/°F
Resistance (Input and Output): 1200 ±300 Ω
Insulation Resistance: 1000 Ω @ 50 Vdc
Seal: Urethane coated
Safe Overload: 150% FS
Full Scale Deflection: 0.25 to 1.27 mm (0.010 to 0.050")
Lead Wire: 9" shielded PVC 4-conductor 30 AWG
Material: >816 gf (2lb): 301 SS
             ≤816 gf (2 lb) beryllium copper
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 LCL-113G 9 Weeks   ¥1,180.00    Thin beam load cell with 113 gram capacity
 LCL-227G 2 Weeks   ¥1,330.00    Thin beam load cell with 227 gram capacity
 LCL-454G 2 Weeks   ¥1,280.00    Thin beam load cell with 454 gram capacity
 LCL-816G In Stock   ¥1,230.00    Thin beam load cell with 816 gram capacity
 LCL-005 7 Weeks   ¥1,300.00    Thin beam load cell with 5 pound capacity
 LCL-010 2 Weeks   ¥1,265.00    Thin beam load cell with 10 pound capacity
 LCL-020 2 Weeks   ¥1,335.00    Thin beam load cell with 20 pound capacity
 LCL-040 2 Weeks   ¥1,330.00    Thin beam load cell with 40 pound capacity
 MOUNTING HARDWARE
 LCL-CL1 In Stock   ¥269.00    Mounting kit for LCL-113G thru LCL-816G (required)
 LCM-CL1 2 Weeks   ¥650.00    Mounting kit for LCL-005 thru LCL-040 (required)
† Price are shown in RMB.

 Note: For detailed specifications and mounting considerations please link to PDF spec sheet below.
  Ordering Example: (1) LCL-113G 113 gram thin beam load cell, ¥1,180.00,  plus (1) LCL-CL1 mounting kit for LCL-113G, ¥269.00, ¥1,180.00 + 269.00 = $1,449.00
