S Beam Load Cells
All Stainless Steel with Metric Ranges ±10 kgF to ±10,000 kgF
LCM101 and LCM111 Series

S Beam Load Cells | Metric | Stainless Steel

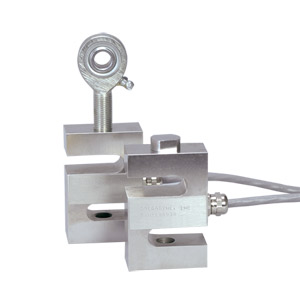

LCM101 and LCM111 Series:S Beam Load Cells All Stainless Steel with Metric Ranges ±10 kgF to ±10,000 kgF
Click for larger image.

¥ 4,730.00  LCM101-100
• 5 Point NIST Traceable Calibration with
59 kOhm Shunt Cal Data
• All Stainless Steel for Harsh Industrial Applications
• 0.25% Interchangeable for Multiple Load Cell Applications

View related products - Load Cells, Force Sensors and Torque Transducers

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

The LCM101 & LCM111 are also available in standard configurations, with 0-25 to 0-40,000 lb ranges and standard threads. Please see the LC101 for complete details, or contact our Pressure department for more information.


SPECIFICATIONS
Excitation: 10 Vdc, 15 Vdc max
Output: 3 mV/V ±0.0075 mV/V
Linearity: ±0.03% FSO (0.1% 40 K)
Hysteresis: ±0.02% FSO (0.1% 40 K)
Repeatability: ±0.01% FSO (0.05% 40 K)
Zero Balance: ±1% FSO
Operating Temp Range: -40 to 93°C (-40 to 200°F)
Compensated Temp Range: 17 to 71°C (60 to 160°F)
Thermal Effects:
   Zero: 0.002% FSO/°C
   Span: 0.002% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 350 ±10 Ω
Output Resistance: 350 ±10 Ω
Full Scale Deflection: 0.25 to 0.51 mm (0.010 to 0.020")
Construction: 17-4 PH stainless steel
Electrical (LC101/LCM101): 4-Conductor Shielded Cable
   <100 kgf/250 lb: 9 m (30') 24 AWG
   250 to 1000 kgf/250 to 2000 lb: 9 m (30') 20 AWG
   ≥1500 kgf/3000 lb: 4.5 m (15') 20 AWG
Mating Connector (LC111/LCM111):
   ≤100 kgf/200 lb: PT06F8-4S, sold separately
   ≥250 kgf/250 lb: PT06F10-6S, sold separately
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 LCM101 - Cable Connection Models
 LCM101-10 20 Weeks   ¥5,020.00    Stainless steel "S" beam load cell with ±10 kgF range
 LCM101-25 2 Weeks   ¥4,585.00    Stainless steel "S" beam load cell with ±25 kgF range
 LCM101-50 2 Weeks   ¥4,695.00    Stainless steel "S" beam load cell with ±50 kgF range
 LCM101-100 In Stock   ¥4,730.00    Stainless steel "S" beam load cell with ±100 kgF range
 LCM101-250 2 Weeks   ¥4,730.00    Stainless steel "S" beam load cell with ±250 kgF range
 LCM101-500 20 Weeks   ¥5,405.00    Stainless steel "S" beam load cell with ±500 kgF range
 LCM101-1K 20 Weeks   ¥4,730.00    Stainless steel "S" beam load cell with ±1000 kgF range
 LCM101-1.5K 20 Weeks   ¥5,560.00    Stainless steel "S" beam load cell with ±1500 kgF range
 LCM101-2K 20 Weeks   ¥6,750.00    Stainless steel "S" beam load cell with ±2000 kgF range
 LCM101-5K 20 Weeks   ¥8,495.00    Stainless steel "S" beam load cell with ±5000 kgF range
 LCM101-10K 20 Weeks   ¥10,210.00    Stainless steel "S" beam load cell with ±10,000 kgF range
 LCM111 - Twist-Lock Connector Models
 LCM111-10 20 Weeks   ¥4,695.00    Stainless steel "S" beam load cell with ±10 kgF range
 LCM111-25 20 Weeks   ¥4,695.00    Stainless steel "S" beam load cell with ±25 kgF range
 LCM111-50 2 Weeks   ¥4,980.00    Stainless steel "S" beam load cell with ±50 kgF range
 LCM111-100 20 Weeks   ¥4,695.00    Stainless steel "S" beam load cell with ±100 kgF range
 LCM111-250 2 Weeks   ¥4,980.00    Stainless steel "S" beam load cell with ±250 kgF range
 LCM111-500 20 Weeks   ¥4,695.00    Stainless steel "S" beam load cell with ±500 kgF range
 LCM111-1K 2 Weeks   ¥5,020.00    Stainless steel "S" beam load cell with ±1000 kgF range
 LCM111-1.5K 20 Weeks   ¥5,500.00    Stainless steel "S" beam load cell with ±1500 kgF range
 LCM111-2K 2 Weeks   ¥6,700.00    Stainless steel "S" beam load cell with ±2000 kgF range
 LCM111-5K 20 Weeks   ¥6,955.00    Stainless steel "S" beam load cell with ±5000 kgF range
 LCM111-10K 20 Weeks   ¥10,185.00    Stainless steel "S" beam load cell with ±10,000 kgF range
 Accessories
 PT06F8-4S 2 Weeks   ¥303.00    Mating Connector for LCM111 ranges ≤100 kg (not included)
 PT06F10-6S In Stock   ¥340.00    Mating Connector for LCM111 ranges ≥250 kg (not included)
 Swivel Rod Ends
 MREC-M6M 2 Weeks   ¥232.00    Swivel Rod End for 10 to 100 kgF ranges
 MREC-M12M 2 Weeks   ¥232.00    Swivel Rod End for 250 to 1000 kgF ranges
 MREC-M16M 2 Weeks   ¥460.00    Swivel Rod End for 1500 to 2000 kgF ranges
 MREC-M24M 2 Weeks   ¥10,060.00    Swivel Rod End for 5000 to 10,000 kgF ranges
 Load Buttons
 MLBC-M6 12 Weeks   ¥670.00    Load Button for 10 to 100 kgF ranges
 MLBC-M12 14 Weeks   ¥670.00    Load Button for 250 to 1000 kgF ranges
 MLBC-M16 12 Weeks   ¥875.00    Load Button for 1500 to 2000 kgF ranges
 MLBC-M24 12 Weeks   ¥1,010.00    Load Button for 5000 to 10,000 kgF ranges
† Price are shown in RMB.

 Note: To order connector style, change Model No. to LCM111, no extra charge. Mating Connector, PT06F10-6S $26.50 or PT06F8-4S $24.00, sold separately.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
  Ordering Example: (1) LCM101-2K is a ±2,000 kgF capacity cable style, ¥6,750.00
