Subminiature Tension & Compression Load Cell | 19mm Diameter | 100 to 500N |
| LCM201 Series |
|
 |
|
|
|
|
 |

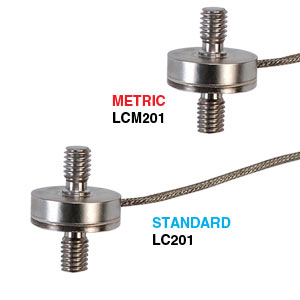

OMEGA’s LCM201 Series subminiature load cell is designed for the demanding environment of industrial automation and robotics. With a diameter of only 19 mm (0.75”) and all stainless steel construction, it can fit into small systems and survive harsh environments. The LCM201 delivers high accuracy and long term reliability in a subminiature package.
The LCM201 is also available in standard configurations, with 0-25 to 0-300 lb ranges and standard threads.
Please see the LC201 for complete details, or contact our Pressure department for more information..
SPECIFICATIONS
Excitation: 10 Vdc, 15 Vdc max
Output: 2 mV/V nominal
Accuracy: ±1.0% FSO linearity, hysteresis, repeatability combined
5-Point Calibration (in Tension): 0%, 50%, 100%, 50%, 0%
Zero Balance: ±2% FSO
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Protection Class: IP54
Thermal Effects:
Zero: 0.018% FSO/°C
Span: 0.018% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 360 Ω minimum
Output Resistance: 350 ±10 Ω
Construction: Stainless steel
Electrical: 1.5 m (5') 4-conductor shielded cable with compensation board
|
|
|
|
|
|
† Price are shown in RMB.
Note: All LCM201 load cells are calibrated in tension and include a 5-Point calibration certificate at 0%, 50%, 100%, 50%, 0% of full scale with 59 kOhm shunt cal data.
Ordering Example: (1) LCM201-100N is a subminiature tension and compression load cell with ± 100 Newton range, ¥6,915.00
|
|
|
|
|
| |
|
