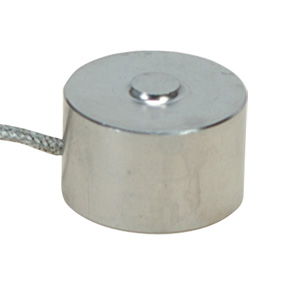

The LCM302 Series is only 19 mm ¾" in diameter and fits in the smallest places. Its high ±0.5% accuracy and small package solve many industrial force measurement applications. All stainless steel construction and high quality strain gauge assures long term reliability in industrial environments.
The LCM302 is also available in standard configurations, with ranges from 0-25 to 0-1,000 lb.
Please see the LC302 for complete details, or contact our Pressure department for more information..
SPECIFICATIONS Excitation: 5 Vdc, 15 Vdc max Output: 1 mV/V (nominal) Accuracy: ±0.5% FSO (linearity, hysteresis and repeatability combined) Zero Balance: ±2% FSO Deflection: 0.025 to 0.075 mm Operating Temp Range: -54 to 125°C (-65 to 250°F) Compensated Temp Range: 16 to 71°C (60 to 160°F) Thermal Effects: Zero: 0.009% FSO/°C Span: 0.036% FSO/°C Safe Overload: 150% of Capacity Ultimate Overload: 300% of Capacity Bridge Resistance: 350 Ohms minimum Construction: Stainless Steel Electrical: 1.5 m (5 ft) 4 Conductor Shielded Cable
† Price are shown in RMB.
Note: All LCM302 load cells include a 5-Point calibration certificate at 0%, 50%, 100%, 50%, 0% of full scale. Ordering Example: (1) LCM302-500N is a 19 mm diameter compression load cell with 0 to 500 Newton range, ¥3,915.00
