Heavy Duty Constant Momemt Beam Load Cells, Metric, ±25 kgF to ±5,000 kgF
LCM602 Series

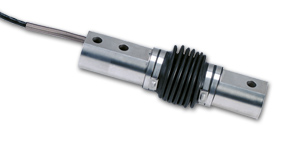

LCM602 Series:Heavy Duty Constant Momemt Beam Load Cells, Metric, ±25 kgF to ±5,000 kgF
Click for larger image.

• 5-Point NIST Traceable Calibration with 59 kOhm Shunt Cal Data Included
• 0.25% Interchangeability for Scale Applications
• High Quality Stainless Steel Construction
• Rugged, Economical Design

View related products - Load Cells, Force Sensors and Torque Transducers

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

Model LCM602 is a heavy duty industrial load cell designed for industrial weighing and scale applications. The LCM602 offers a highly accurate, rugged design in a small, economical package.

The LCM602 is also available in standard configurations, with 0-50 to 0-10,000 lb ranges. Please see the LC602 for complete details, or contact our Pressure department for more information..

SPECIFICATIONS
Excitation: 10 Vdc (15V max)
Output:
   ≤500 lb/250 kgf: 2 mV/V
   >500 lb/250 kgf: 3 mV/V ±0.25 % FSO
5-Point Calibration (in Compression): 0%, 50%, 100%, 50%, 0%
Linearity: ±0.03% FSO
Hysteresis:
   ≤500 lb/250 kgf: ±0.05% FSO
   >500 lb/250 kgf: ±0.03% FSO
Repeatability: ±0.02% FSO
Zero Balance: ±1.0% FSO
Operating Temp Range: -34 to 82°C (-30 to 180°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
   Zero: ±0.002% FSO/°F
   Span: ±0.001% FSO/°F
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 350 Ω minimum
Protection Class: IP65
Output Resistance: 350 ±10 Ω
Full Scale Deflection: 0.010 to 0.015" typical
Construction: Stainless steel
Electrical: 4.6 m (15') PVC insulated, 4-conductor shielded color-coded cable
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 LCM602-25    Consult sales   ±25 kgF heavy duty beam load cell
 LCM602-50 2 Weeks   ¥7,520.00    ±50 kgF heavy duty beam load cell
 LCM602-250    Consult sales   ±250 kgF heavy duty beam load cell
 LCM602-500    Consult sales   ±500 kgF heavy duty beam load cell
 LCM602-750    Consult sales   ±750 kgF heavy duty beam load cell
 LCM602-1K    Consult sales   ±1000 kgF heavy duty beam load cell
 LCM602-2.5K    Consult sales   ±2500 kgF heavy duty beam load cell
 LCM602-5K    Consult sales   ±5000 kgF heavy duty beam load cell
† Price are shown in RMB.
