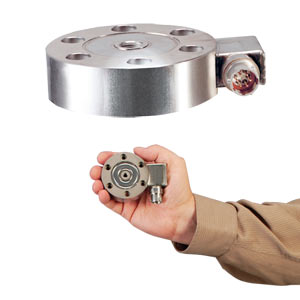

Low Profile Tension and Compression Load Cells, Metric, ±2.5 kgF to ±10,000 kgF |
| LCMHD Series |
|
 |
|
|
|
|
 |
The LCMHD is also available in standard configurations, with 0-5 to 0-500,000 lb ranges and standard threads.
Please see the LCHD for complete details, or contact our Pressure department for more information..
SPECIFICATIONS
Excitation: 10 Vdc (15 V max)
Output (FSO):
≤25 lb/10 kgf: 2 mV/V ±0.25%
≥50 lb/20 kgf: 3 mV/V ±0.25%
5-Point Calibration (in Tension): 0%, 50%, 100%, 50%, 0%
Linearity:
≤25 lb/10 kgf: ±0.20% FSO
≥50 lb/20 kgf: ±0.10% FSO
Hysteresis:
≤25 lb/10 kgf: ±0.10% FSO
≥50 lb/20 kgf: ±0.10% FSO
Repeatability:
≤25 lb/10 kgf: ±0.1% FSO
≥50 lb/20 kgf: ±0.03% FSO
Zero Balance: ±1% of FSO
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: 0.0036% FSO/°C
Span: 0.0036% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 350 ±10 Ω
Output Resistance: 350 ±10 Ω
FS Deflection: 0.025 to 0.076 mm (0.0001 to 0.0003") typical
Construction: 17-4 PH stainless steel
Electrical:
≤5000 lb/2000 kgf: DT02H-10-6P
>5000 lb/2500 kgf: MS3102E-14S-6P (or equiv.)
Mating Connector (Included):
≤5000 lb/2000 kgf: PT06F10-6S
>5000 lb/2500 kgf: MS3102E-14S-6S (or equiv.)
POPULAR OPTIONS (Additional Cost)
0 to 5 Vdc Output (≥5000 kg only): "-5V" $135
Overload Stops: "-OL" $65
Dual Bridge: "-DUAL" $250
Extended Temperature Range:
-45 to 93°C (-50 to 200°F): "-TC1" $50
-45 to 163°C (-50 to 325°F): "-TC2" $125
Compatible Meters: DP25B-S, DP41-S, DP41-B. See section D for more informations.
|
|
|
|
|
|
† Price are shown in RMB.
Ordering Example: (1) LCMHD-500 is a 500 kgF capacity tension/compression load cell (mating connector included), ¥9,840.00
|
|
|
|
|
| |
|
