Hydrostatically Compensated Load Cells for Underwater Applications

LCUC

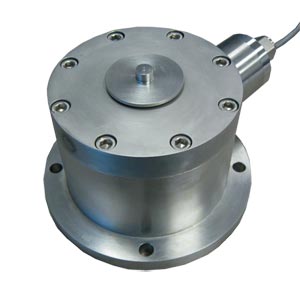

LCUC:Hydrostatically Compensated Load Cells for Underwater Applications
Click for larger image.

All Stainless Steel Construction
NIST Traceable Calibration Included
Accuracy 0.25%
Heavy Duty Construction for High Capacity Loads
High Output 3 mV/V Signal

View related products - Load Cells, Force Sensors and Torque Transducers

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

This item is discontinued.


The LCUC Series hydrostatically compensated compression load cell is a unique load cell designed for submerged or underwater operation. Applications include dry docks, marine weighing, submerged platforms and industrial weighing applications where pit flooding is common. The all stainless steel construction and rugged design give the LCUC high accuracy and high reliability in the tough submerged environment.

SPECIFICATIONS
Output: 3 mV/V ± 0.25 % FSO
Excitation: 10 Vdc (15 V Max)
Accuracy: ±0.25% FSO Combined Linearity, Hysteresis and Repeatability
Hydrostatic Effect on Zero: ±0.5% FSO per 500 psi
Zero Balance: ±1.0% FSO
Operating Temp. Range: 2 to 107°C (35 to 225°F)
Compensated Temp. Range: 16 to 71°C (60 to 160°F)
Thermal Effects: Zero: ±0.005% FSO/°F Span: ±0.005% Rdg/°F
Safe Overload: 300% of Capacity
Ultimate Overload: 300% of Capacity
Input Resistance: 360 Ohms
Output Resistance: 350 ±5 Ohms
Construction: 17-4 PH Stainless Steel
Electrical: 3 ft (0.9 m) 4-conductor, shielded PVC Cable
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

 Part Number   Availability   Price(RMB)   Description    Qty.
 LCUC-100    Consult sales   0-100 lb capacity hydrostatically compensated compression load cell
 LCUC-250    Consult sales   0-250 lb capacity hydrostatically compensated compression load cell
 LCUC-500    Consult sales   0-500 lb capacity hydrostatically compensated compression load cell
 LCUC-1K    Consult sales   0-1,000 lb capacity hydrostatically compensated compression load cell
 LCUC-2.5K    Consult sales   0-2,500 lb capacity hydrostatically compensated compression load cell
Price are shown in RMB.
