Platform Scales, Powder Coated or Stainless Steel Deck

LSC6400

Remote Platform Scales, Powder Coated or Stainless Steel

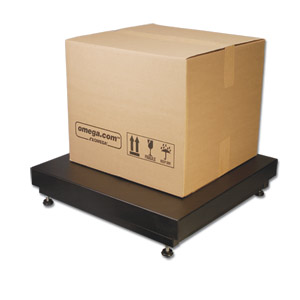

LSC6400:Platform Scales, Powder Coated or Stainless Steel Deck

Click for larger image.

^¥ 8,280.00 LSC6400-1818-100

•	Heavy Duty Industrial Construction
•	1 Part in 5000 Accuracy
•	Shipping and Manifest Systems
•	In-Line Weighing and Checkweighing
•	Parts Counting or Weighing
•	In-Motion Weighing Systems
•	General Purpose Weighing Applications
•	For use with Remote Indicators
View related products - Load Cells, Force Sensors and Torque Transducers

With their rugged design and high 1 part in 5000 accuracy, the LSC6400 Series platform scales are ideal for industrial applications. Standard features include ranges from 100 to 1000 lb, durable powder-coated or stainless steel platforms, positive overload protection, full-frame design, and adjustable leveling feet.

SPECIFICATIONS
Output: 2 mV/V +/- 10% (end user must calibrate)
Excitation: 15 V max
Linearity: 0.01%
Hysteresis: 0.02%
Connection: 3 m (10') cable
Shipping Weight:
    18 x 18": 30 kg (65 lb)
    18 x 24": 34 kg (75 lb)
    24 x 24": 39 kg (85 lb)
Construction:
    STD: Mild steel with premium powder coated platform
    SS: All stainless steel (frame and platform) with environmentally sealed load cell

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Powder Coated

LSC6400-1818-100	7 Weeks	¥8,280.00	100 x 0.01 lb/45 x 0.005 kg	qty.

LSC6400-1818-250	7 Weeks	¥8,280.00	250 x 0.02 lb/114 x 0.009 kg	qty.

LSC6400-1818-500	9 Weeks	¥8,330.00	500 x 0.05 lb/227 x 0.023 kg	qty.

LSC6400-1818-1K	9 Weeks	¥9,535.00	1000 x 0.1 lb/455 x 0.045 kg	qty.

LSC6400-1824-100	7 Weeks	¥9,550.00	100 x 0.01 lb/45 x 0.005 kg	qty.

LSC6400-1824-250	7 Weeks	¥9,550.00	250 x 0.02 lb/114 x 0.009 kg	qty.

LSC6400-1824-500	7 Weeks	¥9,550.00	500 x 0.05 lb/227 x 0.023 kg	qty.

LSC6400-1824-1K	7 Weeks	¥9,550.00	1000 x 0.1 lb/455 x 0.045 kg	qty.

LSC6400-2424-100	7 Weeks	¥10,830.00	100 x 0.01 lb/45 x 0.005 kg	qty.

LSC6400-2424-250	7 Weeks	¥10,830.00	250 x 0.02 lb/114 x 0.009 kg	qty.

LSC6400-2424-500	7 Weeks	¥10,830.00	500 x 0.05 lb/227 x 0.023 kg	qty.

LSC6400-2424-1K	9 Weeks	¥10,830.00	1000 x 0.1 lb/455 x 0.045 kg	qty.


All Stainless Steel

LSC6400-1818-100SS	9 Weeks	¥16,750.00	100 x 0.01 lb/45 x 0.005 kg	qty.

LSC6400-1818-250SS	7 Weeks	¥16,655.00	250 x 0.02 lb/114 x 0.009 kg	qty.

LSC6400-1818-500SS	7 Weeks	¥16,655.00	500 x 0.05 lb/227 x 0.023 kg	qty.

LSC6400-1818-1KSS	7 Weeks	¥16,655.00	1000 x 0.1 lb/455 x 0.045 kg	qty.

LSC6400-1824-100SS	7 Weeks	¥18,050.00	100 x 0.01 lb/45 x 0.005 kg	qty.

LSC6400-1824-250SS	7 Weeks	¥18,050.00	250 x 0.02 lb/114 x 0.009 kg	qty.

LSC6400-1824-500SS	7 Weeks	¥18,050.00	500 x 0.05 lb/227 x 0.023 kg	qty.

LSC6400-1824-1KSS	7 Weeks	¥18,050.00	1000 x 0.1 lb/455 x 0.045 kg	qty.

LSC6400-2424-100SS	9 Weeks	¥19,445.00	100 x 0.01 lb/45 x 0.005 kg	qty.

LSC6400-2424-250SS	9 Weeks	¥19,445.00	250 x 0.02 lb/114 x 0.009 kg	qty.

LSC6400-2424-500SS	7 Weeks	¥19,445.00	500 x 0.05 lb/227 x 0.023 kg	qty.

LSC6400-2424-1KSS	7 Weeks	¥19,445.00	1000 x 0.1 lb/455 x 0.045 kg	qty.


Reference

CE-1910		Consult sales	Book: Applied Structural and Mechanical Vibrations	qty.

† Price are shown in RMB.

Note: Comes with complete operator’s manual.
Ordering Example: (1) LSC6400-1818-500 18 x 18'' powder-coated remote platform scale with 500 lb range, ¥8,330.00
