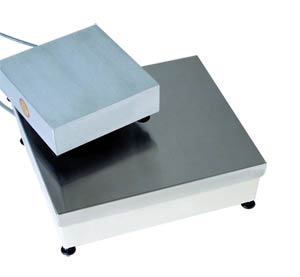

Sustained accuracy and long life are
built into every LSC7000 Series
remote platform scale. Their clean,
durable design makes these scales
ideal for weighing or counting
applications. The 2 and 5 lb ranges
have a 203 x 203 mm (8 x 8")
aluminum cover and a rugged
fabricated construction. Ranges
10 lb and up have 305 x 356 mm
(12 x 14") stainless steel covers
and a rugged cast structure. Both
structures are designed to give years
of accurate, trouble-free service.
SPECIFICATIONS Output: 10 lb ranges 1 mV/V, 2 mV/V all other ranges
Excitation: 15 V max
Linearity: 0.01%
Hysteresis: 0.02%
Connection: 3 m (10') cable
Dimensions: 203 x 203 mm (8 x 8")
305 x 356 mm (12 x 14")
Shipping Weight: 8 x 8": 3.7 kg (8 lb)
12 x 14": 8 kg (18 lb)
† Price are shown in RMB.
Note: Comes with complete operator’s manual. Ordering Example: (1) LSC7000-5 8 x 8'' aluminum remote platform scale with 5 lb range, ¥6,065.00
