USB Digital I/O Interface
OMG-USB-DIO48 and OMG-USB-DIO96
Lifetime warranty

USB Digital I/O Interface
OMG-USB-DIO48 and OMG-USB-DIO96:USB Digital I/O Interface

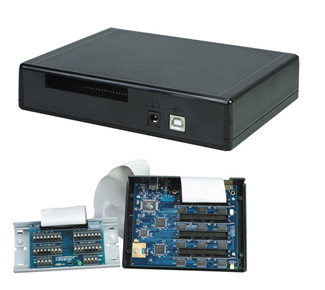

Click for larger image.

• Models with 48 and 96 Channels
of Buffered Digital I/O
• 8255 Compatible
• 10K Pull Up Resistors
on Each Port Bit
• True Hot
Swapping/Auto Configuration
• Includes Drivers and Utility software for 98/ME/ NT/2000/XP

View related products - USB, RS232, RS485 and Ethernet Data Acquisition Systems

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

The OMG-USB-DIO Series contains 48 or 96 channels of buffered digital I/O emulating 8255s for industrial control applications. 10K pull up resistors are included on each port bit. The OMG-USB-DIO series contains 8 bit I/O ports configurable as inputs or outputs. This gives the user the ability to customize the combination of inputs or outputs as needed. In addition, the low order bit of the first port can be set to generate an interrupt for status monitoring applications. A special factory configurable interrupt feature allows the user to request conditional I/O combinations for interrupt generation. When the I/O combinations occurs, a hardware interrupt is triggered.

Software
The OMG-USB-DIO Series includes drivers, utilities, and programming samples for Windows 98/ME/NT/2000/XP to aid in the development of reliable applications for the OMG-USB-DIO family of USB to digital I/O interfaces.

Connectors and Terminal Panels
All of the I/O signals are accessed through standard 50-pin connectors. The OMG-USB-DIO48 contains two connectors and the OMG-USB-DIO96 contains four connectors. OMEGA provides an optional OMG-TB07 terminal panel for wiring to the I/O connector. One terminal panel is required for each I/O connector. An OMG-CA167 cable is also needed for each terminal panel. The I/O connector is also compatible with industry standard relay racks. An OMGCA135 cable can be used to connect each I/O connector to a relay rack.

Specifications
Channels: 48,96
Operating Temperature: 0 to 50°C (32 to 122°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Humidity Range: 10 to 90% RH
Output: 64mA(sink), 32mA (source), TTL Level Logic
Power: from AC adapter
Connectors: (2 or 4) 50 Pin IDC
Physical Dimensions: 17.78 cm L x 13.34 cm W x 3.81 cm H (7.0 x 5.25 x 1.5")
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 OMG-USB-DIO48    Consult sales   48 channel digital I/O interface
 OMG-USB-DIO96    Consult sales   96 channel digital I/O interface
 OMG-TB07 2 Weeks   ¥675.00    50 pin terminal block(requires OMG-CA167)
 Accessories
 OMG-CA135 8 Weeks   ¥675.00    40 inch 50 pin edge cable, connects the OMG-USB-DIO to industry standard solid state relay racks
 OMG-CA167 8 Weeks   ¥170.00    40 inch 50 pin IDC cable, connects the OMG-USB-DIO to OMB-TB07
 OMG-DR102 8 Weeks   ¥170.00    DIN rail mounting kit
† Price are shown in RMB.

 Note: All OMG-USB-DIO interfaces include utility software and a complete user’s manual on CD-ROM, USB A to B Cable and 5V Power Supply.

 Related Links - Manual, Related Products
 Product Manual
   Download  OMG-USB-DIO48 - 48 Channel Digital I/O Interface Board
   Download  OMG-USB-DIO96 - 96 Channel Digital I/O Interface Board
