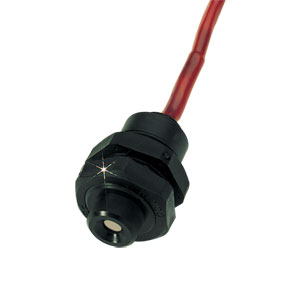

Fixed Mount Infrared Thermocouples with ABS Plastic Housing |
| OS36-01 Series |
|
 |
|
|
|
|
|
¥
2,040.00
OS36-01-J-50F
|
| • |
1:1 Approx. 60 degree Field of View
|
| • |
J, K, E or T Thermocouple Output Signal
|
| • |
Works with Standard Thermocouple Indicators and Controllers
|
| • |
Self-Powered
|
| • |
No Moving Parts
|
| • |
Temperature Compensated
|
| • |
Measurements to 290°C (550°F)
|
| • |
High Strength ABS Plastic Housing Meets NEMA Ratings
|
View related products - Infrared Temperature Measurement Instruments
|
| |
|
|
|
 |
The new OS36-01 Series of infrared thermocouples are a revolutionary addition to OMEGA’s expanded line of infrared thermocouples. These units feature an exceptionally strong, hermetically sealed ABS plastic housing that makes non-contact infrared temperature measurement more economical. The threaded head can be securely mounted through a bulkhead or threaded into a tapped hole. The OS36-01 Series produce repeatable temperature readings for use in a wide variety of process monitoring and quality control applications.
|
|
|
|
|
|
† Price are shown in RMB.
Note: Stripped leads are standard. To order with SMPW subminiature thermocouple connector pair with write-on windows, add suffix “-SMPW” to model number and add $12 to price. To order with OSTW standard size thermocouple connector pair with write-on windows, add suffix “-OSTW” to model number and add $12 to price.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
Ordering Example: (1) OS36-01-K-140F Compact infrared thermocouple type K 25 to 80°C/80 to 180°F range, ¥2,190.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Thermocouple Type
|
| |
Select
J for Type J
K for Type K
T for Type T
E for Type E
|
(2)
|
Temperature Range
|
| |
Select
50F for –18 to 27°C/0 to 80°F
80F for 10 to 49°C/50 to 120°F
98.6F for 16 to 39°C/60 to 102°F
140F for 25 to 80°C/80 to 180°F
180F for 70 to 104°C/160 to 220°F
240F for 95 to 130°C/200 to 270°F
280F for 125 to 155°C/260 to 310°F
340F for 145 to 175°C/290 to 350°F
440F for 170 to 250°C/340 to 480°F
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
|
|
|
|
|
|
|
| |
|
