Circuit Board Thermocouple Connectors, Standard and Miniature Size

PCC-SMP-(*)

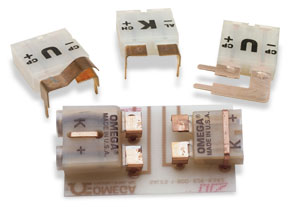

Click for larger image.

^¥ 3,070.00 PCC-SMP-K-100

•	New printing on connectors, please see description for details
•	For OEM Uses
•	Attaches Directly to Circuit Board, Mounting Clip with Each Connector
•	Perfect for Handheld Thermometers
•	J, K, T,E and U Calibrations
•	N Calibration Available in Mini-SMP Style Connector
•	Mount in Horizontal or Vertical Position
•	Optional Retainer Clip for TO-92 StyleTransistor Providing Cold Junctiion Compensation.
•	Accepts Either Standard or Miniature Size Male Connectors
•	Mounting Holes Shown in SPEC LINK Below
•	Thermocouple Connectors for PCB Board
•	Custom Units Designed for CE Compliance - Contact Sales
View related products - Thermocouple Connectors and Panel Systems

The miniature connector is available in either horizontal or vertical mounting style. These connectors are also available with closed ends or transistor retainer clips. The PCC-SMP optional transistor retainer clip accepts TO-92 style transistors for cold junction temperature measurements at the transition from thermocouple alloy to copper wire.

See below for updated printing on the connector:

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Solderable sockets for miniature thermocouple connectors: horizontal to the board

PCC-SMP-J-5	2 Weeks	¥307.00	For connector SMP, thermocouple type J, 5 pieces	qty.

PCC-SMP-J-50	5 Weeks	¥1,855.00	For SMP connectors, thermocouple type J, 50 pieces	qty.

PCC-SMP-J-100	2 Weeks	¥3,180.00	For SMP connectors, thermocouple type J, 100 pieces	qty.

PCC-SMP-K-5	2 Weeks	¥296.00	For SMP connectors, thermocouple type K, 5 pieces	qty.

PCC-SMP-K-50	5 Weeks	¥1,960.00	For SMP connectors, thermocouple type K, 50 pieces	qty.

PCC-SMP-K-100	2 Weeks	¥3,070.00	For SMP connectors, thermocouple type K, 100 pieces	qty.

PCC-SMP-T-5	2 Weeks	¥296.00	For SMP connectors, thermocouple type T, 5 pieces	qty.

PCC-SMP-T-50	2 Weeks	¥1,855.00	For SMP connectors, thermocouple type T, 50 pieces	qty.

PCC-SMP-T-100	5 Weeks	¥3,240.00	For SMP connectors, thermocouple type T, 100 pieces	qty.

PCC-SMP-UCB-5	2 Weeks	¥380.00	Circuit board connector for miniature connectors, Uncompensated, package of 5	qty.

PCC-SMP-UCB-50	5 Weeks	¥2,230.00	Circuit board connector for miniature connectors, Uncompensated, package of 50	qty.

PCC-SMP-UCB-100	2 Weeks	¥3,735.00	Circuit board connector for miniature connectors, Uncompensated, package of 100	qty.


Solderable sockets for miniature thermocouple connectors: horizontal to the board, with transistor holder

PCC-SMP-J-5-R	2 Weeks	¥325.00	For connector SMP, thermocouple type J, 5 pieces	qty.

PCC-SMP-J-50-R	5 Weeks	¥2,090.00	For SMP connectors, thermocouple type J, 50 pieces	qty.

PCC-SMP-J-100-R	2 Weeks	¥3,470.00	For SMP connectors, thermocouple type J, 100 pieces	qty.

PCC-SMP-K-5-R	2 Weeks	¥390.00	For SMP connectors, thermocouple type K, 5 pieces	qty.

PCC-SMP-K-50-R	2 Weeks	¥2,130.00	For SMP connectors, thermocouple type K, 50 pieces	qty.

PCC-SMP-K-100-R	2 Weeks	¥3,285.00	For SMP connectors, thermocouple type K, 100 pieces	qty.

PCC-SMP-T-5-R	2 Weeks	¥343.00	For SMP connectors, thermocouple type T, 5 pieces	qty.

PCC-SMP-T-50-R	5 Weeks	¥2,090.00	For SMP connectors, thermocouple type T, 50 pieces	qty.

PCC-SMP-T-100-R	2 Weeks	¥3,470.00	For SMP connectors, thermocouple type T, 100 pieces	qty.

PCC-SMP-UCB-5-R	2 Weeks	¥372.00	Circuit board connector for miniature connectors, Uncompensated, Retainer Clip, package of 5	qty.

PCC-SMP-UCB-50-R	5 Weeks	¥2,230.00	Circuit board connector for miniature connectors, Uncompensated, Retainer Clip, package of 50	qty.

PCC-SMP-UCB-100-R	2 Weeks	¥3,945.00	Circuit board connector for miniature connectors, Uncompensated, Retainer Clip, package of 100	qty.


Solderable sockets for miniature thermocouple connectors: perpendicular to the board

PCC-SMP-V-J-5	5 Weeks	¥296.00	For SMP connectors, vertical, thermocouple type J, 5 pieces	qty.

PCC-SMP-V-J-50	5 Weeks	¥1,920.00	For SMP connectors, vertical, thermocouple type J, 50 pieces	qty.

PCC-SMP-V-J-100	2 Weeks	¥3,240.00	For SMP connectors, vertical, thermocouple type J, 100 pieces	qty.

PCC-SMP-V-K-5	2 Weeks	¥296.00	For SMP connectors, vertical, thermocouple type K, 5 pieces	qty.

PCC-SMP-V-K-50	2 Weeks	¥1,855.00	For SMP connectors, vertical, thermocouple type K, 50 pieces	qty.

PCC-SMP-V-K-100	2 Weeks	¥3,070.00	For SMP connectors, vertical, thermocouple type K, 100 pieces	qty.

PCC-SMP-V-T-5	2 Weeks	¥307.00	For SMP connectors, vertical, thermocouple type T, 5 pieces	qty.

PCC-SMP-V-T-50	2 Weeks	¥1,960.00	For SMP connectors, vertical, thermocouple type T, 50 pieces	qty.

PCC-SMP-V-T-100	5 Weeks	¥3,375.00	For SMP connectors, vertical, thermocouple type T, 100 pieces	qty.

PCC-SMP-V-UCB-5	2 Weeks	¥380.00	Circuit board connector for miniature connectors, Uncompensated, Vertical, package of 5	qty.

PCC-SMP-V-UCB-50	5 Weeks	¥2,230.00	Circuit board connector for miniature connectors, Uncompensated, Vertical, package of 50	qty.

PCC-SMP-V-UCB-100	5 Weeks	¥3,735.00	Circuit board connector for miniature connectors, Uncompensated, Vertical, package of 100	qty.

† Price are shown in RMB.

Note:
**To order with optional transistor retainer clip, add suffix “-R” to model no.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)

Our PCC-OST connectors will not be available after December 31st, 2018. Please consider buying our round face PCC_SMP, or contact sales or our Temperature Engineering department.
Ordering Example: (1) PCC-SMP-K-100-R Circuit board connector for miniature connectors, type K calibration, with transistor retainer clips. Package of 100, ¥3,285.00

Part Number Builder

	(1)	(2)		(3)		(4)	(5)
P P C C C C - -			- -		- -
Qty:

Option Descriptions

(1)

Connector Size

Select
SMP for Miniature flat pin

(2)

Mounting Style

Select
Nothing(leave field blank) for Horizontal Mounting
-V for Vertical Mounting

(3)

Thermocouple Type

Select
UCB for Uncompensated (copper)
J for Type J
K for Type K
T for Type T
N for Type N
E for Type E

(4)

Pack Quantity

Select
5 for Pack of 5
50 for Pack of 50
100 for Pack of 100

(5)

Optional Transistor Mounting Clip

Select
Nothing(leave field blank) for No Clip
-R for TO-92 Style Transistor Retaining Clip

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
