Miniature Thermocouple Connectors Flat Pin with Write-on Window, Standard and Extended Temperature Range
SMPW and HMPW

SMPW and HMPW:Miniature Thermocouple Connectors Flat Pin with Write-on Window, Standard and Extended Temperature Range

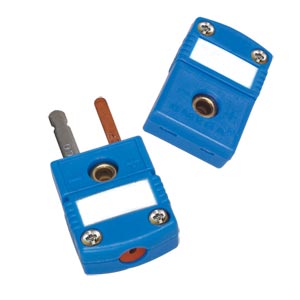

Click for larger image.

¥ 33.50  SMPW-T-M
• Color-Coded for ANSI or IEC
• Captive Cover Screws
• Write-on Window
• Chisel point connection pins
• Accepts Stranded or Solid Wire up to Size 20 AWG
• Quick Connect Contact Washers Internal Wire Divider
• SMPW Series , Glass filled Nylon construction is rated to 180°C (356°F)
• HMPW Series, Liquid Crystal Polymer (cadmium-free) construction is rated to 260°C (500°F)
• Form Fit Replacement for Legacy SMP Model

View related products - Thermocouple Connectors and Panel Systems

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

IEC Color Codes availableOMEGA SMPW thermocouple connectors are mini size flat 2 pin TC connectors designed to connect temperature sensor instrumentation and a temperature controller or process control HMI automation panel. Male 2 pole TC plugs and matched female 2 prong TC jack pairs are stock items.
Standard size round pin OSTW plugs, jacks and thermocouple TC connectors are also available - see related products below.
Accessories for wire, crimp, cable clamp, grommet and strain relief are in the accessories link.
SMPW is manufactured as a form fit replacement for the legacy SMP model.

Check out our latest design - SMPW-CC Series with integral cable clamp. in related products.

Installation Note: for HMPW-x-F
When using the rivet hole as a hold down point the maximum screw size is 3-48-NC or M2.5 x .45
Maximum Torque Value is 2 pounds-force inch or .230 kilogram-force meter .
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Glass Filled Nylon Connectors with Write-on Window, -29 to 180C
 SMPW-K-F In Stock   ¥36.00    Glass-filled nylon, with window, K thermocouple type, female connector
 SMPW-K-M In Stock   ¥30.50    Glass-filled nylon, with window, K thermocouple type, male connector
 SMPW-J-F In Stock   ¥36.00    Glass-filled nylon, with window, J thermocouple type, female connector
 SMPW-J-M In Stock   ¥30.50    Glass-filled nylon, with window, J thermocouple type, male connector
 SMPW-J-M In Stock   ¥30.50    Glass-filled nylon, with window, J thermocouple type, male connector
 SMPW-T-F In Stock   ¥36.00    Glass-filled nylon, with window, T thermocouple type, female connector
 SMPW-T-M In Stock   ¥33.50    Glass-filled nylon, with window, T thermocouple type, male connector
 SMPW-U-F In Stock   ¥39.50    Glass-filled nylon, with window, uncompensated (Cu/Cu), female
 SMPW-R/S-M In Stock   ¥30.50    Glass-filled nylon, with window, R/S thermocouple type, male
 SMPW-R/S-F In Stock   ¥39.50    Glass-filled nylon, with window, R/S thermocouple type, female
 SMPW-N-M In Stock   ¥30.50    Glass-filled nylon, with window, N thermocouple type, male connector
 SMPW-N-F In Stock   ¥36.00    Glass-filled nylon, with window, N thermocouple type, female
 SMPW-TI-M In Stock   ¥30.50    Glass-filled nylon, Type T thermocouple plug. With write-on window. IEC Colour
 SMPW-KI-M In Stock   ¥36.50    Glass-filled nylon, Type K thermocouple plug. With write-on window. IEC Colour
 SMPW-U-M In Stock   ¥30.50    Glass-filled nylon, Type CU plug. With write-on window.
 SMPW-E-M In Stock   ¥30.50    Glass-filled nylon, with window, E thermocouple type, male connector
 SMPW-C-M In Stock   ¥65.00    Glass-filled nylon, with window, C thermocouple type, male
 Liquid Crystal Polymer Connectors -29 to 260C
 HMPW-K-F In Stock   ¥50.00    Liquid Crystal Polymer, w/ window, K thermocouple type, female connector
 HMPW-K-M In Stock   ¥39.00    Liquid Crystal Polymer, w/ window, K thermocouple type, male connector
 HMPW-K-M-ROHS    Consult sales   LCP with window, K thermocouple type, mini male connector
 HMPW-R/S-M    Consult sales   LCP window, R/S thermocouple type, mini male connector
 Non-Window Connectors, -29 to 180C
 SMP-J-F In Stock   ¥44.00
 SMP-J-M In Stock   ¥36.50    Glass-filled nylon, no window, J thermocouple type, male connector
 SMP-K-F In Stock   ¥44.00    Glass-filled nylon, no window, K thermocouple type, female connector
 SMP-K-M In Stock   ¥36.50    Glass-filled nylon, no window, K thermocouple type, male connector
 SMP-K-F-ROHS    Consult sales   Glass-filled nylon, with window, K thermocouple type, mini male connector
 SMP-T-M-ROHS    Consult sales   Glass-filled nylon, with window, T thermocouple type, mini male connector
 SMPW-J-M-ROHS    Consult sales   Glass-filled nylon, with window, J thermocouple type, mini male connector
 SMP-K-M-ROHS    Consult sales   Glass-filled nylon, with window, K thermocouple type, mini male connector
 SMPW-U-M    Consult sales   Glass-filled nylon, with window, U thermocouple type, mini male connector
 SMPW-R/S-M-ROHS    Consult sales   Glass-filled nylon, with window, R/S thermocouple type, mini male connector
 SMPW-T-M/N    Consult sales   EOL Replcement SMPW-T-M
† Price are shown in RMB.

 Note: Order male and female connector separately to create pairs.
   Part Number Builder
(1) (2) (3) (4)
-
-
-
-
Qty:
Option Descriptions
(1) Connector Body
  Select
SMPW for Glass-Filled Nylon w/Window
HMPW for Liquid Crystal Polymer w/Window
(2) Thermocouple Calibration
  Select
K for K Thermocouple
J for J Thermocouple
T for T Thermocouple
E for E Thermocouple
R/S for R/S Thermocouple
G for G Thermocouple
C for C Thermocouple
D for D Thermocouple
U for Uncompensated or B Thermocouple
N for N Thermocouple
(3) Connector Contacts
  Select
M for Male Connector Only
F for Female Connector Only
(4) ROHS
  Select
Nothing(leave field blank) for Non-ROHS
-ROHS for ROHS
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
