Instrument Air Filter Regulators
PRG300 Series
1 year warranty

Instrument Air Filter Regulators
PRG300 Series:Instrument Air Filter Regulators

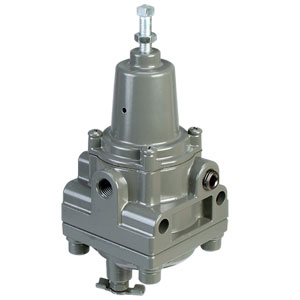

Click for larger image.

¥ 820.00  PRG300-30
• Compact Light Weight Construction
• Low Air Consumption
• Rugged Corrosion Resistant Design
• Direct, Pipe or Bracket Mounting
• 40 Micron Filter
• Built in Gauge Port and Bleed Valve

View related products - Valves, Regulators and I/P Converters

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

The PRG300 instrument air filter regulator is designed to provide clean, accurate pneumatic pressure to instruments, valves, and other automatic control equipment. This filter regulator has been proven to provide accurate operating characteristics under variable conditions. Durable materials and a standard epoxy paint finish provide long lasting corrosion resistance in harsh industrial environments.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 1/4 NPT Fittings
 PRG300-30 6 Weeks   ¥820.00    0 to 30 psi (0 to 2.1 bar) output pressure range
 PRG300-60 2 Weeks   ¥820.00    0 to 60 psi (0 to 4.1 bar) output pressure range
 PRG300-120 6 Weeks   ¥810.00    0 to 120 psi (0 to 8.3 bar) output pressure range
 1/2 NPT Fittings High Flow Rates
 PRG320-30 6 Weeks   ¥1,800.00    0 to 30 psi (0 to 2.1 bar) output pressure range
 PRG320-60 2 Weeks   ¥1,800.00    0 to 60 psi (0 to 4.1 bar) output pressure range
 PRG320-120 2 Weeks   ¥1,800.00    0 to 120 psi (0 to 8.3 bar) output pressure range
 Accessories
 PRG200-MB 2 Weeks   ¥134.00    Mounting Bracket
† Price are shown in RMB.

 Note: Each unit comes complete with operator's manual.
  Ordering Example: (1) PRG300-30 air filter regulator, 0 to 30 psi range, ¥820.00
