General Purpose RTD Probes with Stainless Steel Braided Fiberglass Insulated and Jacketed Cables |
| PRTF10-E-SB Series |
|
 |
|
|
|
|
|
|
|
| • |
Straight Probe Assembly, Cable Runs Directly to the Sensing Element (No Transition Fitting)
|
| • |
Contains a Precision 100 Ohm Class B DIN Platinum Thin Film Element
|
| • |
Temperature Range: -50 to 500ºC
|
| • |
Compact Design for Applications with Space Restrictions
|
| • |
Available in 1/4", 3/16", 4.5mm and 6mm Diameters in Various Lenghts (Note: Not Avaliable in 1/8" or 3mm Diameters)
|
| • |
2-, 3- or 4-Wire Fiberglass Insulated and Jacketed Cables with Stainless Steel Overbraid
|
| • |
All Sensors Supplied to IEC60751/ASTM E-1137 Color Codes
|
| • |
Also Available With PFA Insulated Cables (260ºC Maximum Temperature), Fiberglass Insulated and Jacketed Cables -GG) or Fiberglass Cables With BX Amored Hose (-BX). Fiberglass Cables have 500ºC Maximum Temperature, See Individual Product Sheets
|
View related products - Sensors and Transducers
|
| |
|
|
|
 |

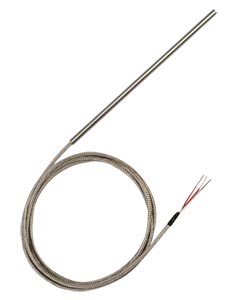

These general purpose Platinum RTD probes contain Omega's DIN Platinum thin film RTD elements connected directly to a fiberglass insulated, fiberglass jacketed, stainless steel overbraided cable without the need for extension wires or metal transition fittings. This design makes for a more compact and reliable probe where space limitations are a factor.
Note: This product is not available in 1/8" or 3mm probe diameters. If a 1/8" or 3mm diameter probe is required, the PRTF-11 with transition fitting or the PRTF10-E-BX with square locked metal hose are recommended.
For this product with a PFA insulated and jacketed cable
For this product with a fiberglass insulated and jacketed cable.
For this product with a fiberglass insulated cable and square locked hose.
|
|
|
|
|
|
† Price are shown in RMB.
Note:
Standard: To order probes in intermediate lengths (2" minimum), change length in model number and use next longer probe price. To order 2-wire sensors, change "-2" to "-1" in the model number at the same price. To order 4-wire sensors, change "-2" to "-3" in the model number and add $5 to the price. For probe lengths over 24", change length in model number and add $1 per inch of probe length. For cables longer than 40", add cable length to end of the model number and add $2.50 per foot.
Metric: To order probes in intermediate lengths (50 mm minimum), change length in model number and use next longer probe price. For probe lengths over 600 mm, change length in model number and add $1 per 25 mm of probe length. For cables longer than 1 m, add cable length to end of model number and add $7.50 per meter.
To order with shrink tube strain relief, specify “-ST” at the end of the model number at no additional charge. For MTP or OTP connectors, add “-MTP” or “-OTP” to model number and $8.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Probe Diameter
|
| |
Select
1/4 for 1/4 inch Diameter
3/16 for 3/16 inch Diameter
M60 for 6mm Diamater
M45 for 4.5mm Diamater
|
(2)
|
Sheath Length
|
| |
Select
6 for 6 inch Length
9 for 9 inch Length
12 for 12 inch Length
18 for 18 inch Length
24 for 24 inch Length
150 for 150mm Length
225 for 225mm Length
300 for 300mm Length
450 for 450mm Length
600 for 600mm Length
|
(3)
|
Connectors
|
| |
Select
Nothing(leave field blank) for Standard Unit
-MTP for Miniature 3-Prong Miniature Connectors (Flat Pins)
-OTP for Standard 3-Prong Connectors (Round Pins)
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
