Flush Diaphragm Pressure Transmitter
 |

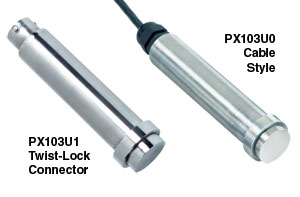

| Click for larger image. |
|
|
¥
6,725.00
PX103U1-050GI
|
| • |
All Stainless Steel
|
| • |
Low Noise 4-20 mA Output
|
| • |
Flush Diaphragm for Hard-to-Measure Fluids
|
| • |
Ideal for Tank and Level Applications
|
| • |
NIST Traceable Calibration Certificate Included
|
| • |
See Related Links Below for Cables and Accessories
|
View related products - Pressure Transducers
|
| |
|
|
|
 |
OMEGA’s PX103 Series
transmitters feature a rugged all
stainless steel case and a highreliability,
low-noise 4 to 20 mA
output. They are designed for
use in critical applications in
wastewater management, chemical
manufacturing, water processing,
tank and level operations, and other
industrial applications in which
a non-plugging flush diaphragm
is needed.
SPECIFICATIONS
4 to 20 mA OUTPUT
Excitation: 10 to 30 Vdc
Output: 4 to 20 mA
Zero Balance: 4 mA ±0.2 mA
Accuracy:
<100 psi: ±1% linearity, hysteresis and repeatability combined
≥100 psi: ±0.5% linearity, hysteresis and repeatability combined
Operating Temp Range:
<100 psi: -40 to 82°C (-40 to 180°F)
≥100 psi: -46 to 121°C (-50 to 250°F)
Compensated Temp Range:
<100 psi:-1 to 54°C (30 to 130°F)
≥100 psi: -18 to 66°C (0 to 150°F)
Thermal Effects:
<100 psi:
Span: <±2% within compensated range
Zero: <±1% within compensated range
≥100 psi:
Span: 0.003% rdg/°F
Zero: 0.0045% FS/°F
Proof Pressure:
<100 psi: 200% of rated pressure
≥100 psi: 150% rated pressure, 30,000 psi maximum
Burst Pressure:
<100 psi: 500% of rated pressure
≥100 psi: 300% of rated pressure, 50,000 psi maximum
Wetted Parts:
Ranges <100 psi: 316 stainless steel
Ranges ≥100 psi: 17-4 PH stainless steel
Pressure Port: Flush diaphragm
O-Ring: Not included #2-018
Electrical Connection: PTIH-10-6P or equal
Optional Connection: 3 m (10') 2-conductor shielded PVC cable
Mating Connector: PT06F-10-6S (not included)
|
|
|
|
|
|
† Price are shown in RMB.
Ordering Example: (1) PT06F10-6S mating connector (sold separately), ¥326.00, plus (1) PX103U1-050GI is a 0-50 psig, connector style, flush diaphragm transducer, ¥6,725.00, ¥326.00 + 6,725.00 = $7,051.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Style
|
| |
Select
0 for Cable Style
1 for Connector Style
|
(2)
|
Range (psig)
|
| |
Select
050 for 0-50
100 for 0-100
200 for 0-200
500 for 0-500
1K for 0-1000
2K for 0-2000
3K for 0-3000
5K for 0-5000
10K for 0-10000
15K for 0-15000
20K for 0-20000
|
(3)
|
Output
|
| |
Select
G5V for 0 to 5 volt output
GI for 4 to 20 mA output
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
