General Purpose All Stainless Steel Transducers with Silicon Technology

PX309/PX319/PX329/PX359 Series

PX309/PX319/PX329/PX359 Series:General Purpose All Stainless Steel Transducers with Silicon Technology

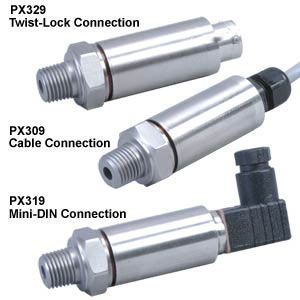

Click for larger image.

^¥ 2,260.00 PX309-100GV

•	1, 2 & 5 psi Low Pressure Ranges!
•	All Stainless Steel Construction
•	Gage, Absolute, Compound Gage or Vacuum Pressure
•	Rugged Solid State Design
•	High Stability, Low Drift
•	0.25% Static Accuracy
•	IP65 Protection Class
View related products - Pressure Transducers

OMEGA’s PX309 Series Stainless Steel Pressure transducers below 100 psi use a high accuracy silicon sensor protected by an oil-filled stainless steel diaphragm. Units 100 psi and above use silicon strain gages molecularly bonded to the stainless steel diaphragm.

We provide a complete range of services—from product inception, through design and prototypes, to manufacturing and testing. Our application engineers work closely with our customers to customize, design or create entirely new products. Call us—whether you’re an OEM, manufacturer, or end user.

The PX309 is also available in Metric configurations; please see the PXM309 for complete details, or contact our Pressure department for more information.

Common Specifications
Ranges: -15 to 50 psig, 0 to 1000 psia, 100 to 10,000 psig
Accuracy (Combined Linearity, Hysteresis and Repeatability): ±0.25% BSL, max
Minimum Resistance Between Transducer Body and Any Wire: 1M Ω @ 25 Vdc
Calibration: In vertical direction with fitting down,positive outputs only
Pressure Cycles: 10 million, minimum
Pressure Overload: -15 to 50 psig and 0 to 1000 psia: 3 times rated pressure or 20 psi whichever is greater, 100 to 10,000 psig: 2 times rated pressure
Burst Pressure: -15 to 50 psig and 0 to 1000 psia: 4 times rated pressure or 25 psi whichever is greater, 100 to 10,000 psig: 5 times rated pressure
Long Term Stability (1 Year): ±0.25% of FS, typical
Operating Temperature: -40 to 85°C (-40 to 185°F)
Pressure Port: ¼-18 MNPT
Pressure Port Material: -15 to 50 psig and 0 to 1000 psia: 316 SS, 100 to 10,000 psig: SS 316 or 17-4
Bandwidth: DC to 1 kHz (typical)
CE: Compliant
Shock: 50 g, 11 ms half-sine
Vibration: ±20 g
Response Time: <1 millisecond
Weight:
PX309: 154 g (5.4 oz)
PX319/329/359: 100 g (3.5 oz)
IP Rating: IP65

PLEASE REFER TO "SPECS" FOR ADDITIONAL SPECIFICATIONS FOR EACH OUTPUT (mV, 0 to 5 Vdc and 4 to 20 mA)

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

SAMPLING OF POPULAR MODELS SHOWN RANGES FROM -15 TO 10,000 PSI AVAILABLE --- FOR ALL CONFIGURATIONS SEE PART NUMBER BUILDER BELOW


mV Output Models

PX309-015VV	3 Weeks	¥3,415.00	Ambient to -15 psi (negative gage vacuum), mV/V Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-015CGV	2 Weeks	¥3,435.00	-15 to +15 psi (compound gage), mV/V Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-015GV	2 Weeks	¥2,385.00	15 psig, mV/V Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-030GV	2 Weeks	¥2,385.00	30 psig, mV/V Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-100GV	2 Weeks	¥2,260.00	100 psig, mV/V Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-300GV	3 Weeks	¥2,260.00	300 psig, mV/V Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-500GV	3 Weeks	¥2,385.00	500 psig, mV/V Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-1KGV	3 Weeks	¥2,385.00	1000 psig, mV/V Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-3KGV	3 Weeks	¥2,260.00	3000 psig, mV/V Output Transducer with 1.5 m (5 ft cable)	qty.


5 Vdc Output Models

PX309-015V5V	3 Weeks	¥3,250.00	Ambient to -15 psi (negative gage vacuum), 5 Vdc Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-015CG5V	2 Weeks	¥3,435.00	-15 to +15 psi (compound gage), 5 Vdc Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-V050G5V	3 Weeks	¥3,250.00	-15 to 50 psi, 5 Vdc Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-015G5V	2 Weeks	¥3,070.00	15 psig, 5 Vdc Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-030G5V	2 Weeks	¥2,910.00	30 psig, 5 Vdc Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-V100G5V	2 Weeks	¥3,250.00	-15 to 100 psi, 5 Vdc Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-V150G5V	2 Weeks	¥3,435.00	-15 to 150 psi, 5 Vdc Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-100G5V		¥2,910.00	100 psig, 5 Vdc Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-300G5V	3 Weeks	¥2,910.00	300 psig, 5 Vdc Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-500G5V		¥2,910.00	500 psig, 5 Vdc Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-1KG5V		¥2,910.00	1000 psig, 5 Vdc Output Transducer with 1.5 m (5 ft cable)	qty.

PX359-5KG5V	2 Weeks	¥3,135.00	5000 psig, 5 Vdc Output Transducer with M12 Connector	qty.

PX309-3KG5V		¥2,910.00	3000 psig, 5 Vdc Output Transducer with 1.5 m (5 ft cable)	qty.

PX319-015CG5V	3 Weeks	¥3,435.00	-15 to +15 psi (compound gage), 5 Vdc Output Transducer with micro-DIN Connector	qty.

PX319-V050G5V	3 Weeks	¥3,415.00	-15 to 50 psi, 5 Vdc Output Transducer with micro-DIN Connector	qty.

PX319-V100G5V	3 Weeks	¥3,415.00	-15 to 100 psi, 5 Vdc Output Transducer with micro-DIN Connector	qty.

PX319-2KG5V		¥3,055.00	2000 psig, 5 Vdc Output Transducer with micro-DIN Connector	qty.


4 to 20 mA Output Models

PX309-015VI	2 Weeks	¥3,435.00	Ambient to -15 psi (negative gage vacuum), mA Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-015CGI	3 Weeks	¥3,250.00	-15 to +15 psi (compound gage), mA Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-015GI	20 Weeks	¥2,910.00	15 psig, mA Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-030GI	2 Weeks	¥2,910.00	30 psig, mA Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-V050GI		¥3,250.00	-15 to 50 psig, mA Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-V100GI	3 Weeks	¥3,250.00	-15 to 100 psig, mA Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-V150GI	3 Weeks	¥3,435.00	-15 to 150 psig, mA Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-100GI	2 Weeks	¥2,910.00	100 psig, mA Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-300GI	2 Weeks	¥2,910.00	300 psig, mA Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-500GI	2 Weeks	¥2,910.00	500 psig, mA Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-1KGI	2 Weeks	¥3,070.00	1000 psig, mA Output Transducer with 1.5 m (5 ft cable)	qty.

PX309-3KGI	2 Weeks	¥2,910.00	3000 psig, mA Output Transducer with 1.5 m (5 ft cable)	qty.

PX319-015CGI	2 Weeks	¥3,250.00	-15 to +15 psi (compound gage), mA Output Transducer with micro-DIN Connector	qty.

PX319-V100GI	2 Weeks	¥3,435.00	-15 to 100 psig, mA Output Transducer with micro-DIN Connector	qty.

PX319-V150GI	2 Weeks	¥3,435.00	-15 to 150 psig, mA Output Transducer with micro-DIN Connector	qty.

PX359-100GI	2 Weeks	¥3,315.00	100 psig, mA Output Transducer with M12 Connector	qty.

PX359-150GI	2 Weeks	¥3,135.00	150 psig, mA Output Transducer with M12 Connector	qty.

PX359-200GI	3 Weeks	¥3,315.00	200 psig, mA Output Transducer with M12 Connector	qty.

PX359-10KGI	2 Weeks	¥3,315.00	10,000 psig, mA Output Transducer with M12 Connector	qty.


ACCESSORIES

CAL-3		Consult sales	Recalibration with 5 point NIST traceable documentation	qty.

CX5302	5 Weeks	¥292.00	Extra 9.4 mm mini-DIN connector for PX319 models	qty.

PT06V-10-6S		Consult sales	Vented twist lock connector for gage or absolute pressure PX329 models	qty.

CA-329-4PC24-005-R		Consult sales	4-conductor mating twist-lock 6 pin connector with 1.5 m (5') cable for PX329	qty.

PT06F10-6S		¥326.00	non-Vented twist lock connector for absolute pressure PX329 models	qty.

CA-359-4PC22-2M	4 Weeks	¥825.00	2 m (6') vented cable with M12 connector for PX359 for gage ranges <100 psi	qty.

CA-359-4PC22-5M	4 Weeks	¥1,185.00	5 m (16') vented cable with M12 connector for PX359 for gage ranges <100 psi	qty.

M12C-PVC-4-S-F-5		¥195.00	5 m (16') PVC cable, straight 4-pin M12 female connector one end, flying leads one end, for all PX359 absolute range and gage ranges >100 psi	qty.

DP8PT		¥2,815.00	4-digit meter for both mV/V and amplified PX3*9 models	qty.

DP25B-S	4 Weeks	¥3,525.00	4-digit strain meter for mV/V PX3*9 models	qty.

DP25B-E	7 Weeks	¥3,525.00	4-digit process meter for amplified PX3*9 models	qty.

† Price are shown in RMB.

Note: Comes complete with 5-point NIST-traceable calibration.
Notes: 1. Units 100 psig and above may be subjected to vacuum on the pressure port without damage. 2.
For alternative performance specifications to suit your application, contact Engineering.
Ordering Example: (1) PX309-100GV 100 psig range, mV/V output, cable termination, ¥2,260.00

Part Number Builder

	(1)		(2)	(3)
P P X X 3 3		9 9 - -
Qty:

Option Descriptions

(1)

Electrical Connection

Select
0 for 1.5 m (5’) Cable
1 for micro-DIN Connector
2 for Twist-Lock Connector
5 for M12 Connector

(2)

Range

Select
005A for o to 5 psia - ABSOLUTE PRESSURE
015A for 0 to 15 psia
030A for 0 to 30 psia
050A for 0 to 50 psia
100A for 0 to 100 psia
200A for 0 to 200 psia
300A for 0 to 300 psia
500A for 0 to 500 psia
1KA for 0 to 1000 psia
001G for 0 to 1 psig - GAGE PRESSURE
002G for 0 to 2 psig
005G for 0 to 5 psig
015G for 0 to 15 psig
030G for 0 to 30 psig
050G for 0 to 50 psig
100G for 0 to 100 psig
150G for 0 to 150 psig
200G for 0 to 200 psig
300G for 0 to 300 psig
500G for 0 to 500 psig
1KG for 0 to 1000 psig
2KG for 0 to 2000 psig
3KG for 0 to 3000 psig
5KG for 0 to 5000 psig
7.5KG for 0 to 7500 psig
10KG for 0 to 10000 psig
015V for Ambient to -15 psi (negative gage vacuum) - VACUUM GAGE
015CG for -15 to 0 to 15 psi - COMPOUND GAGE
V030G for -15 to 30 psi
V050G for -15 to 50 psi
V100G for -15 to 100 psi
V150G for -15 to 150 psi

(3)

Output

Select
V for mV/V Output
5V for 0 to 5 Vdc Output
I for 4 to 20 mA Output

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
