All Stainless Steel
Transducer/Transmitter
Multimedia Compatibility
High-Performance Silicon Technology - Metric Models |
| PXM309 Series |
|
 |
|
|
|
|
|
¥
2,760.00
PXM309-007G10V
|
| • |
5-Point Traceable Calibration Certificate
|
| • |
High Accuracy, ±0.25% FS BSL (Linearity, Hysteresis and Repeatability)
|
| • |
1% Total Error Band on Most Ranges
|
| • |
Reverse Polarity and Over Voltage Protected
|
| • |
-40 to 85°C (-40 to 185°F) Operating Temperature
|
| • |
0 to 10 Vdc or 4 to 20 mA Output
|
| • |
Terminations: Cable, mini DIN or M12 Connector
|
| • |
G ¼ Male Pressure Fitting
|
| • |
IP65 Environmental Rating
|
View related products - Pressure Transducers
|
| |
|
|
|
 |
Omega’s PXM309 Series industrial
pressure transducers utilize two
of our precision manufacturing
techniques. Low pressure ranges
from 70 mb to 3.5 bar, and absolute
ranges to 20 bar use a precision
micromachined silicon sensor
protected by a stainless steel
diaphragm. A thin film of oil transfers
the pressure and assures the
high accuracy and stability of
the sensor. Medium and high
gage pressure ranges, from
7 bar up to 700 bar, use precision
semiconductor strain gages that
are fused directly to the stainless
steel diaphragm yielding a rugged,
durable bond that assures long
life and high stability. These
precision techniques produce
an accuracy of 0.25% FS BSL
@25°C and a total error band of
1% on most ranges. The PXM309
Series transducers are available
in absolute, or gage (relative)
pressure and are sealed to an
IP65 environmental rating.
The PXM309 is also available in Imperial configurations; please see the PX309 for complete details, or contact our Pressure department for more information.
SPECIFICATIONS
Supply Voltage
Reverse polarity and
over voltage protected
0 to 10 Vdc Output: 15 to 30 Vdc
at 10 mA
4 to 20 mA: 9 to 30 Vdc
Static Accuracy 350 mB to 700 bar:
±0.25% FS BSL at 25°C (includes
linearity, hysteresis and repeatability)
Long Term Stability (1 yr): ±0.25% FS
Total Error Band*
70 mB ±4.5% gage
140 mB ±3% gage
350 mB ±1.5% gage and absolute
1 to 20 bar ±1% absolute
1 to 700 bar ±1% gage
Note*: Total error band includes all
accuracy errors, thermal errors, span
and zero tolerances.
Isolation (Body to Any Lead):
1 M Ω at 25 Vdc
Pressure Cycles: 1 x 107 full
scale cycles
Pressure Overload
70 mB to 3.5 bar Gage: 3 x rated
pressure or 1.38 bar whichever
is greater
350 mB to 20 bar Absolute: 3 x rated
pressure or 1.38 bar whichever
is greater
7 to 700 bar Gage: 2 x rated
pressure
Burst Pressure
70 mB to 3.5 bar Gage: 5 x rated
pressure or 1.72 bar whichever
is greater
350 mB to 20 bar Absolute: 5 x rated
pressure or 1.72 bar whichever
is greater
7 to 700 bar Gage: 5 x rated pressure
Compensated Temperature
70 to 350 mbar Gage/Abs: 0 to 50°C
(32 to 122°F)
1 to 700 bar Gage: -20 to 85°C
(-4 to 185°F)
1 to 20 bar Absolute: -20 to 85°C
(-4 to 185°F)
Operating Temperature: -40 to 85°C
(-40 to 185°F)
Response Time: 1 mS
Bandwidth: DC to 1 kHz type
Pressure Connection: G ¼ Male
Wetted Parts
70 mB to 3.5 bar Gage: 316 SS
350 mB to 20 bar Absolute: 316 SS
7 to 700 bar Gage: 17-4PH SS
CE Compliant: EC55022, EC55011
Emissions Class A&B
IEC: 61000-2,-3,-4,-5,-6,&-9
Shock: 50 g 11 mSec half sine shock
Vibration: ± 20 g

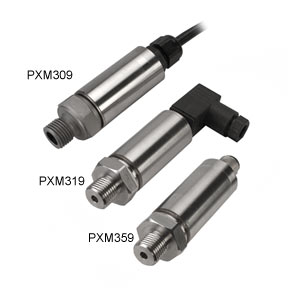

Electrical Connections
PXM309: 1.5 m (5') 2 or 3-conductor
cable, mA or 10V outputs, respectively
PXM319: mini DIN connector with
mating connector included
PXM359: M12 4-pin connector
Weight: Typical 150 g (5.3 oz)
depending upon configuration
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with 5-point traceable calibration certificate.
Change “10V” for 0 to 10 Vdc output to “I” for 4 to 20 mA output.
M12 models require vented cable with gage units below 70 bar.
Ordering Example: (1) PXM309-0.35G10V is a cable model, 350 mbar range, gage pressure, 0 to 10 Vdc output, ¥3,110.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Model
|
| |
Select
PXM309 for Cable model
PXM319 for Mini DIN model
PXM359 for M12 model
|
(2)
|
Pressure
|
| |
Select
-0.35A for Absolute 350 mbar
-001A for Absolute 1 bar
-002A for Absolute 2 bar
-3.5A for Absolute 3.5 bar
-007A for Absolute 7 bar
-015A for Absolute 15 bar
-020A for Absolute 20 bar
-0.07G for Gage 70 mbar
-0.14G for Gage 140 mbar
-0.35G for Gage 350 mbar
-001G for Gage 1 bar
-002G for Gage 2 bar
-3.5G for Gage 3.5 bar
-007G for Gage 7 bar
-010G for Gage 10 bar
-015G for Gage 15 bar
-020G for Gage 20 bar
-035G for Gage 35 bar
-070G for Gage 70 bar
-140G for Gage 140 mbar
-200G for Gage 200 bar
-350G for Gage 350 bar
-500G for Gage 500 bar
-700G for Gage 700 bar
-001V for Vacuum 0 to -1 bar
-001CG for Compound Gage -1 to 0 to +1 bar
-V002G for Compound Gage -1 to 2 bar
-V3.5G for Compound Gage -1 to 3.5 bar
-V007G for Compound Gage -1 to 7 bar
-V010G for Compound Gage -1 to 10 bar
|
(3)
|
Output
|
| |
Select
10V for 0 to 10 Vdc output
I for 4 to 20 mA
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
